1. GENERAL INFORMATION
1-1
Symbols and marks………………….1-1 Torque values……………………….1-8
General safety…………………………1-2 Cables and harness routing………1-10
Service precautions………………….1-3 Troubleshooting…………………….1-11
Specifications…………………………1-5 Lubrication points…………………..1-15

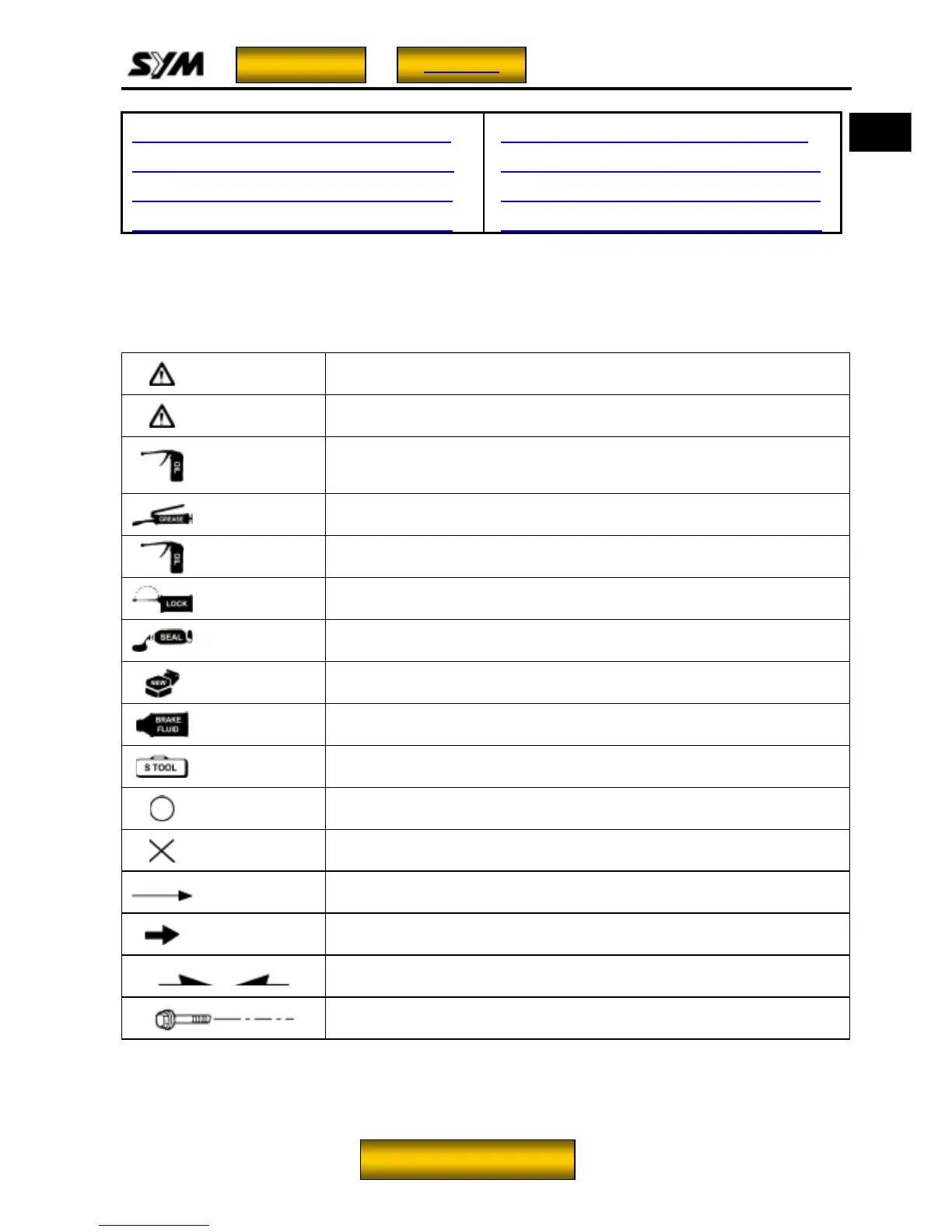

Symbols and Marks
Symbols and marks are used in this manual to indicate what and where the special service are
needed, in case supplemental information is procedures needed for these symbols and marks,
explanations will be added to the text instead of using the symbols or marks.
Warning
Means that serious injury or even death may result if procedures are not
followed.
Caution
Means that equipment damages may result if procedures are not
followed.
Engine oil
Limits to use SAE 20 JASO FC class oil. Warranty will not cover the
damage that caused by not apply with the limited engine oil.
(Recommended oil: MAX-2 serial oils)
Grease King Mate G-3 is recommended.
Gear oil
King Mate gear oil serials are recommended. (Bramax HYPOID GEAR
OIL # 140)
Locking sealant
Apply sealant, medium strength sealant should be used unless
otherwise specified.
Oil seal Apply with lubricant.
Renew Replace with a new part before installation.
Brake fluid Use recommended brake fluid DOT3 or WELLRUN brake fluid.
Special tools Special tools.
correct Meaning correct installation.
wrong Meaning wrong installation.
Indication Indication of components.
directions Indicates position and operation directions.
Components assembly directions each other.
Indicates where the bolt installation direction, --- means that bolt cross
through the component (invisibility).
1
