17.ELECTRICAL SYSTEM
17-12

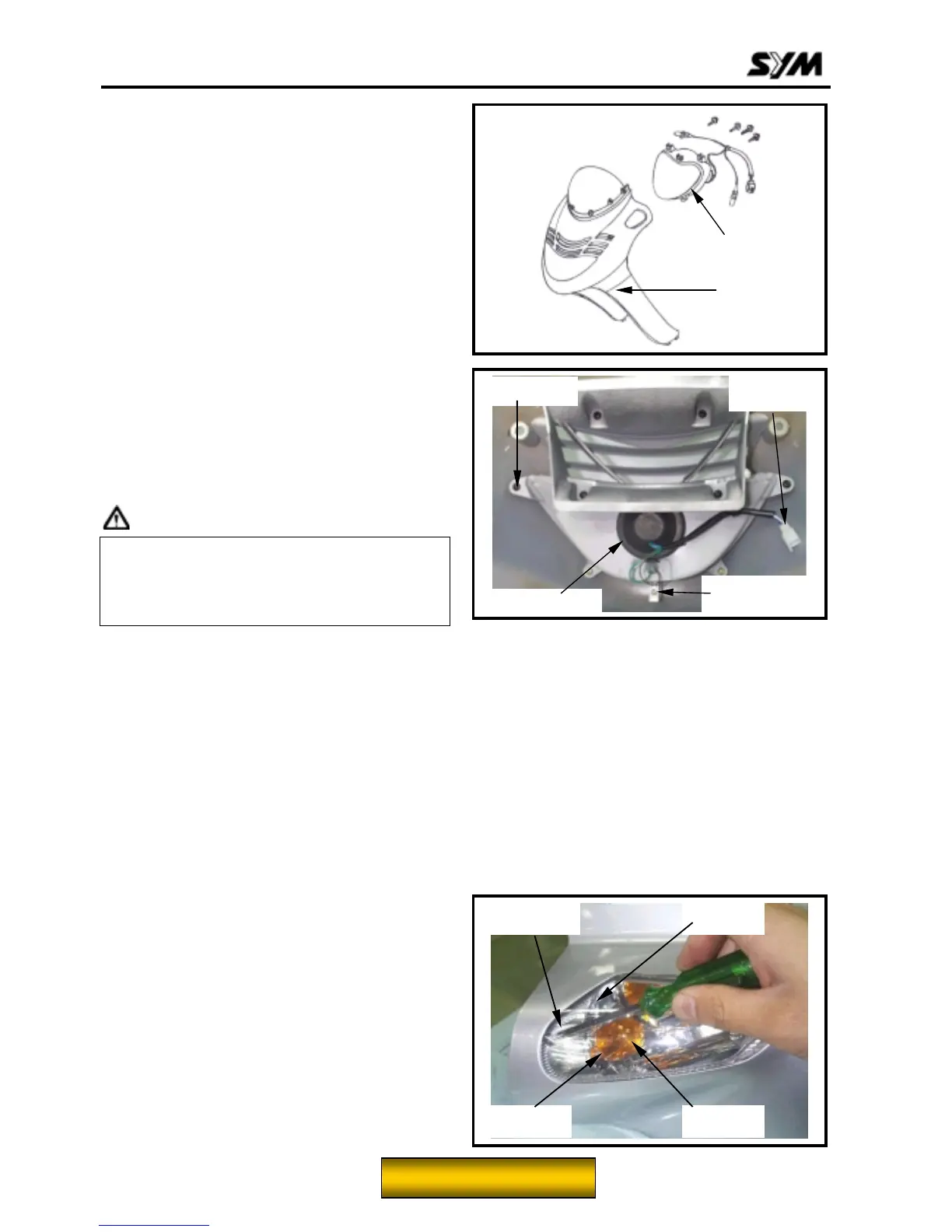

Lamp/Bulb
Replacing Bulb for Headlamp
Loosen the front cover (bolt x 2, screw x 8).
Disconnect the terminal connector and the
rubber sleeve from the headlamp.
Remove the bulb spring holder and the bulb.
Replace with new bulb if necessary.
Caution
Install the bulb of the headlamp in reverse order
of removal.
Upon completion of replacement, turn on the
main switch to ensure the headlamp works well.
Adjust the beam and distance of the headlamp if
necessary.
Replacing the Front winker light Bulb
Loosen fixing screws and remove the lamp lens
(screw x 2).
Replace with new front winker light bulb.
z Never touch the bulb with finger, which
will create a heat point.
z Clean the fingerprint left on the bulb with
alcohol.
screw
×
××
×
4
Headlamp
terminal
Headlamp
adjust screw
頭燈調整螺絲
頭燈調整螺絲頭燈調整螺絲
頭燈調整螺絲
Rubber sleeve
Headlamp assembly
Front cover
螺絲
螺絲螺絲
螺絲
×
××
×
2
螺絲
螺絲螺絲
螺絲
×
××
×
1
內燈罩
內燈罩內燈罩
內燈罩
外燈罩
外燈罩外燈罩
外燈罩
