8. V-BELT DRIVING SYSTEM/KICK STARTER
8-9

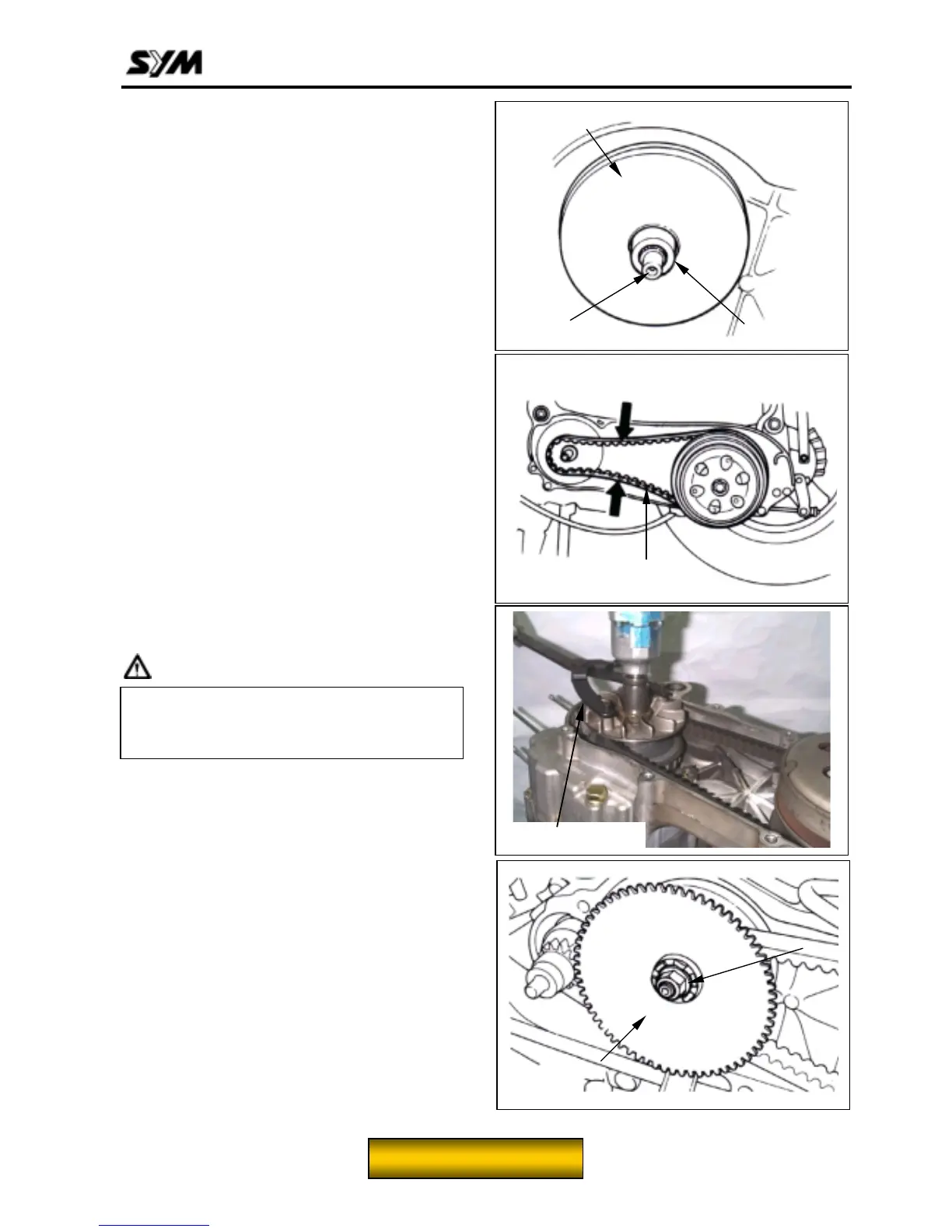

Install movable drive face comp. onto crankshaft.
Driven pulley installation
Press driving belt into pulley groove, and then
pull the belt onto drive shaft.
Install driven pulley, washer and nut.
Caution
Hold crankshaft with universal holder.
Tighten nut to specified torque.
Torque value: 5.0-6.0 kg-m
Install left crankcase cover.
Make sure that two sides of pulley surfaces
have to be free of grease. Clean it with
cleaning solvent.
Crankshaft
Drive face
boss
Movable drive face
Driving belt
Press down
Nut
Drive face
Universal holder
