1. General Information
To this chapter contents

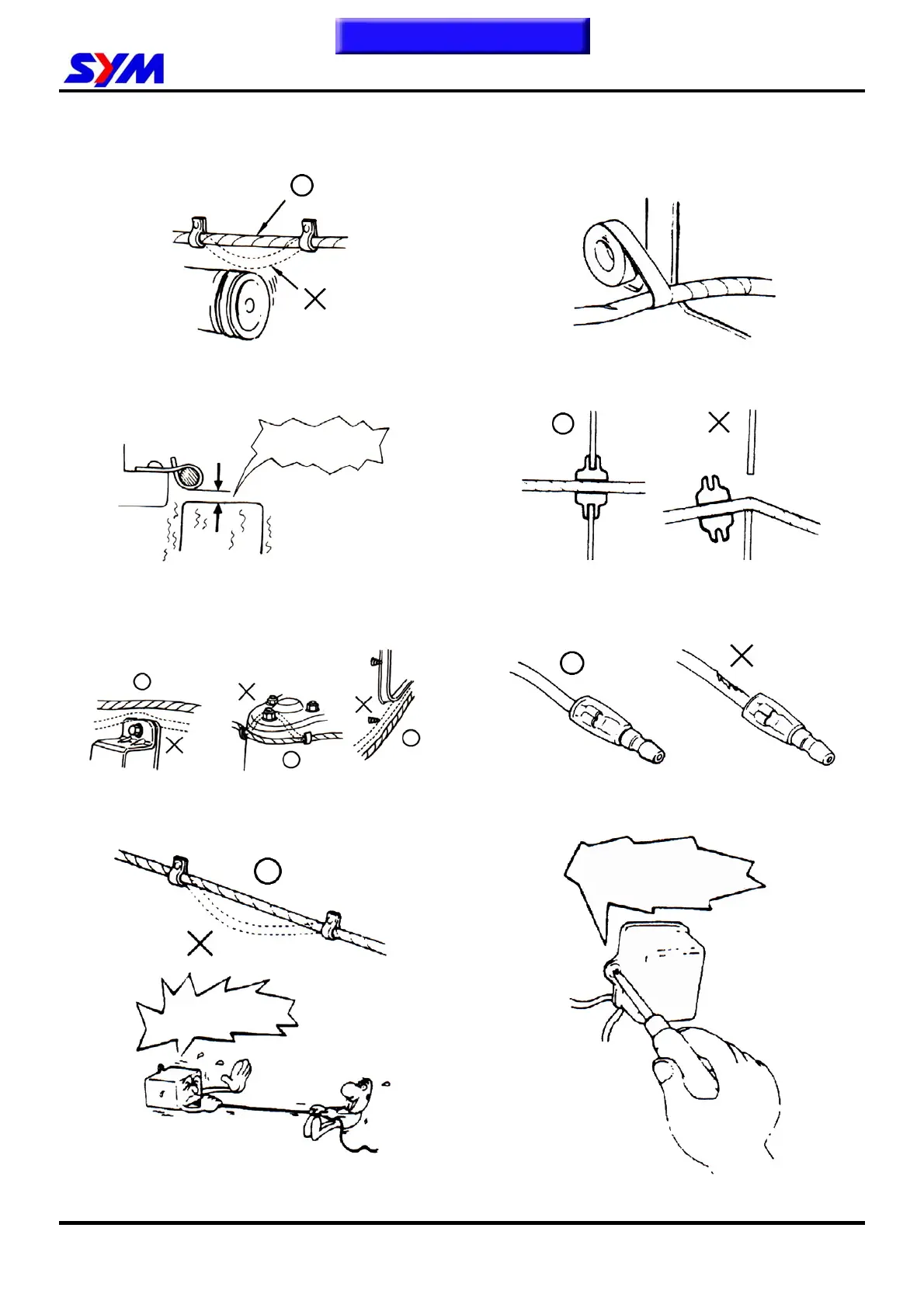

y Do not let the wire harness contact with rotating,
moving or vibrating components when routing
the harness.
1-7
y Keep wire harnesses far away from the hot
parts.
y Avoid wire harnesses from sharp edges or
corners, and also avoid the jutted-out ends of
bolts and screws.
y Route harnesses so that they neither pull too
tight nor have excessive slack.
y Protect wires or wire harnesses with electrical
tape or tube if they contact a sharp edge or
corner. Thoroughly clean the surface where
tape is to be applied.
y Secure the rubber boot firmly as applying it on
wire harness.
Never Touch
y Never use wires or harnesses which insulation
has been broken. Wrap electrical tape around
the damaged parts or replace them.
y Never clamp or squeeze the wire harness when
installing other components.
Never clamp or
squeeze the wire
harness
Never too tight
