12. Rear Wheel / Rear Cushion
12-6

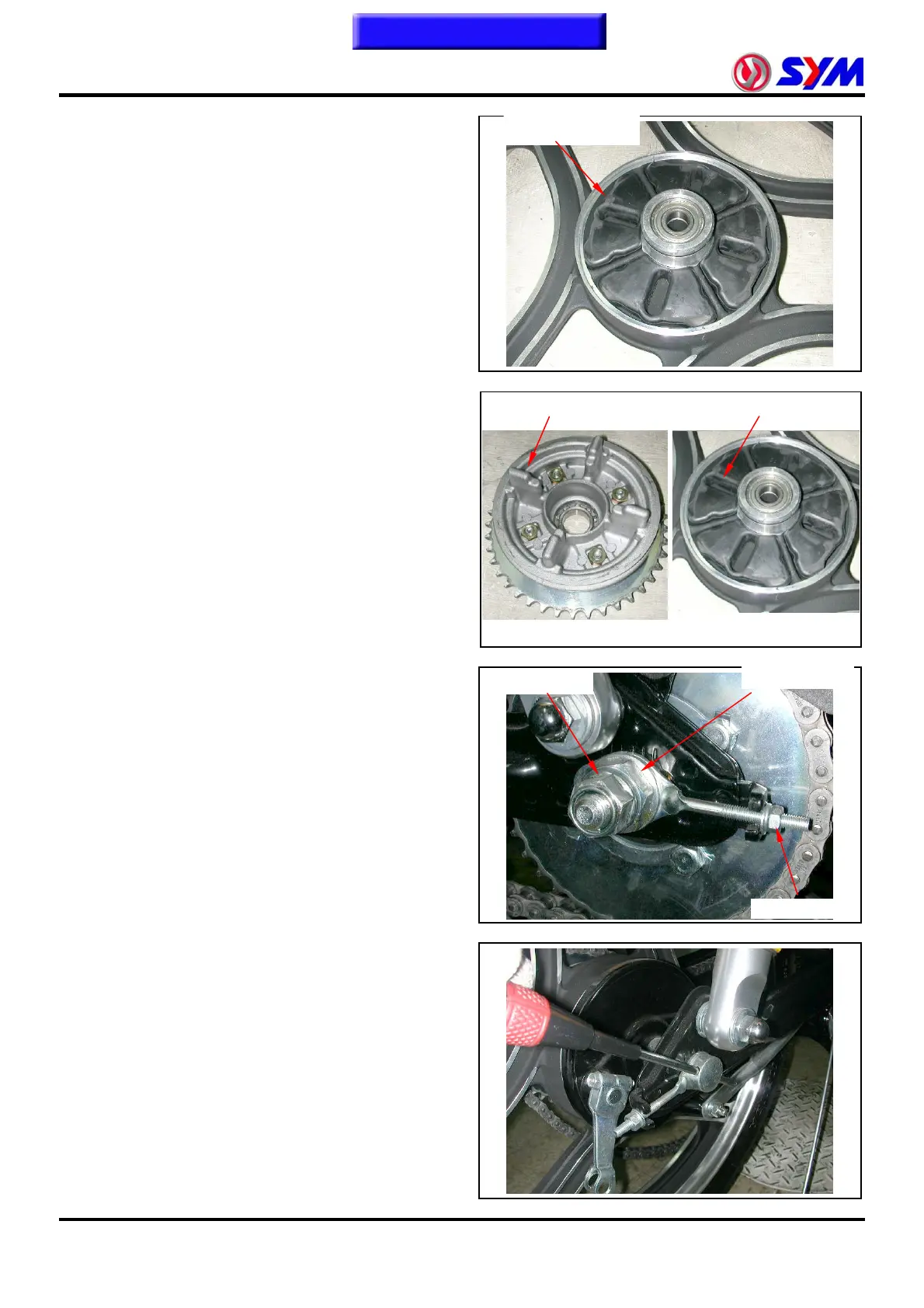

Driven flange rubber damper inspection
Rubber damper×4
Inspect the rubber dampers on the driven
flange for wear or damage.
Replace it if necessary.
Rear wheel installation
Install the rear brake panel into the brake
drum.
Align the groove on the rubber damper with
the raised part on the driven flange.
Install the rear wheel.
Install the side collar and insert the rear wheel
axle.
Adjust the drive chain slack.
Tighten the rear flange locknut.
Torque value：6.0~7.0kgf-m
Insert a screw driver into the rear wheel axle
and fix the axle.
Tighten the rear wheel axle locknut.
Torque value：10.0~12.0kgf-m
Raised part
Groove
Flange locknut
Alxe locknut
