13. Electrical System
13-9

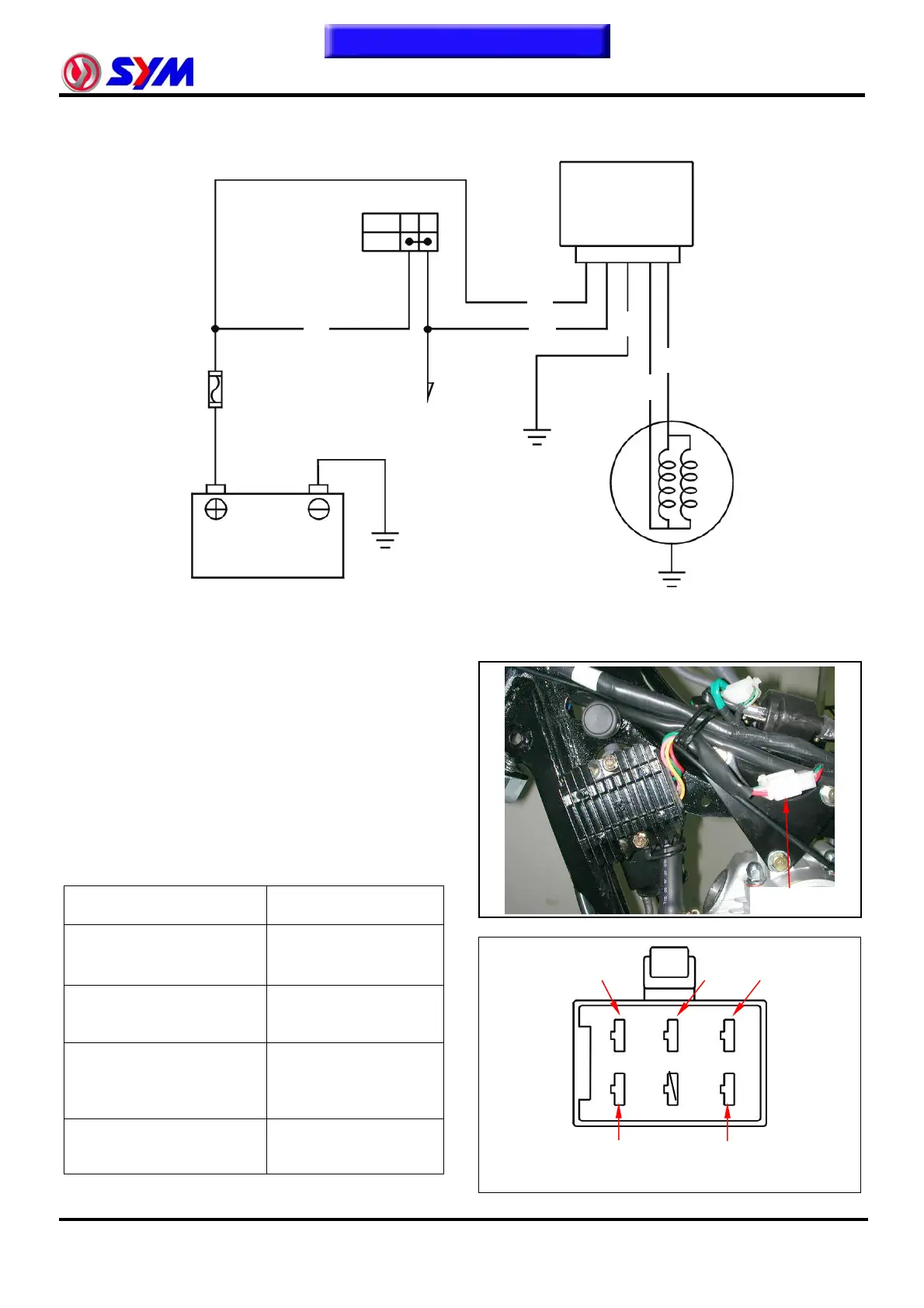

Charging circuit
Regulator rectifier inspection
Remove the seat and fuel tank.
Disconnect the regulator rectifier 6 pin coupler
and inspect the wire circuit.
Wire harness circuit inspection
Item (wire color) Judgment
Battery (red) / frame
grounding
Battery voltage
Earth (green) / frame
grounding
Close circuit
Main switch (black) /
frame grounding (Key
ON)
Battery voltage
Charge coil (yellow) /
(pink)
Close circuit with
resistance
AC Generator
Regulator rectifier
保險絲(15A)
Battery
R
B
P
G
ON
Y
Coupler
Main switch
OFF
R
G
P
R
Y
B
