Sym PA12B User Manual

13. Electrical System
13-10
If the readings measured are not normal,
check parts in the circuit.
If the parts are normal, then trouble is in the
wiring.
If there is nothing wrong with parts and wiring,
replace the regulator rectifier.

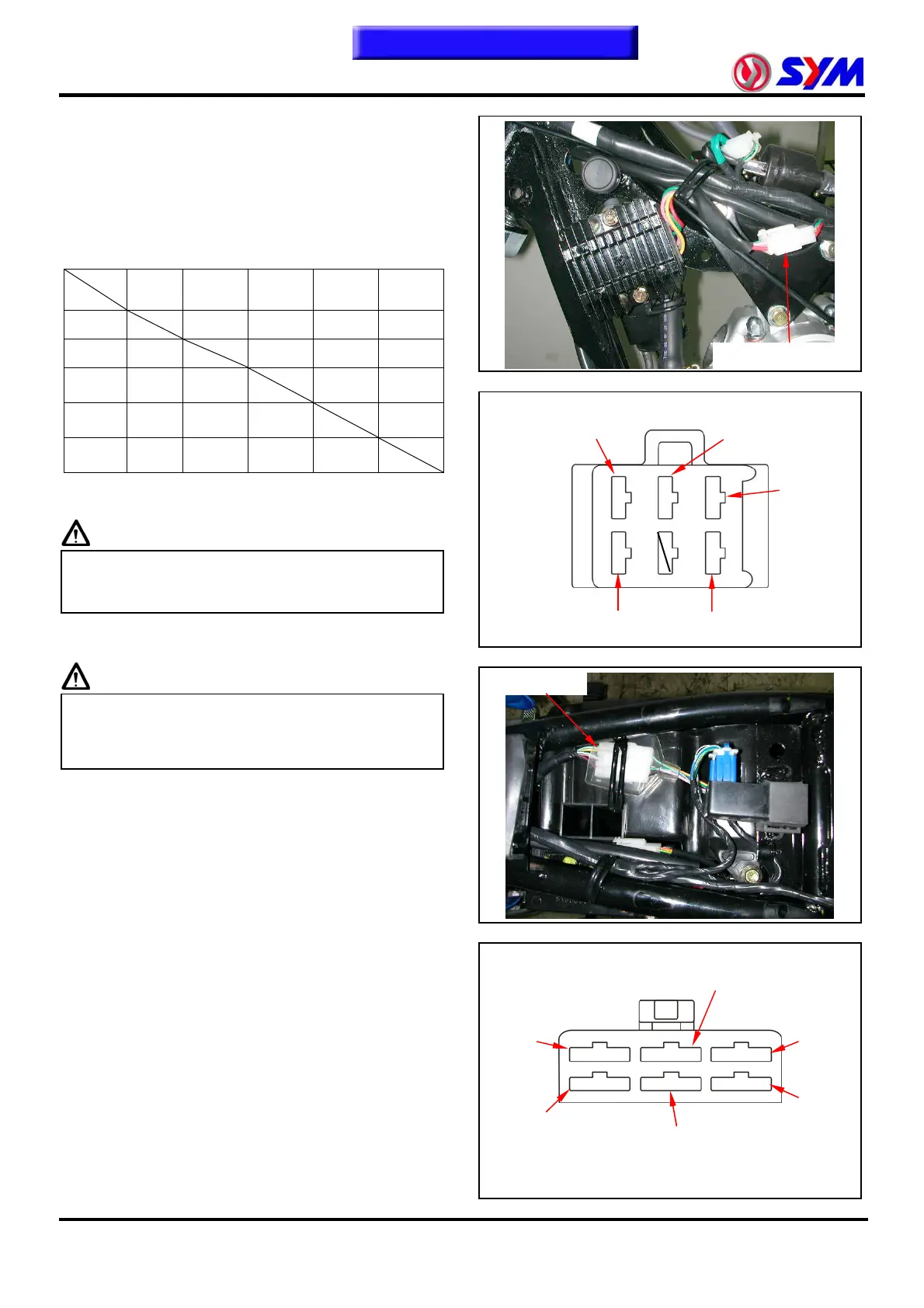

Regulator rectifier inspection
(+)
(-)
Black Green Yellow Red Pink
Black
29.3 KΩ 1.3 MΩ 2.1 MΩ 1.2 MΩ
Green
29.3KΩ 1.3 MΩ 2 MΩ 1.2 MΩ
Yellow
15.5M
Ω
15.5 MΩ 1.2 MΩ 15.3 MΩ
Red
18.9 M
Ω
18.9 MΩ 16.8 MΩ
18.4 MΩ
pink
10.5 M
Ω
10 .5MΩ 10 MΩ 1.3 MΩ
Replace the regulator rectifier if the resistance
value is abnormal.
Caution
z Human body has resistor. Do not touch
the multi meter probe metal or the
measured value would be affected.
AC Generator coil inspection
Caution
z The inspection of AC Generator charge
coil / lamp coil can be proceeded on the
engine.
Measure the resistor value between AC.
Generator wiring.
Disconnect AC Generator 6 pin coupler.
The following wire should be closed circuit.
Standard value：
Yellow - pink 0.9Ω±10%
Black / red - ground 420Ω±10%
Green / white – blue / white 105Ω±10%
Light green / red (neutral switch)
Replace the AC. Generator coil if the
measured value is over the standard value.
G
P
R
Y
B
ACG coupler
Y
LG / R
P
B / R
L / W
G / W
Reg. rec. coupler
