Lubrication / Clutch / Transmission

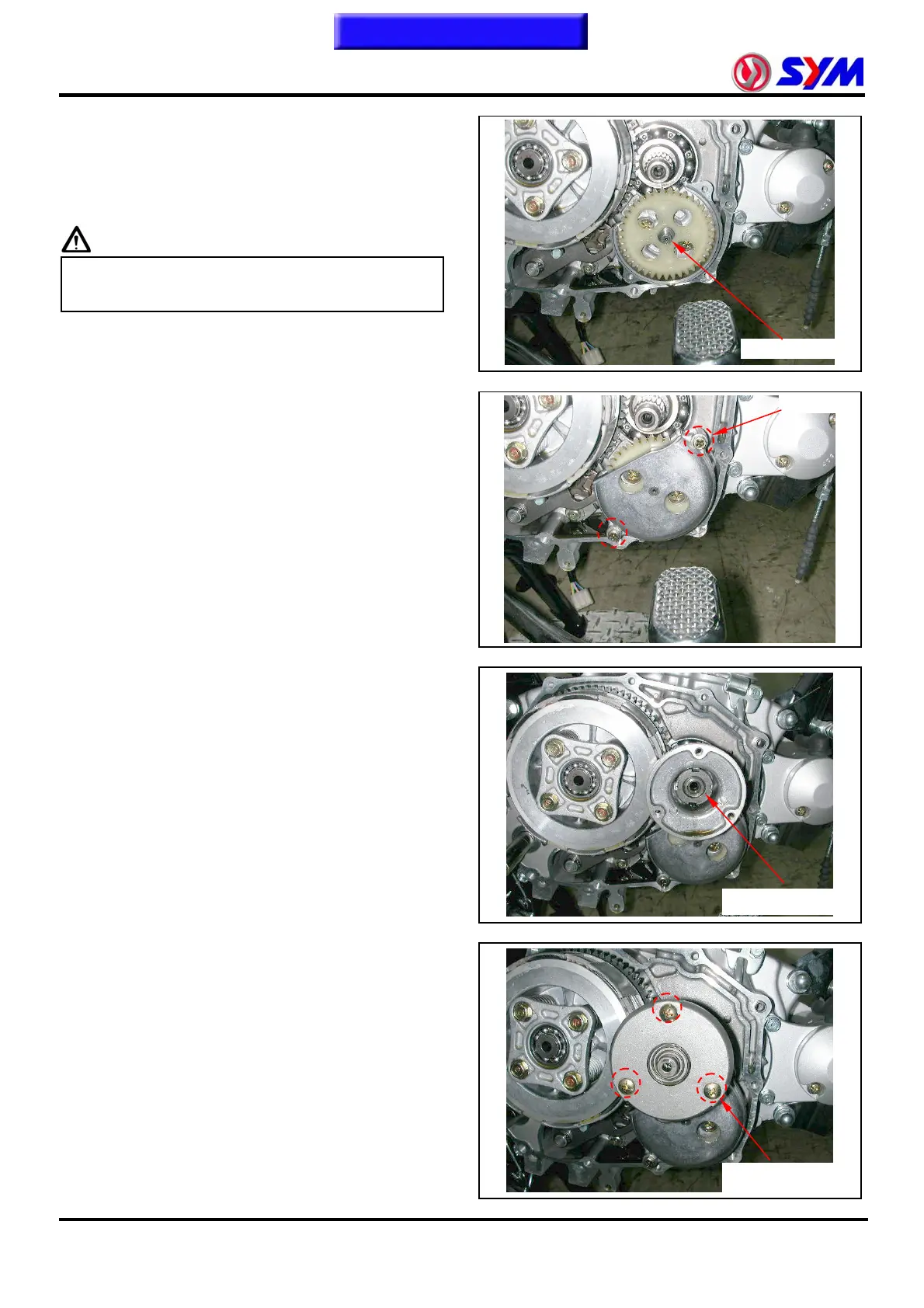

Match the driven shaft indent with the inner
rotor indents, and assemble the driven shaft.
4-10
Make sure that oil pump shaft can be rotated
freely. Then assemble the driven gear.
Caution
z Make sure that oil pump can rotate
smoothly.
Install the oil pump gear protective cover.
(Bolt×2)
Torque value：0.4~0.6kgf-m
Install the centrifugal oil strainer, and tighten
the anti-loosen nut.
Torque value：5.0~6.0kgf-m
Special tool：
Centrifugal oil strainer special nut socket:
SYM-9023100-SY125
Install the centrifugal oil strainer cover.
(screw×3)。
Torque Value：0.3~0.4kgf-m
Screw×3
Anti-loosen nut
