6. Engine Removal
6-4

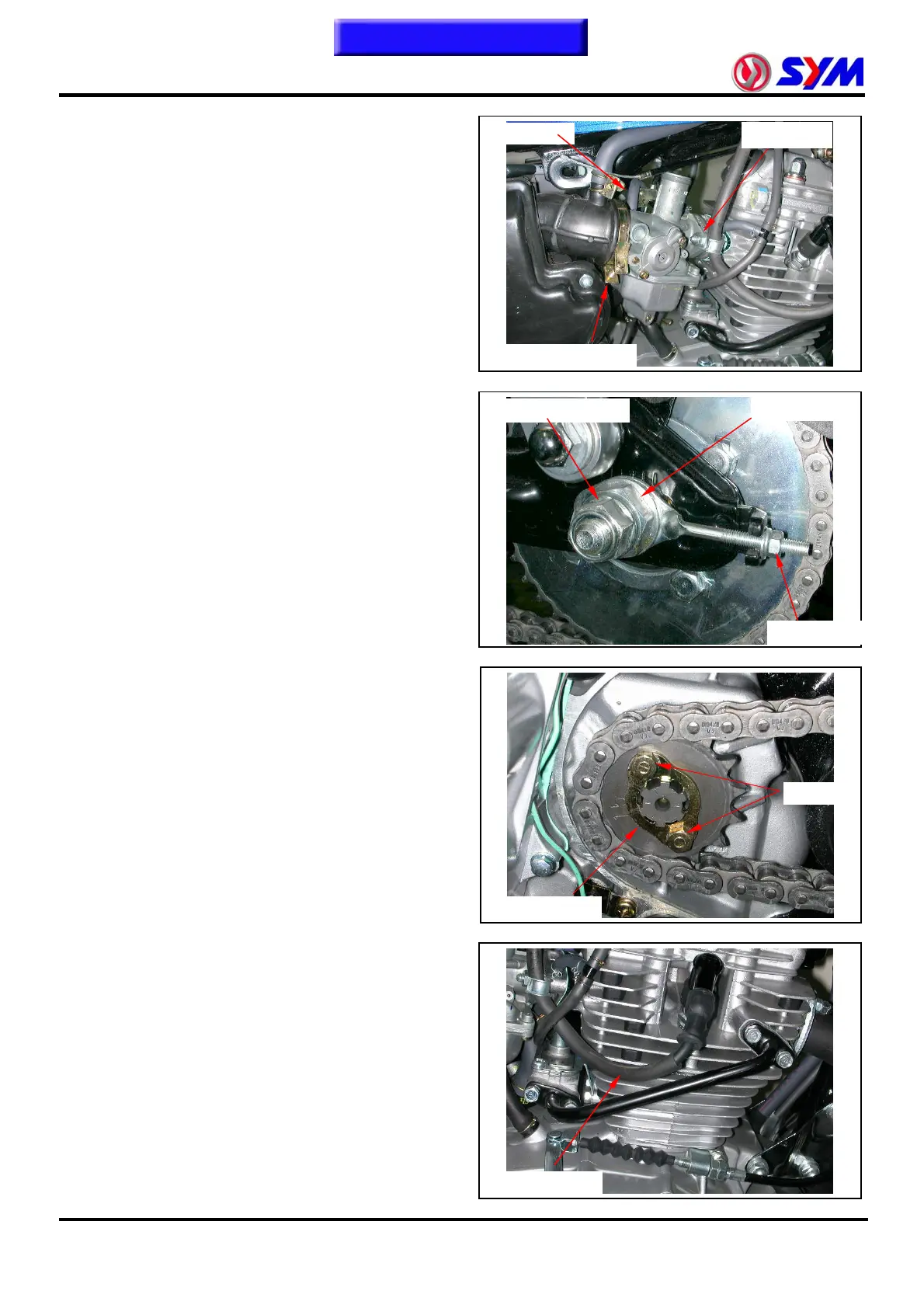

Remove the fuel tube of carburetor.
Loosen the air filter pipe strainer, and
separate the pipe.
Remove the carburetor holding nuts. (Nut X
2)
Remove the carburetor.
Loosen the rear wheel axle nut, and the
sleeve nut. Then loosen the adjusting nut and
push the rear wheel forward.
Remove the L crankcase chain cover.
Remove the driving sprocket holding bolts.
(Bolt X 2). Turn slightly and take out the
stopping plate, then remove the driving
sprocket and chain.
Remove the spark plug cap and the cable.
Stopper plate
Fuel tube
Holding nut×2
Air filter pipe strainer
Sleeve nut
Rear wheel axle nut
Adjusting nut
Bolt×2
IG coil cable
