S100 User Guide – Rev. D – June 2005 37
2
5
3
System Tests Dialog
You can skip the test by clicking Finish, or initiate the test by clicking Test Now.
The default is to test all the services, so unless you un-check them, they all will be tested. If
you do not use dial-up as backup, it will not be listed here nor will it be tested. Initiate the test
by clicking Test Now.
Test Results dialog
This displays the results of your test. This tells you if the S100’s GPS receiver is functioning
properly. In this example, it is. However, failed tests are also shown.

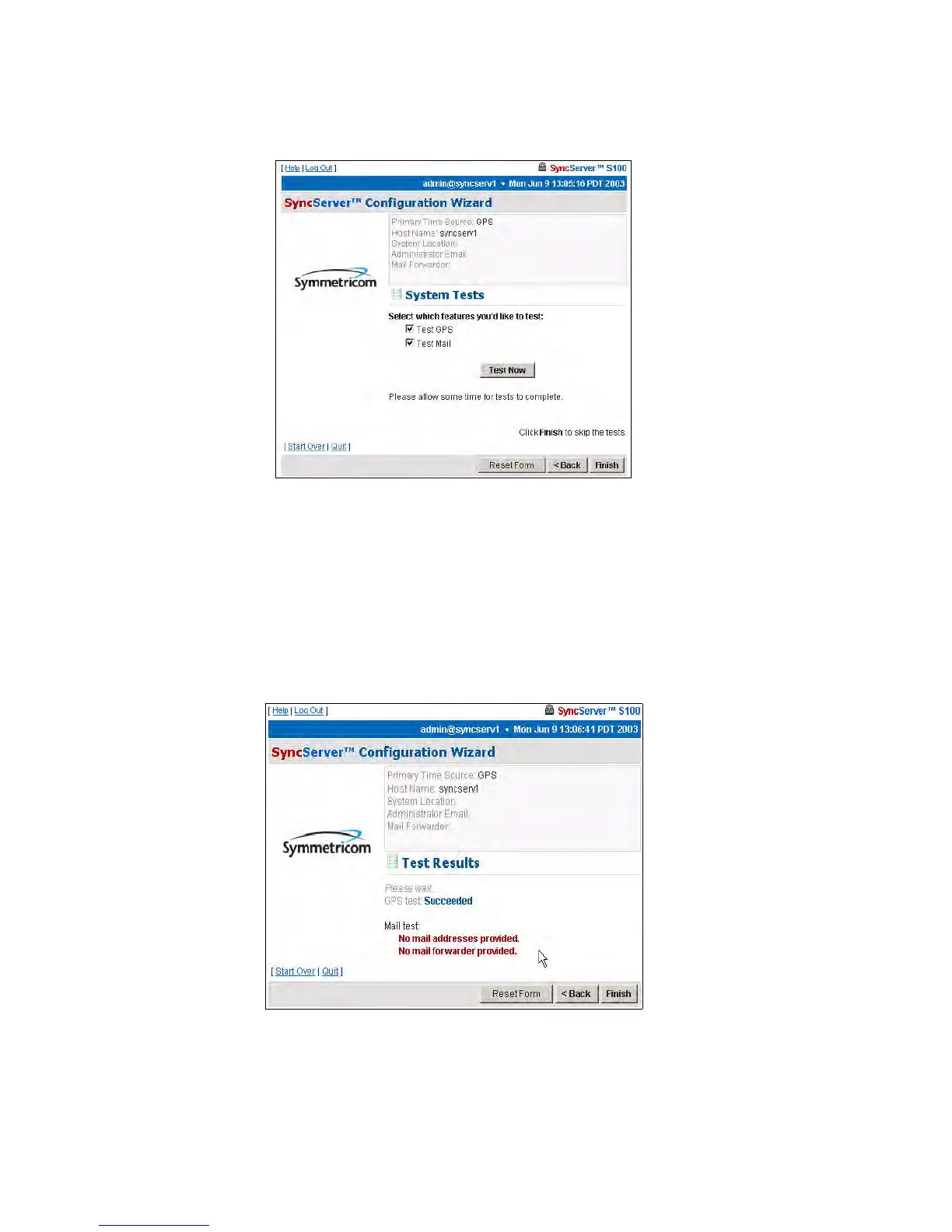

Figure 3-21: System Testing options
Figure 3-22: Test Results shown
