TB8100 Service Manual Power Amplifier Board Replacement 187

Reprogramming

and Recalibration

If you have replaced the control board, you will have to reprogram and

recalibrate the PA as described in the table below.

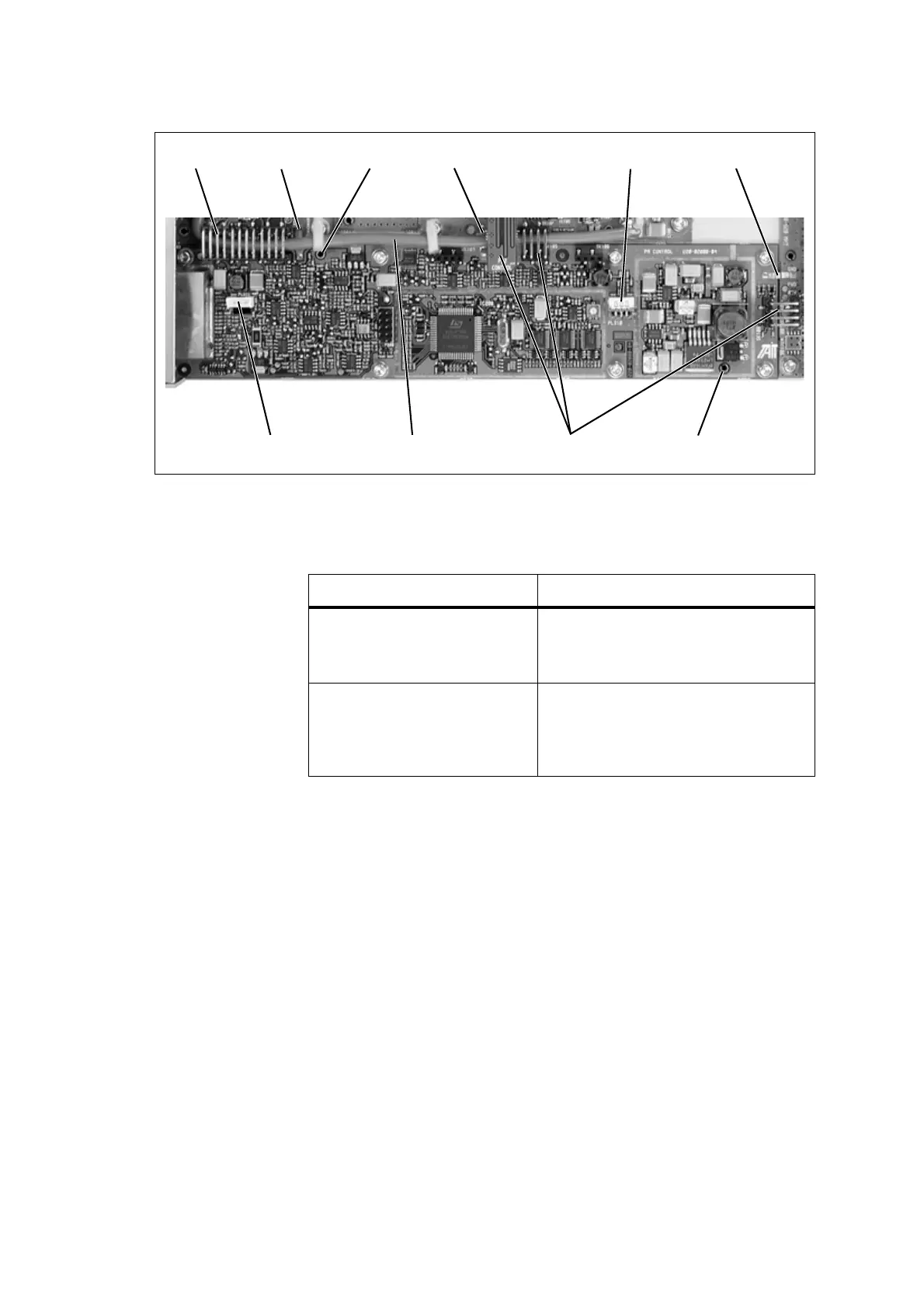

Figure 10.5 Replacing the control board

d f

100W PA

5W & 50W PA

Procedure Details

■ reprogram the product code

■ reprogram the PA type

■ reprogram the serial number

reprogram this information into the PA using

the Calibration Kit

; refer to the Calibration

Kit documentation for more details

a. To reprogram this information into the PA, you will need to use a dongle with the Cal-

ibration Kit.

■ calibrate the stage bias

■ calibrate the forward and reverse

detector bias voltages

■ calibrate the PA output power

carry out these procedures using the

Calibration Kit; refer to the Calibration Kit

documentation for more details
