24 Safety and Servicing Information TB8100 Service Manual

Note If you find you need excessive downwards pressure to keep the

screwdriver tip in the Pozidriv screw head, you are probably using

the wrong type or size screwdriver.

Figure 1.3 below shows the main differences between typical Pozidriv and

Phillips screw heads and screwdriver tips (actual hardware may differ slightly

from these illustrations due to variations in manufacturing techniques).

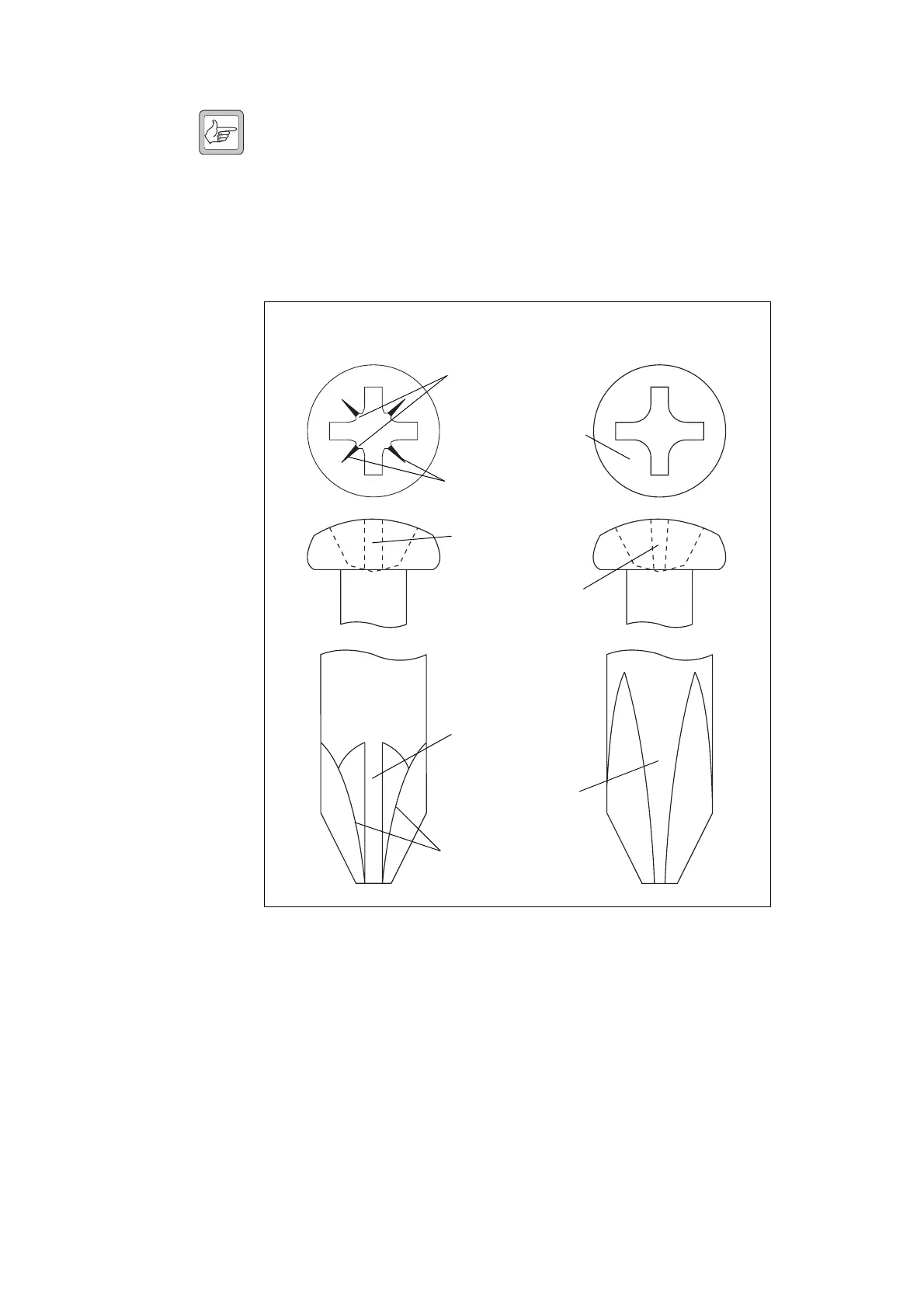

Figure 1.3 Identifying Pozidriv and Phillips screws and screwdrivers

internal notches

Pozidriv Phillips

no special markings

“star” markings

between slots

slots with parallel sides

slots with tapered sides

driving flutes with

parallel sides

driving flutes with

tapered sides

ridges between

driving flutes
