286 Control Panel Servicing TB8100 Service Manual

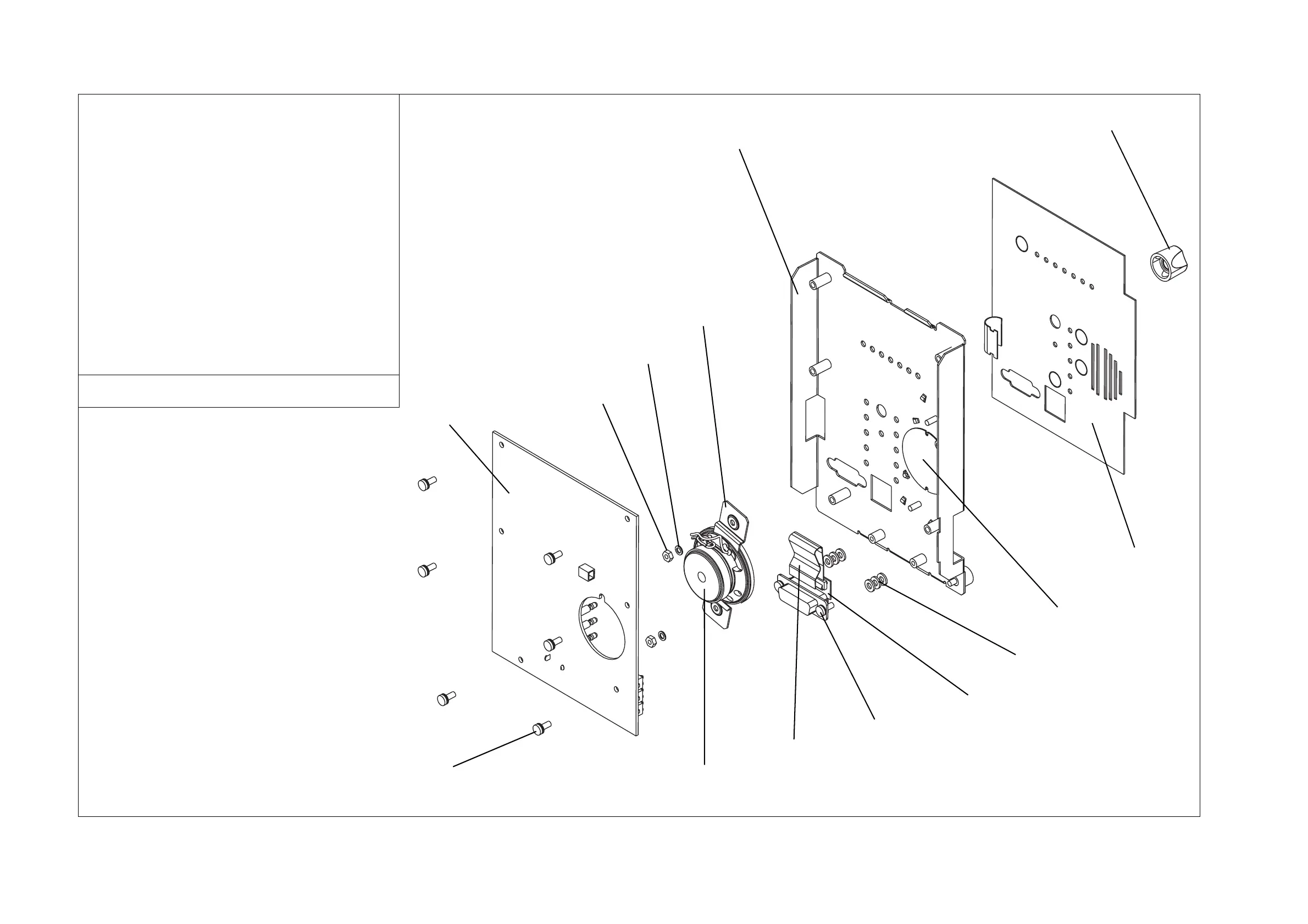

Figure 18.5 Control panel mechanical assembly - multi-reciter

Description IPN

flexible connector 219-02850-XX

speaker 252-00011-XX

speaker mounting bracket 302-05266-XX

speaker grille cloth 307-01024-XX

volume knob 311-01054-XX

keypad 311-03127-XX

chassis 316-06875-XX

M3x8mm pan head Torx screw with spring & flat

washers

345-40470-XX

M3 hex nut 352-00010-08

M3 flat washer 353-00010-10

M3 spring washer 353-00010-12

multi-reciter control panel interconnect board

assembly

XBAU22C6

multi-reciter control panel board

Note:

The characters XX in an IPN (Tait Internal Part Number)

stand for the issue number of the part. Only the latest

issue of each part will normally be available for ordering

as spare or replacement parts.
