246 Power Management Unit Fault Finding TB8100 Service Manual

13.10 Modifying the PFC Control Card

A modified PFC control card is an essential part of the test equipment set-up

(shown in Figure 13.11 on page 243) which enables the AC converter to

run on DC voltage. The modifications described below will bypass the

minimum operating voltage lock-out.

1. Connect a 4k7Ω resistor between pin 9 and pin 10 of IC102.

2. Connect a 2k2Ω resistor between pin 10 and pin 11 of IC102.

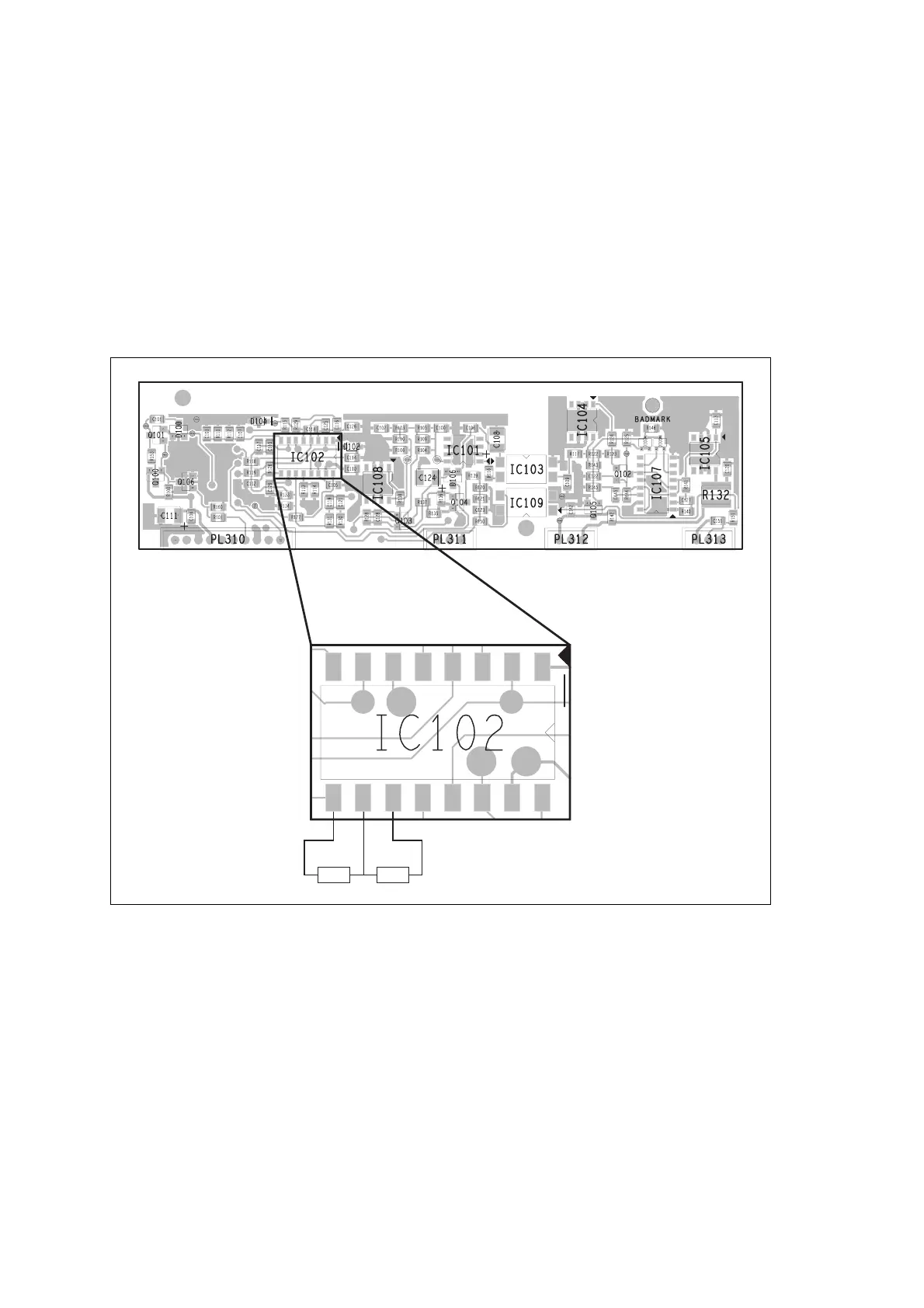

Figure 13.13 Modifying the PFC control card for testing the AC converter

2k24k7

91011
