Tait TB8100 - Figure 13.9 PMU Alarm Thresholds and Voltage Limits When Operating on DC

To Next Page

To Previous Page

238 Power Management Unit Fault Finding TB8100 Service Manual

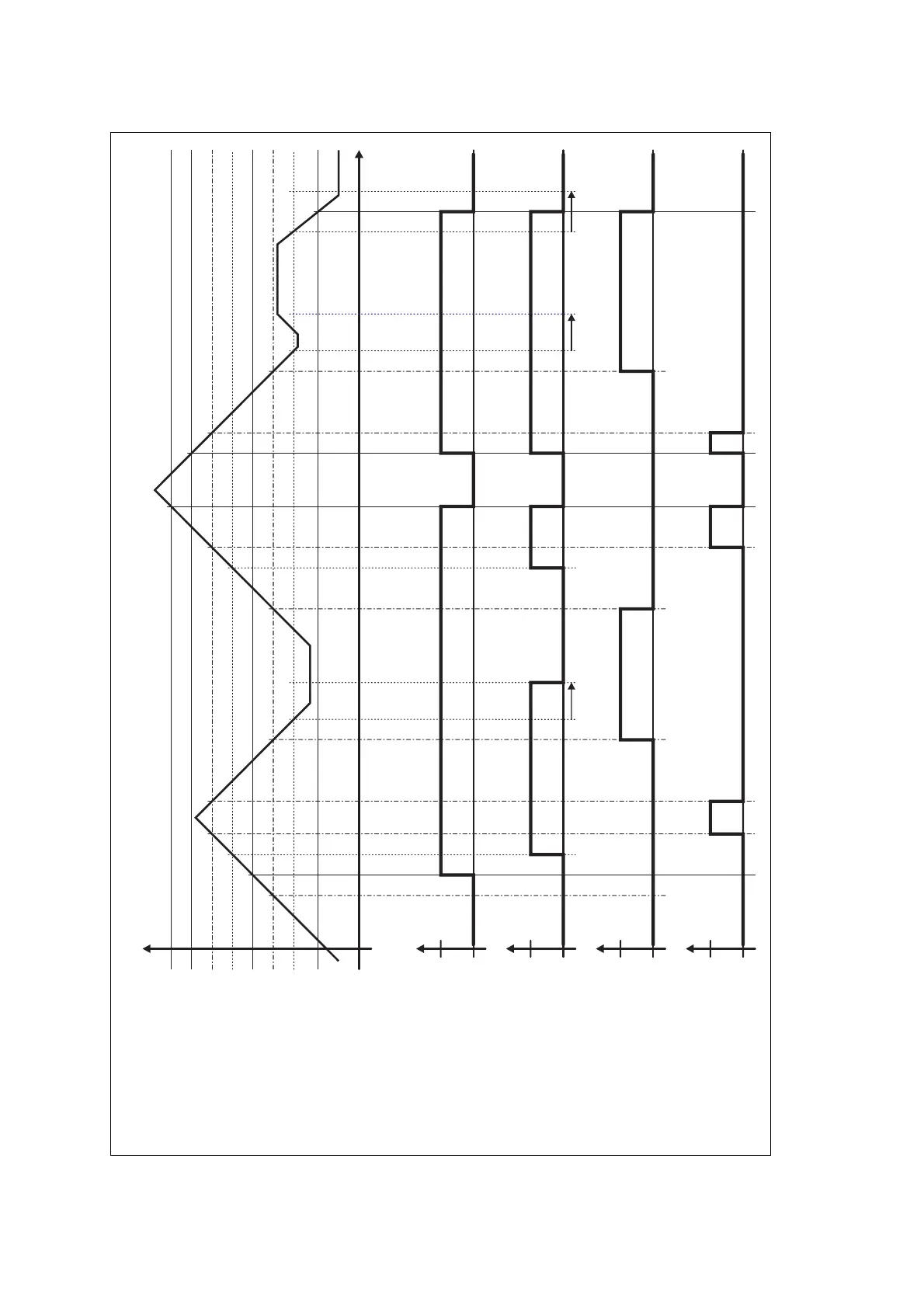

Figure 13.9 PMU alarm thresholds and voltage limits when operating on DC

Time

DC Input Voltage

Overvoltage Shutdown (HW)

Undervoltage Shutdown (HW)

Overvoltage Shutdown Reset (HW)

High Battery Voltage Alarm (SW Alarm)

Low Battery Voltage Alarm (SW Alarm)

Startup Voltage (SW)

Shutdown Voltage (SW)

Startup Voltage (HW)

Run

Stop

Active

Off

Software Control &

Hardware Combined

Hardware Behaviour

Software Alarm

(Low Battery Voltage)

Software Alarm

(High Battery Voltage)

30s delay 30s delay 30s delay
