90 Reciter Fault Finding TB8100 Service Manual

Note If the reciter is fitted with a TaitNet Ethernet system interface

board, and the PC is connected to the CTU, run the Service Kit

and connect to the reciter, then power up the reciter. Refer to

TN-1142-AN for full Ethernet connection details.

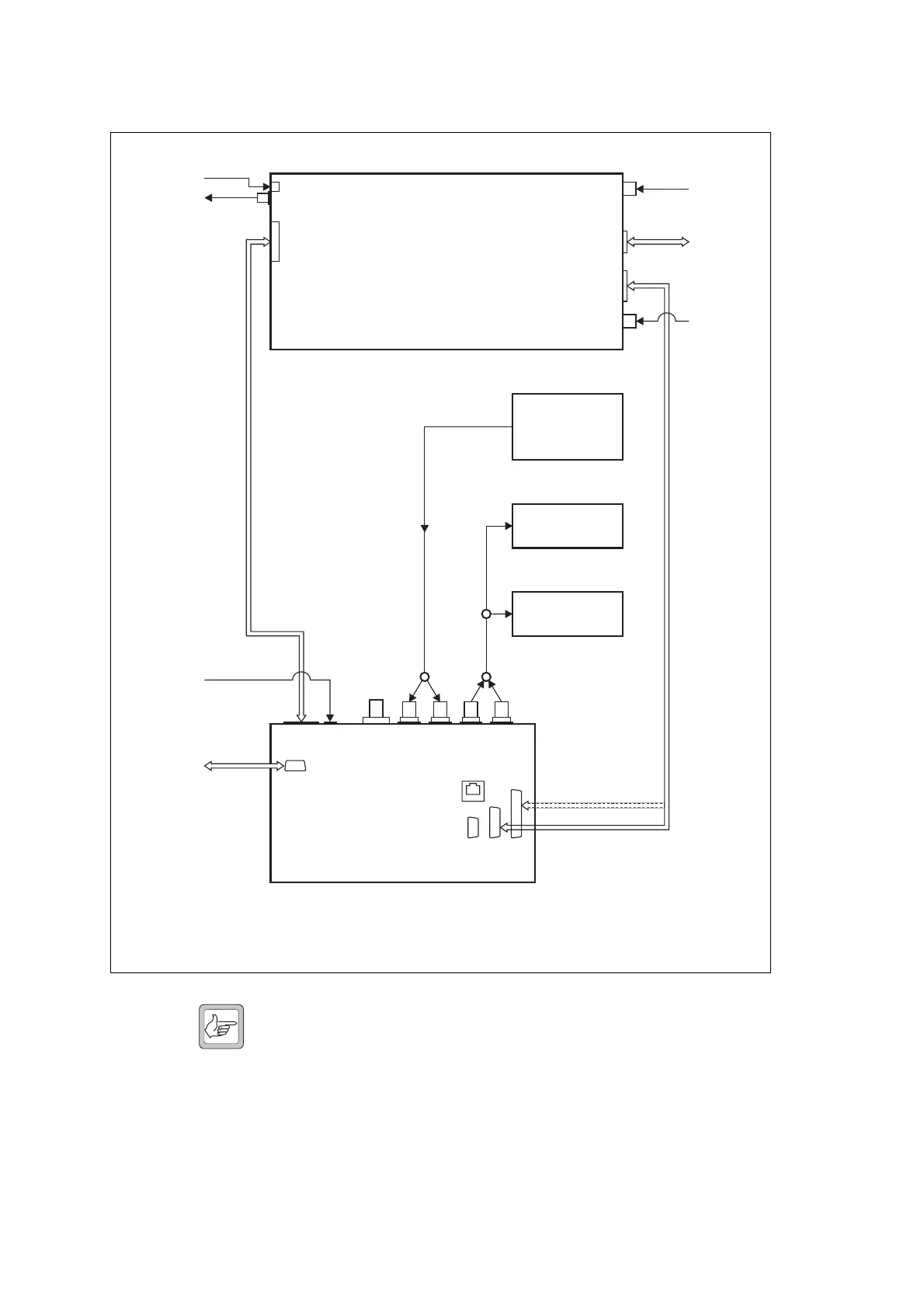

Figure 3.6 Recommended test equipment set-up for audio checks

25-way cable

SIF = system interface board

16-way cable

15-way cable (TaitNet)

RS-232

Exciter Output

28VDC

10-32VDC

System Interface

Antenna Input

External

Reference

Input

To PC running

Service Kit or

Calibration Kit

(not used for

TaitNet RS-232 SIF)

(TaitNet RS-232

SIF only)

(TaitNet RS-232

SIF only)

System Control Bus

(also supplies power

to CTU; not used for

TaitNet RS-232 SIF)

CTU

Reciter

Signal Generator

Audio Generator

Audio Analyser

Oscilloscope

RS-232

To PC running

Service Kit or

Calibration Kit
