Takeuchi TB216 User Manual

3-6
OperatiOn
OPERATING THE MACHINE

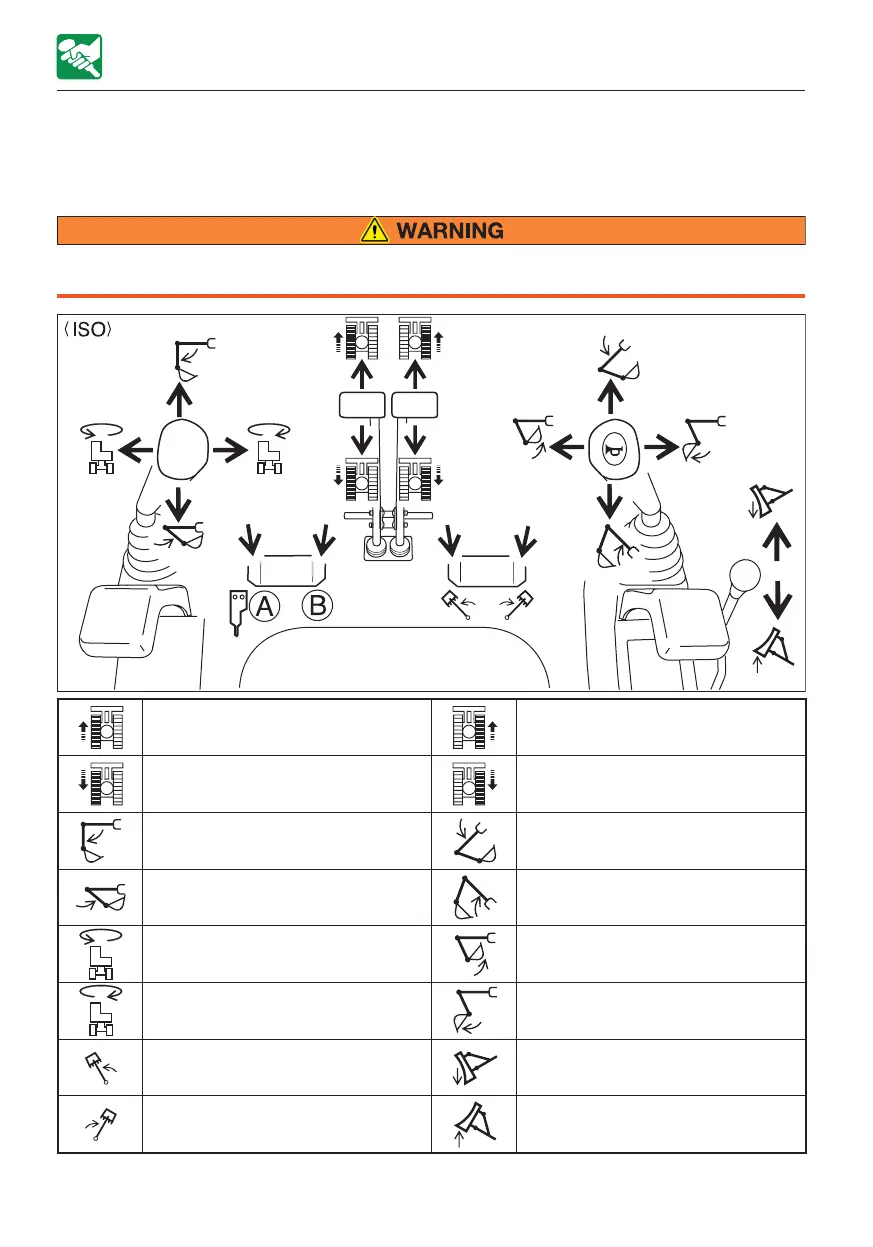

LEVER PATTERN (ISO PATTERN)
• Before starting operation, carefully check which lever pattern you are going to use.
• It is described using the ISO pattern in this manual.
OPERATING THE MACHINE
Left crawler forward Right crawler forward
Left crawler reverse Right crawler reverse
Arm out Boom lower
Arm in Boom raise
Upperstructure slew left Bucket load
Upperstructure slew right Bucket dump
Boom swing left Dozer blade lower
Boom swing right Dozer blade raise
AD6D008

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
