Maintenance

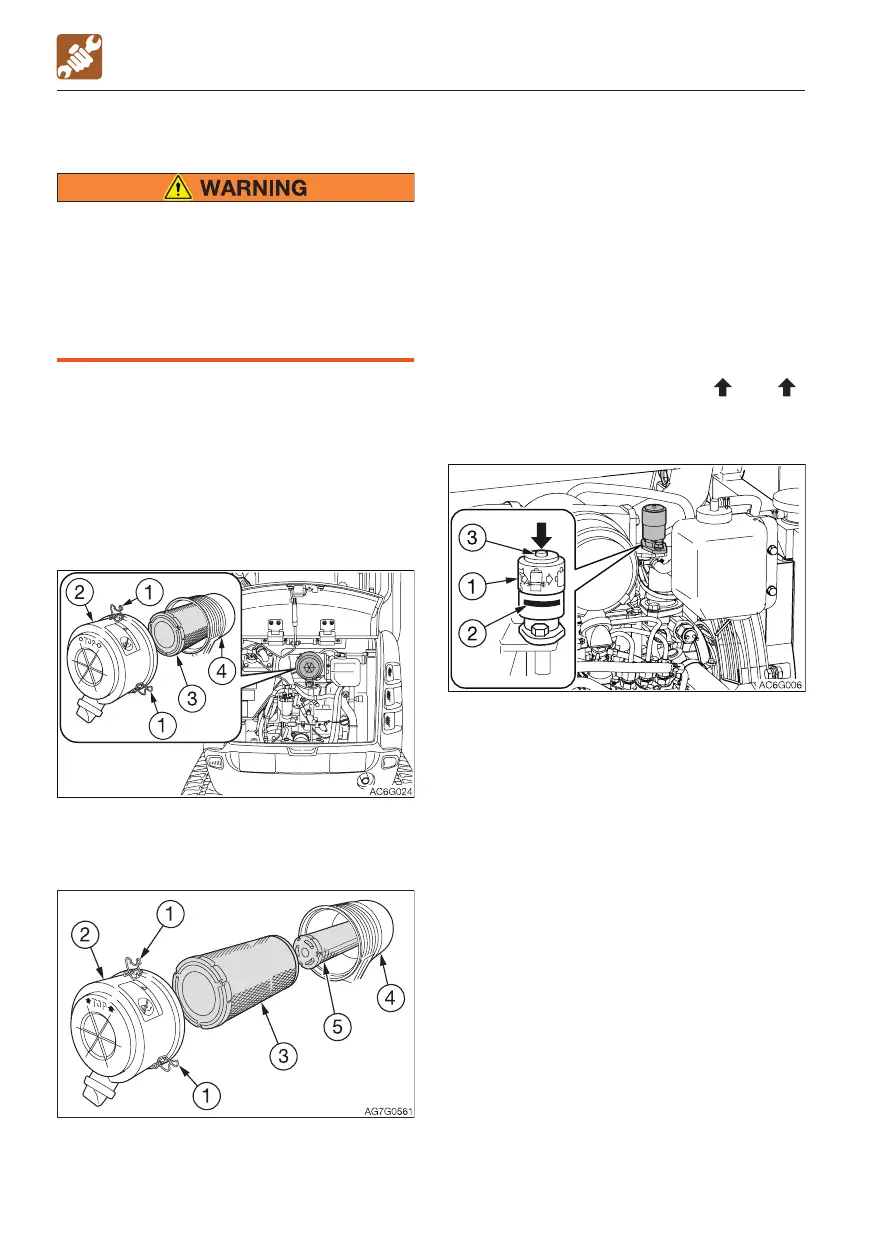

REPLACING THE AIR CLEANER ELEMENT
Stop the engine and allow the machine to
cool down before performing
maintenance.
• The engine, muffler, radiator and many
other parts of the machine are hot
immediately after the engine is stopped.
Touching these parts will cause burns.
IMPORTANT: Do not use an element if its
pleats, gaskets or seals are damaged.
IMPORTANT: Be sure to install the
element and dust cap securely. If not,
dust could be drain into the cylinder,
damaging the engine.
1. Open the engine hood.
2. Loosen the clamps (1) and remove the
dust cup (2).
3. Clean the inside of the dust cup (2).
5. Cover the intake hole at the back of the
body (4) with cloth or tape to prevent dirt
from getting in.
<If equipped with the secondary element>
Do not yet remove the secondary element
(5).
6. Clean the inside of the body (4).
7. Remove the cloth or tape applied in step
5.
<If equipped with the secondary element>
Remove the secondary element (5).
8. Install the new elements.
9. Install the dust cup (2) with its “
TOP ”
mark facing up, and then fasten it with the
clamps (1).
10. Push the button (3) on the dust indicator
to reset the red piston (2).
EVERY 1000 HOURS
4. Remove the primary element (3).
