Controls

INSTRUMENT CLUSTER

Once the starter switch is turned to ON, all lamps on the instrument cluster light up.

Then, the battery charge warning lamp (3) and the engine emergency lamp (1) start ﬂashing.

The machine system is normal if the lamps turn off after the engine is started.

If any lamp is not lit when the starter switch is turned to ON, there is something wrong in the

machine. Consult your sales or service dealer.

WARNING LAMPS

IMPORTANT: If a warning lamp ﬂashes

and an alarm is sounded, immediately

stop all operations and check the

corresponding component.

Refer to “If a warning lamp ﬂashes” on

page 6-9.

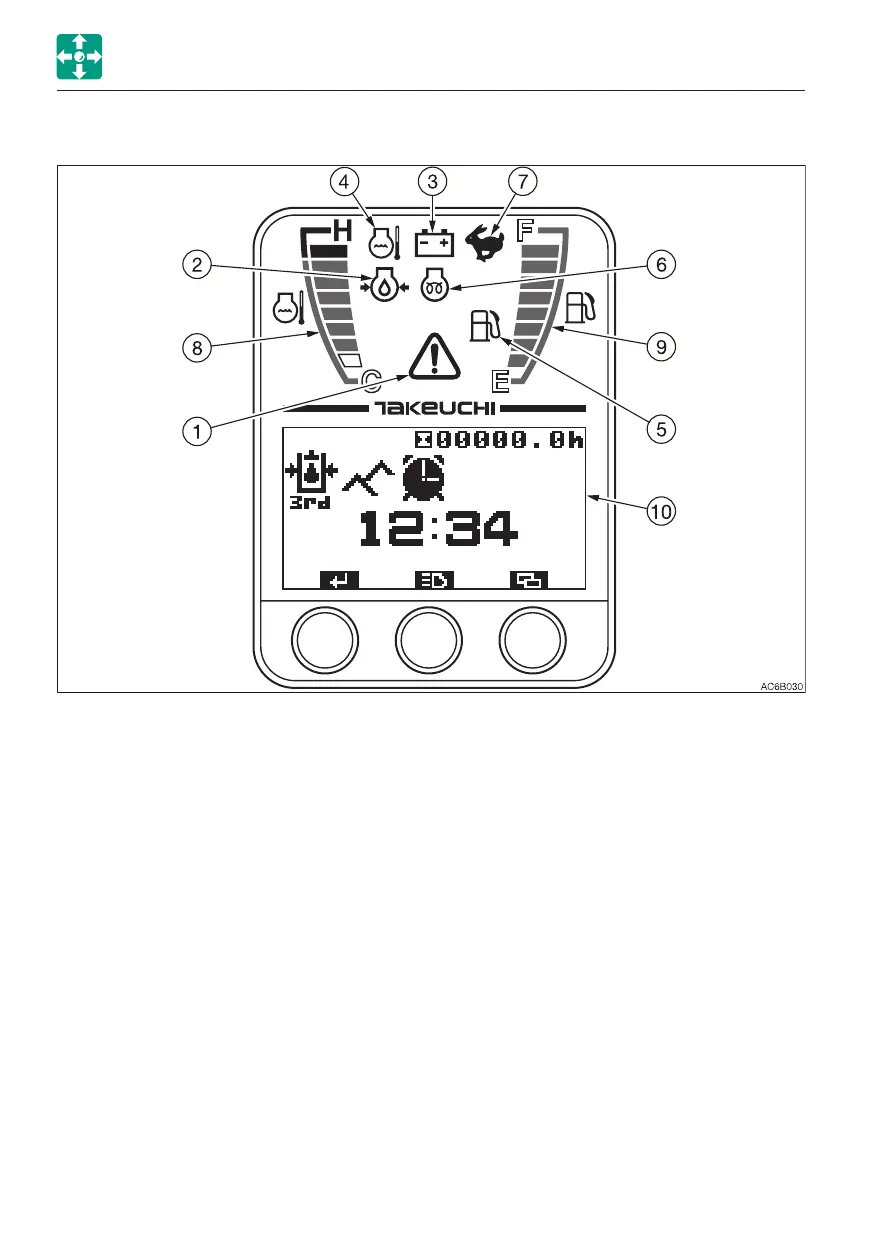

1. Engine emergency lamp

This lamp ﬂashes and an alarm sounds if

there is a problem with the engine or

charging system.

2. Engine oil pressure warning lamp

This lamp ﬂashes and an alarm is sounded

if the lubricant oil pressure abnormally low

while the engine is running.

3. Battery charge warning lamp

This lamp ﬂashes and an alarm is sounded

if a problem rises in the charging system

while the engine is running.

4. Coolant temperature warning lamp

This lamp ﬂashes and an alarm is sounded

if the engine coolant temperature

becomes abnormally high while the engine

is running.
