Takeuchi TB216 User Manual

8-10
OptiOns
TRAVEL ALARM
TRAVEL ALARM
The alarm sounds while the machine is
traveling and stops when the machine stops
traveling.
If the alarm does not sound when the
machine travels, the fuse may be blown.
Inspect the fuses.
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.

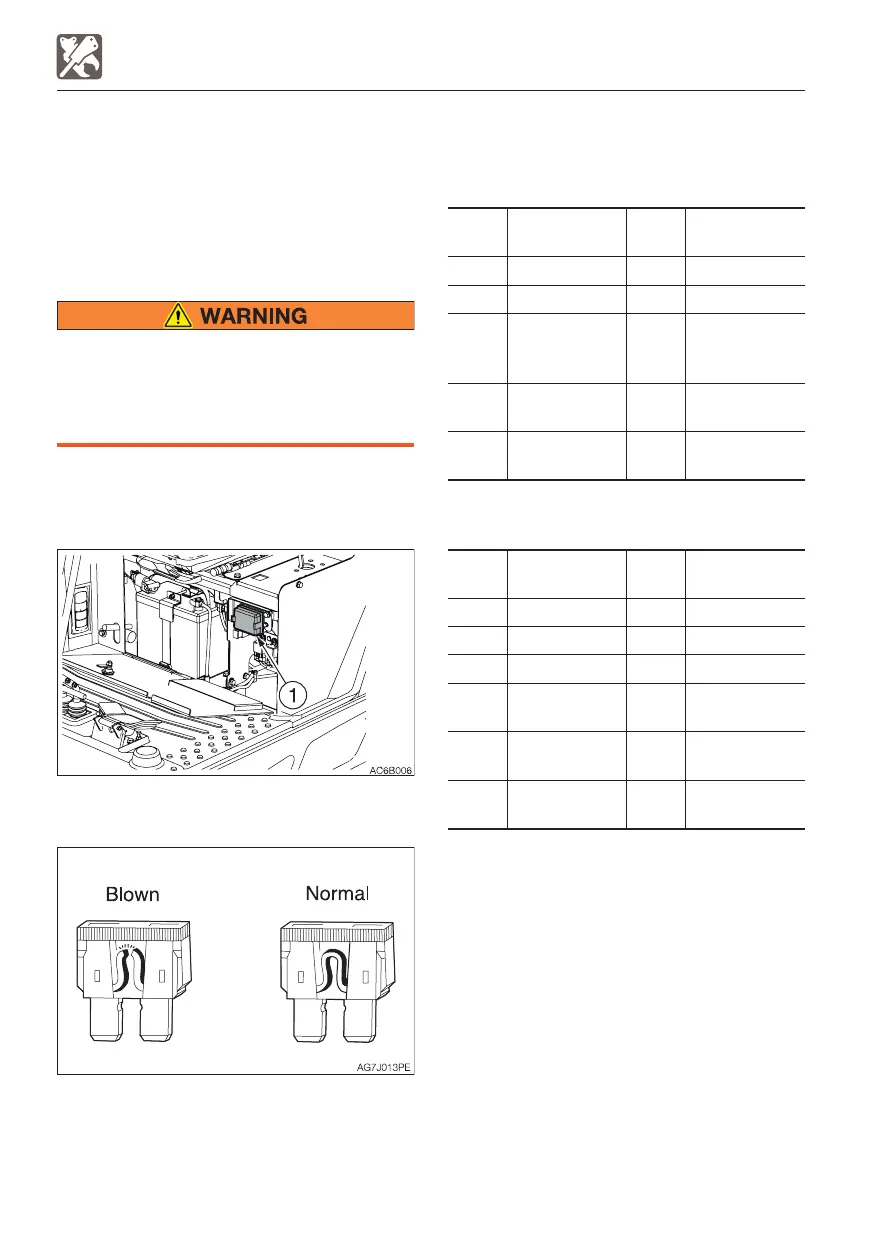

1. Turn the starter key to the OFF position to
stop the engine.
2. Open the maintenance cover.
3. Open the fuse box cover (1).
4. Check for fuse.
5. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
<Applicable machine models 216000002 or
later>
Capacity
Protected
circuit
Capacity
Protected
circuit
10A Cluster 20A Light
10A Horn 5A Lever lock
25A
Cab interior
power supply
(Cab)
10A
Third auxiliary
hydraulic
15A Feed pump 15A
Option (1)
Travel alarm
15A Heater (Cab) 25A
Engine power
source
<Applicable machine models 216100002 or
later>
Capacity
Protected
circuit
Capacity
Protected
circuit
25A Controller
10A Cluster 20A Light
10A Horn 5A Lever lock
10A
Third auxiliary
hydraulic
15A Feed pump 15A
Option (1)
Travel alarm
25A
Highland
mode
25A
Engine power
source

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
