Takeuchi TB216 User Manual

5-34
Maintenance
EVERY 100 HOURS

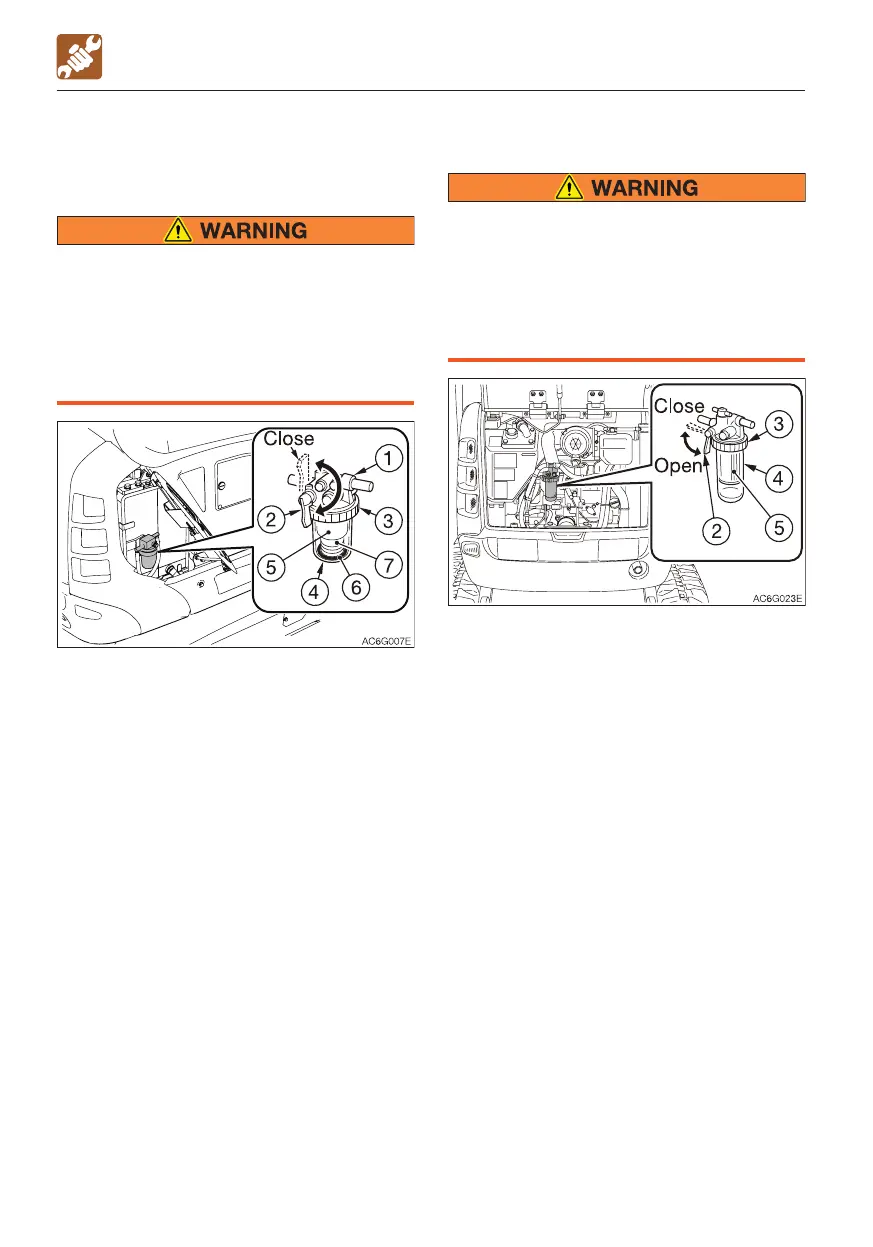

CLEANING THE WATER SEPARATOR
• Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
• Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
• Clean up spilled fuel immediately.
1. Open the side cover.
2. Close the valve (2).
3. Loosen the ring (3), and then remove and
clean the case (4), element (5) indicator
ring (6) and spring (7).
4. Inspect the O-ring and the element (5). If
there are any scratches or other
irregularities, replace them.
5. Install the indicator ring (6), spring (7),
element (5) and case (4), and then tighten
the ring (3).
6. Open the valve (2) to bleed air.
Refer to “Bleeding air from the fuel
system” on page 6-8.
EVERY 100 HOURS
CLEANING THE FUEL FILTER
• Do not smoke or permit open flames
while handling fuel or working on the
fuel system.
• Stop the engine in a well-ventilated
place and allow it to cool down before
performing maintenance.
• Clean up spilled fuel immediately.
1. Open the engine hood.
2. Close the valve (2).
3. Loosen the ring (3), remove and clean the
case (4) and the element (5).
4. Inspect the O-ring and the element (5). If
there are any scratches or other
irregularities, replace them.
5. Install the element (5) and the case (4) and
tighten them with the ring (3).
6. Open the valve (2) to bleed air.
Refer to “Bleeding air from the fuel
system” on page 6-8.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
