Takeuchi TB216 User Manual

2-12
Controls
CAB
3. Release your thumb from the knobs (2)
and then press the front window toward
front and lock the front window with lock
pin (4).
LOWER FRONT WINDOW
Removing
1. Open the front window and stow it in the
ceiling.
2. Slowly lift the lower front window (4).
3. Hold the glass firmly, place it through the
guides (5) at the rear, and then set it on
the supports (6) to fasten it in place.
SIDE WINDOW
Opening
1. Release the lock by turning the locking
screw (7) counterclockwise
2. Hold the catch (8) to disengage it and
open the side window.
3. Secure the side window by turning the
locking screw (7) clockwise.
Closing
1. Release the lock by turning the locking
screw (7) counterclockwise
2. Close the window until a click is heard,
and then secure the window by turning
the lock screw (7) clockwise.

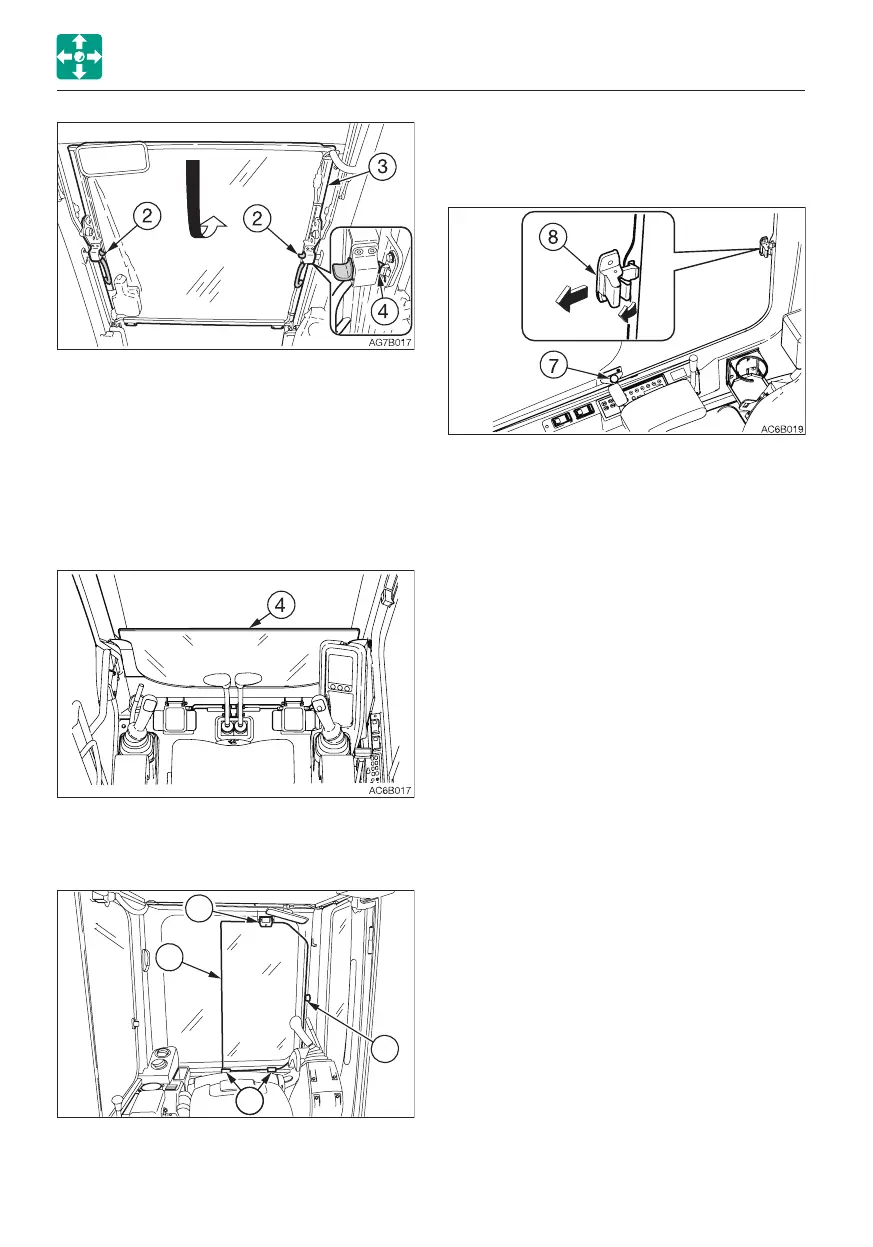

AG7B019
4
5
5
6

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
