Takeuchi TB216 User Manual

8-5
OptiOns

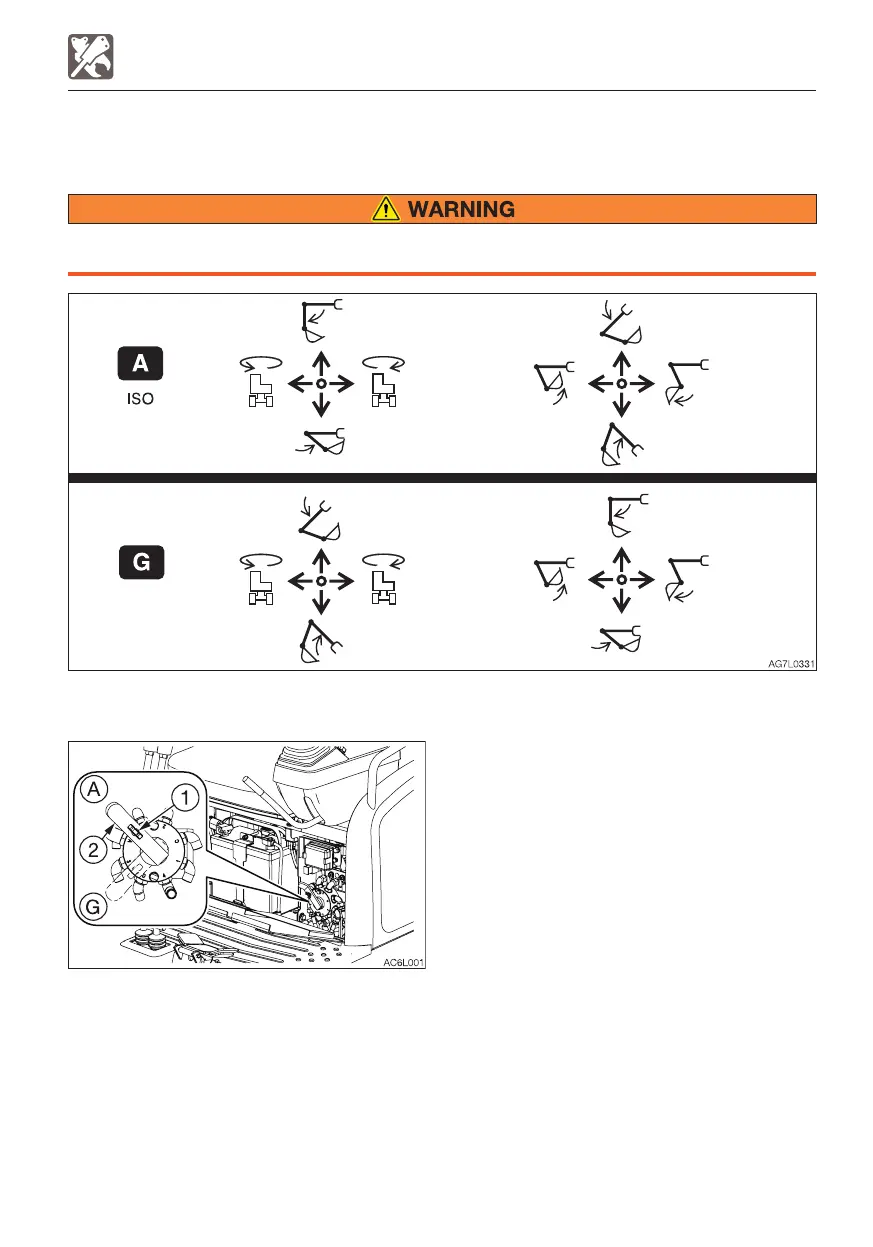

SELECTING A LEVER PATTERN
The operating pattern of the left and right operating levers can be changed.
Before starting the engine, check the selector to see which operating pattern the left
and right operating levers are set.
SELECTING A LEVER PATTERN
SWITCHING THE LEVER PATTERN
(A) : ISO pattern
(G) : G pattern
1. Park the machine on a flat and rigid
ground, and stop the engine.
2. Open the maintenance cover.
3. Loosen the wing bolt (1).
4. Turn the selector valve lever (2) to switch
the pattern.
5. Tighten the wing bolt (1) and fasten the
lever (2) in place.
6. Close the maintenance cover.
7. Confirm the lever pattern.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
