Takeuchi TB216 User Manual

2-7
Controls

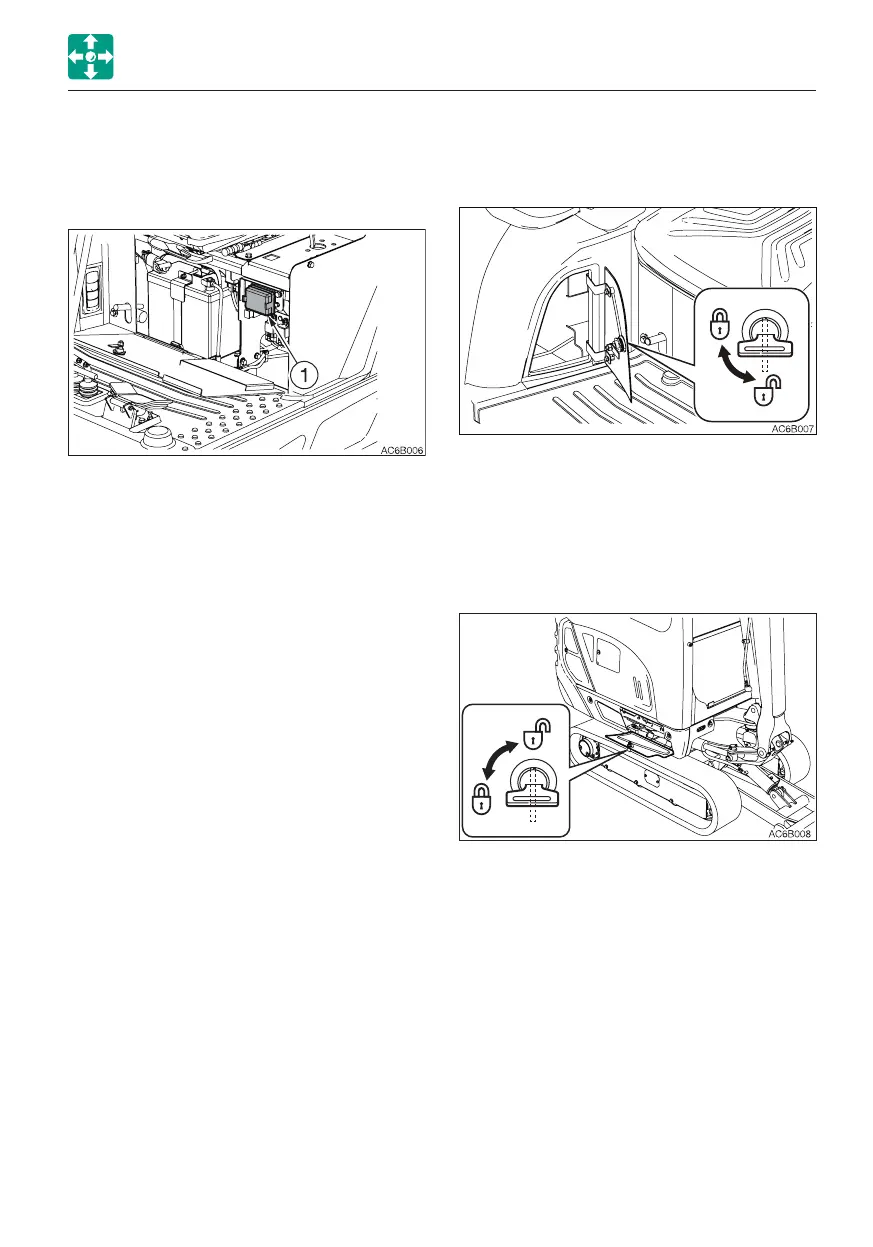

COVERS
FUSE BOX
This box is used to protect the electric
system from overcurrent.
Opening
1. Pull the fuse box cover (1) while pushing
the tab beside it.
Closing
1. Push in the fuse box cover (1) until the tab
clicks into place.
TOOL CASE
Opening
1. To unlock this case, insert the starter key
and turn it counterclockwise.
GREASE GUN HOLDER
Opening
1. To unlock this holder, insert the starter key
and turn it counterclockwise.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
