Takeuchi TB216 User Manual

3-16
OperatiOn

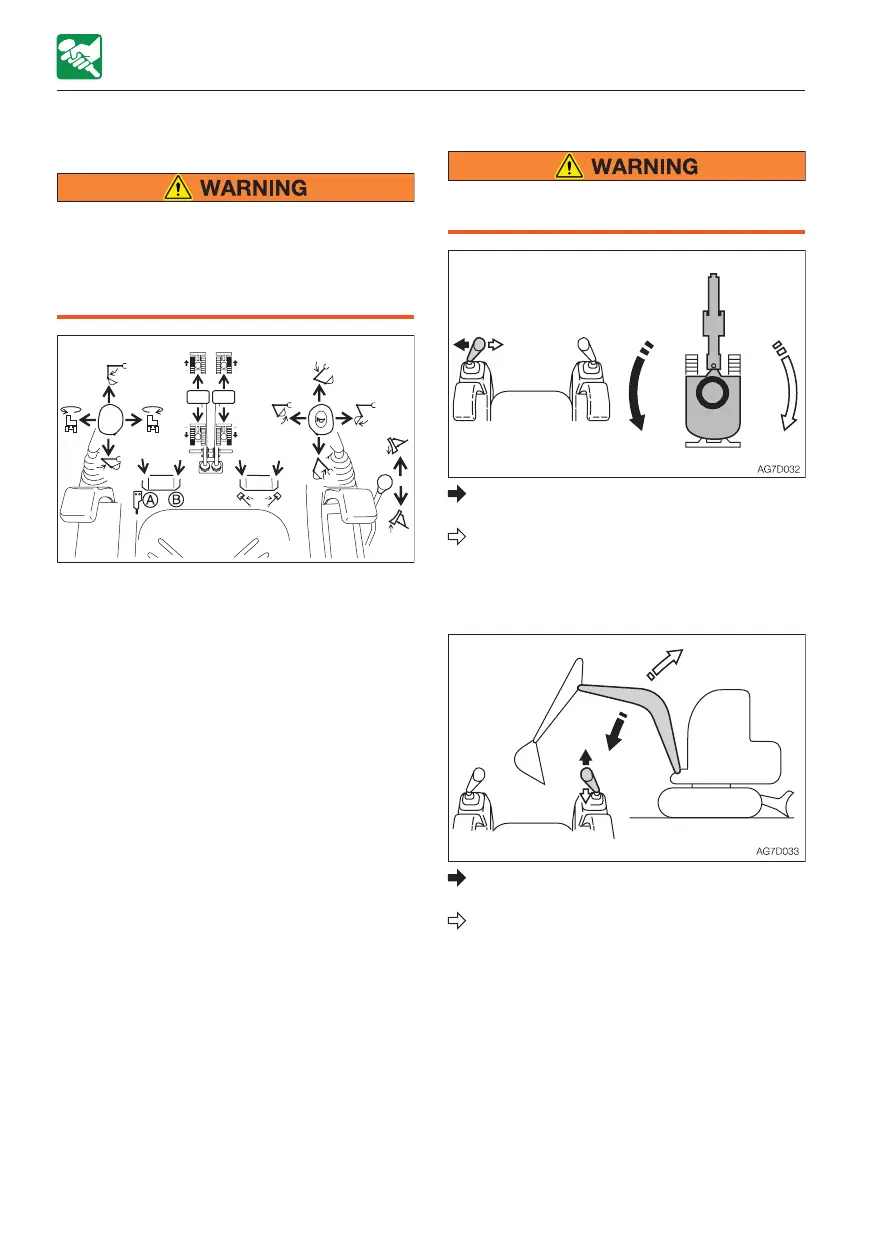

OPERATING THE WORKING EQUIPMENT
• Before starting operation, carefully
check which lever pattern you are going
to use.
• It is described using the ISO pattern in
this manual.
OPERATING THE MACHINE
Use the right operating lever to operate the
boom and bucket.
Use the left operating lever to operate the
arm and slewing.
Return the operating levers to the neutral
position to stop the hoe attachments.
1. Lower the safety lock lever to the
unlocked position.
2. Set the pedal cover to the unlocked
position.
Upperstructure slew left:
Tilt the left operating lever to the left.
Upperstructure slew right:
Tilt the left operating lever to the right.
Operating the boom
Slewing
Check the surrounding area for safety
before slewing.
Boom lower:
Tilt the right operating lever forward.
Boom raise:
Tilt the right operating lever backward.
AD6D003

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
