Takeuchi TB216 User Manual

6-7
TroubleshooTing
INSPECTING THE FUSIBLE LINK
IF A FUSE BLOWS

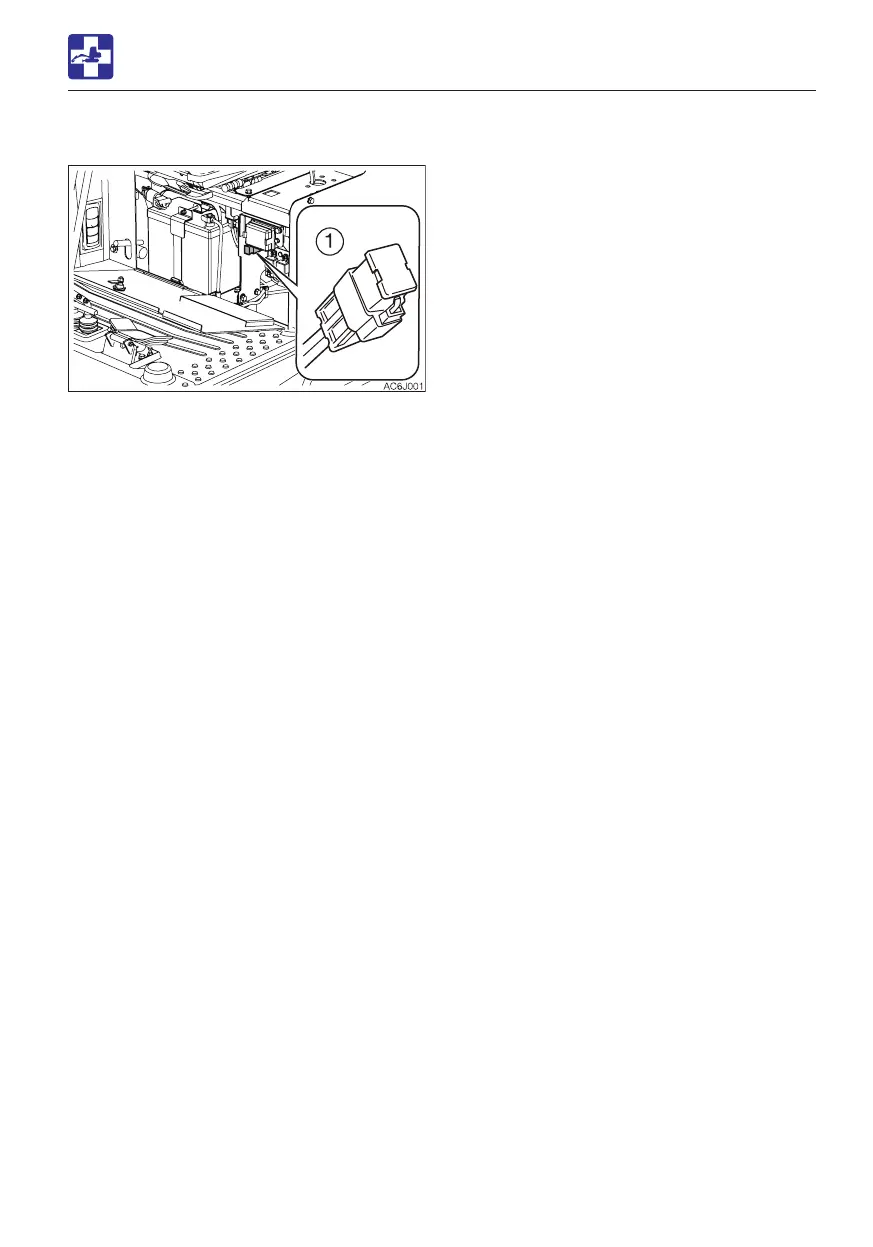

If the machine is not turned on after turning
the starter switch to the ON position, the
cartridge type fusible link (1) is likely blown.
Open the maintenance cover and inspect. If
the fusible link is blown, please contact your
sales or service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
