Takeuchi TB216 User Manual

2-42
Controls

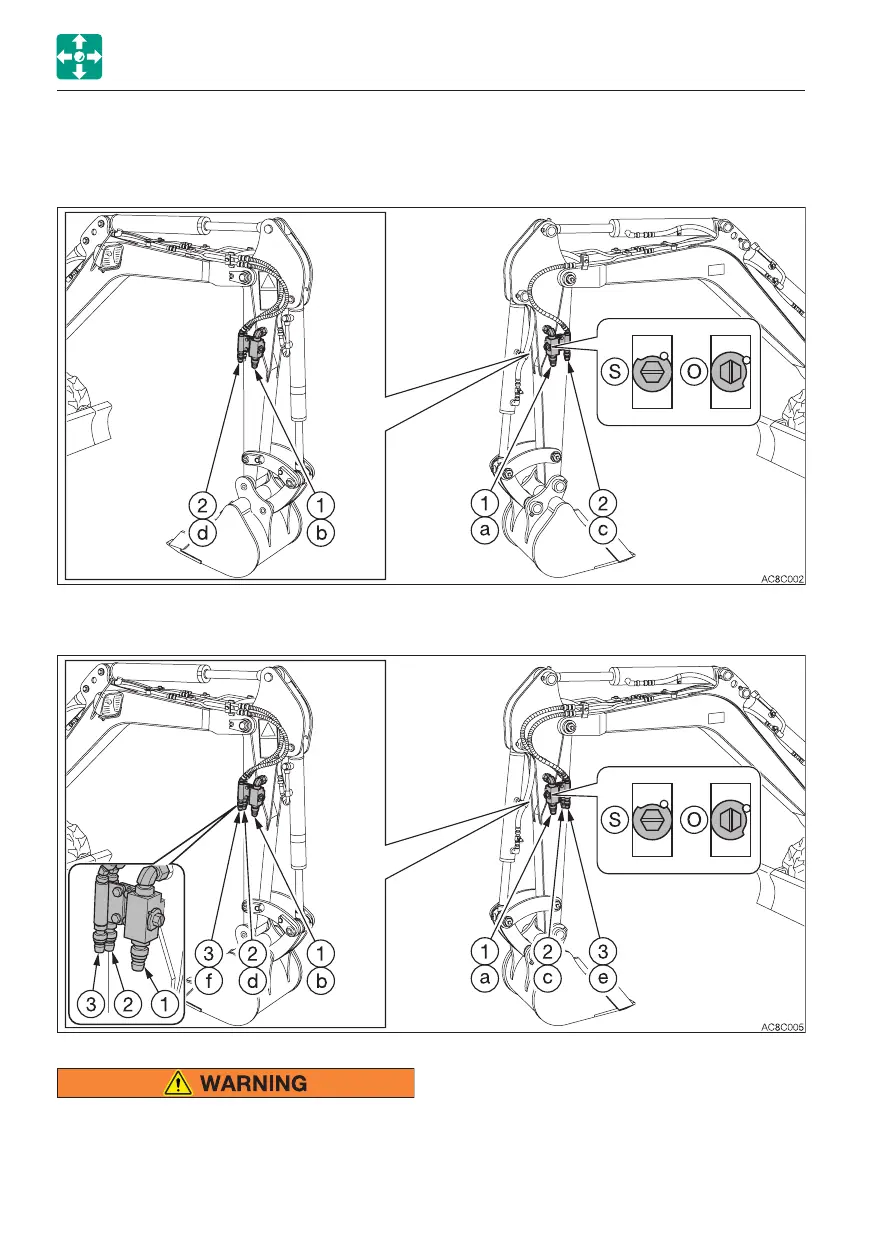

AUXILIARY HYDRAULIC LINES
First / second auxiliary hydraulic lines (If equipped)
ACCESSORIES
Oil may spurt out if pipes disconnected
before releasing the pressure in the
hydraulic system.
• Immediately after the engine is stopped,
press each auxiliary hydraulic pedal and
second auxiliary switch several times to
release the pressure from the auxiliary
hydraulic circuit.
• Slowly loosen the air bleeding plug to
relieve the internal pressure of the
Third auxiliary hydraulic lines (If equipped)

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
