Takeuchi TB216 User Manual

3-17
OperatiOn

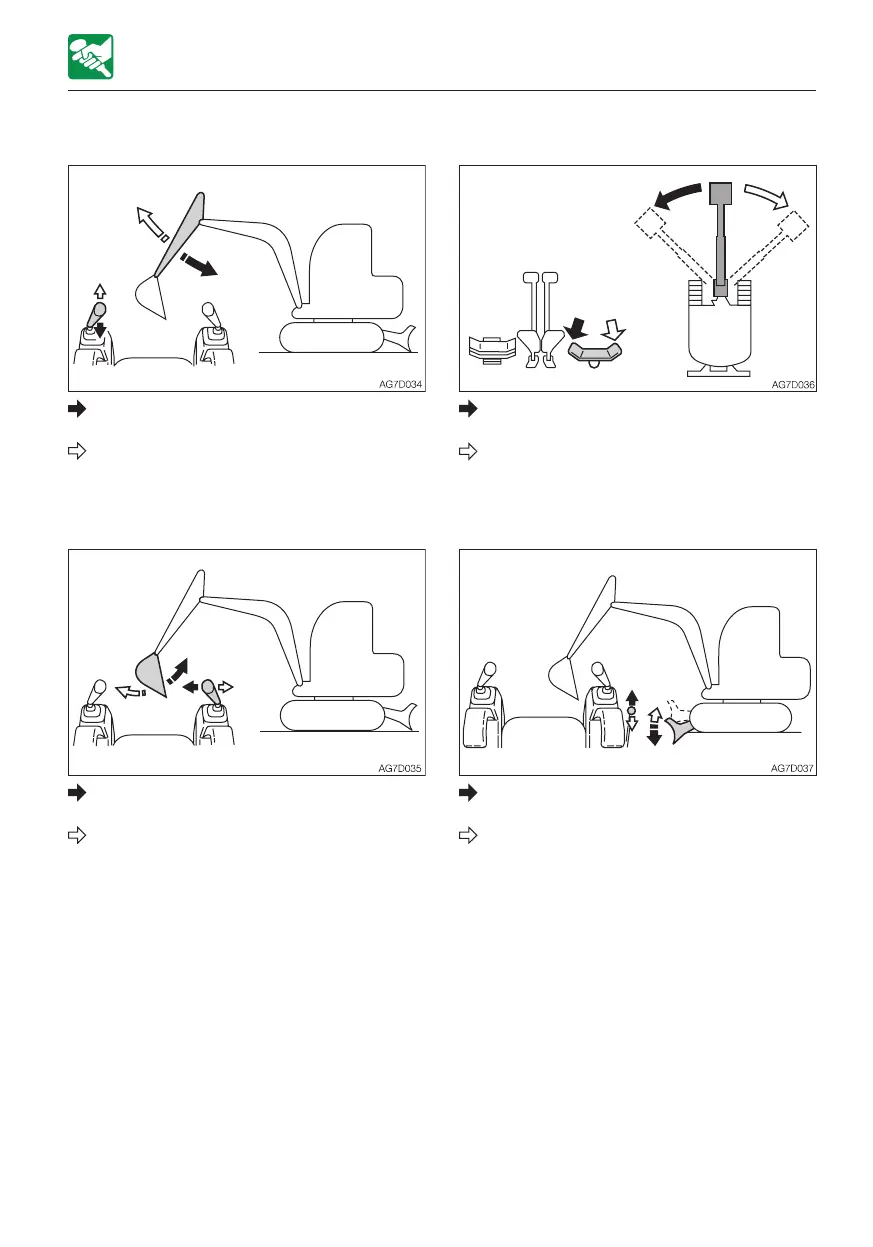

Operating the arm
OPERATING THE MACHINE
Arm in:
Tilt the left operating lever backward.
Arm out:
Tilt the left operating lever forward.
Operating the bucket
Bucket load:
Tilt the right operating lever to the left.
Bucket dump:
Tilt the right operating lever to the right.
Boom swing left:
Step on the left side of the pedal.
Boom swing right:
Step on the right side of the pedal.
Operating the dozer blade
Operating the boom swing
Dozer blade lower:
Tilt the lever forward.
Dozer blade raise:
Tilt the lever backward.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
