Takeuchi TB216 User Manual

3-20
OperatiOn

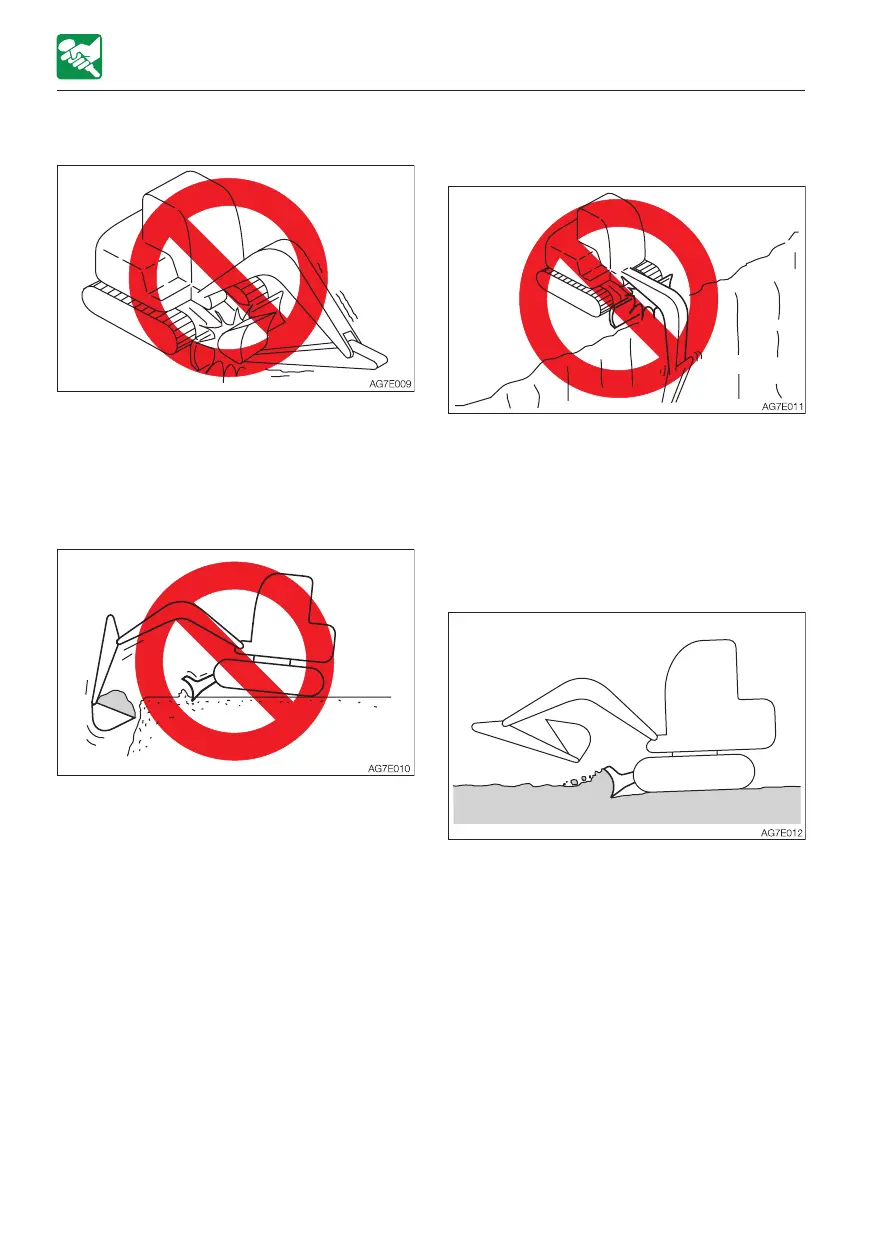

Caution on folding the hoe attachment
OPERATING PROCEDURES
Be careful not to let the bucket to hit the
dozer blade when the hoe attachment is
being folded.
Do not use the dozer blade as an
outrigger
Pay attention to the dozer blade when
digging
When digging deeply with the dozer blade
positioned at the front, be careful that the
boom and bucket do not hit the dozer blade.
Operate with the dozer blade at the rear
whenever possible.
Caution on digging down with the dozer
blade
This dozer blade is designed for simple earth
pushing. Do not dig down deeply with the
dozer blade. Doing so could damage the
dozer blade and undercarriage.

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
