Takeuchi TB216 User Manual

2-3
Controls

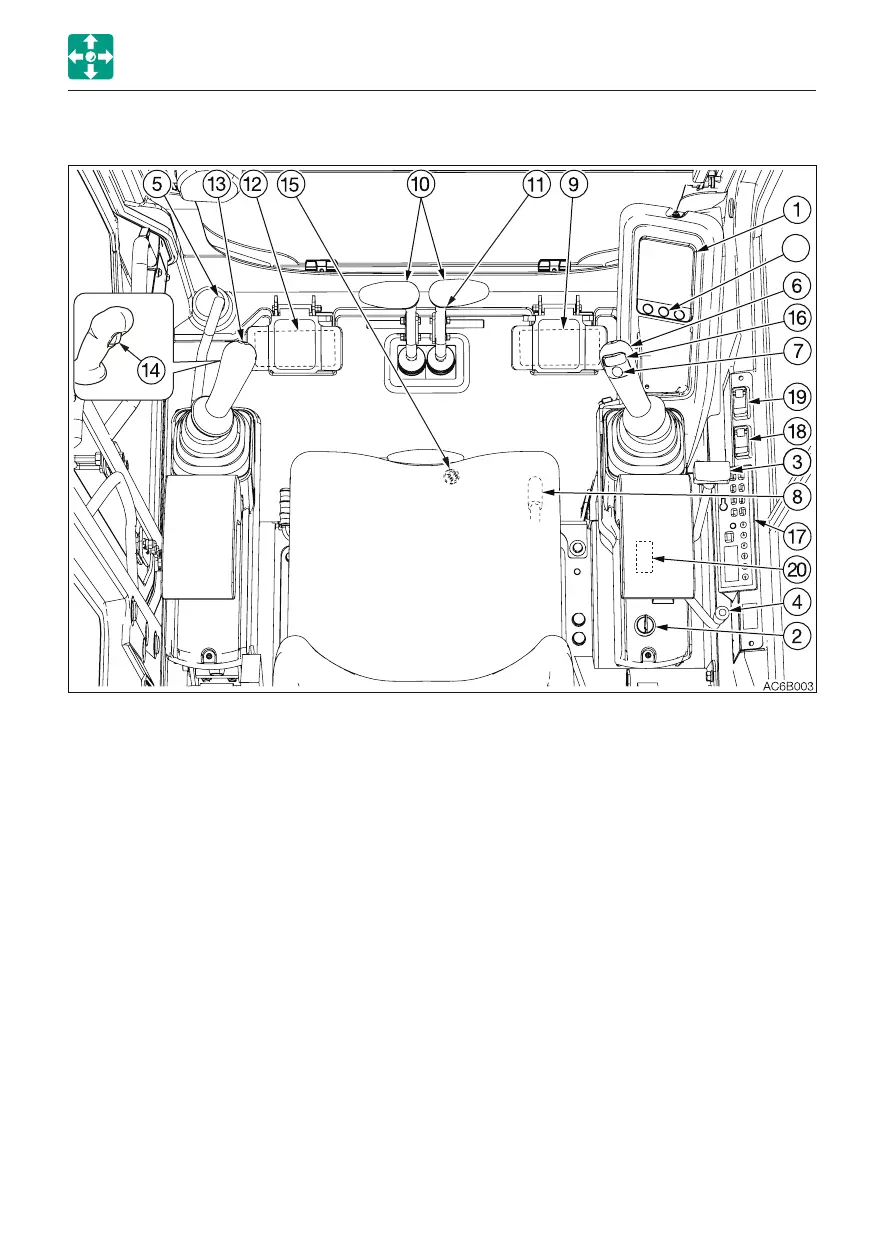

NAMES OF COMPONENTS (CAB)
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle lever
5. Safety lock lever
6. Right operating lever
7. Horn button
8. Selector lever
9. Boom swing pedal
10. Travel lever/Pedal
11. Travel speed switch
12. Auxiliary hydraulic pedal
13. Left operating lever
14. Third auxiliary hydraulic button*
15. Third auxiliary hydraulic switch*
16. Auxiliary 2nd switch*
17. Radio
18. Heater fan switch
19. Wiper switch
20. Lift overload warning switch*
21. Light switch
*: Subject to the specifications or optional products selected
21

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
