Takeuchi TB216 User Manual

2-5

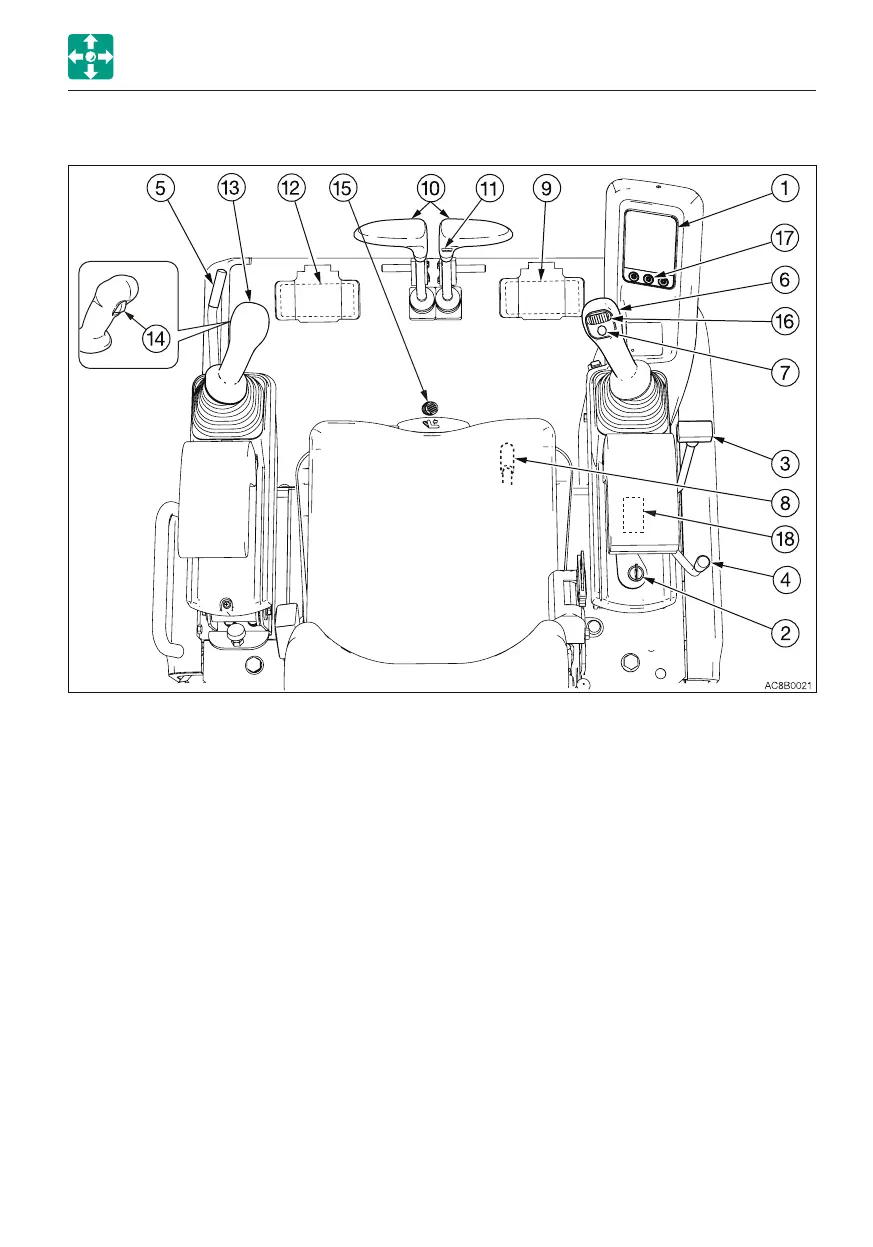

Controls
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle lever
5. Safety lock lever
6. Right operating lever
7. Horn button
8. Selector lever
9. Boom swing pedal
NAMES OF COMPONENTS (CANOPY)
10. Travel lever/Pedal
11. Travel speed switch
12. Auxiliary hydraulic pedal
13. Left operating lever
14. Third auxiliary hydraulic botton*
15. Third auxiliary hydraulic switch*
16. Auxiliary 2nd switch*
17. Light switch
18. Lift overload warning switch*
*: Subject to the specifications or optional products selected

Takeuchi TB216 Specifications

General

Engine Make	Yanmar
Engine Model	3TNV70
Transport Width	980 mm
Bucket Capacity	0.04 m³
Maximum Reach	4, 040 mm
Max Reach at Ground Level	3, 980 mm
