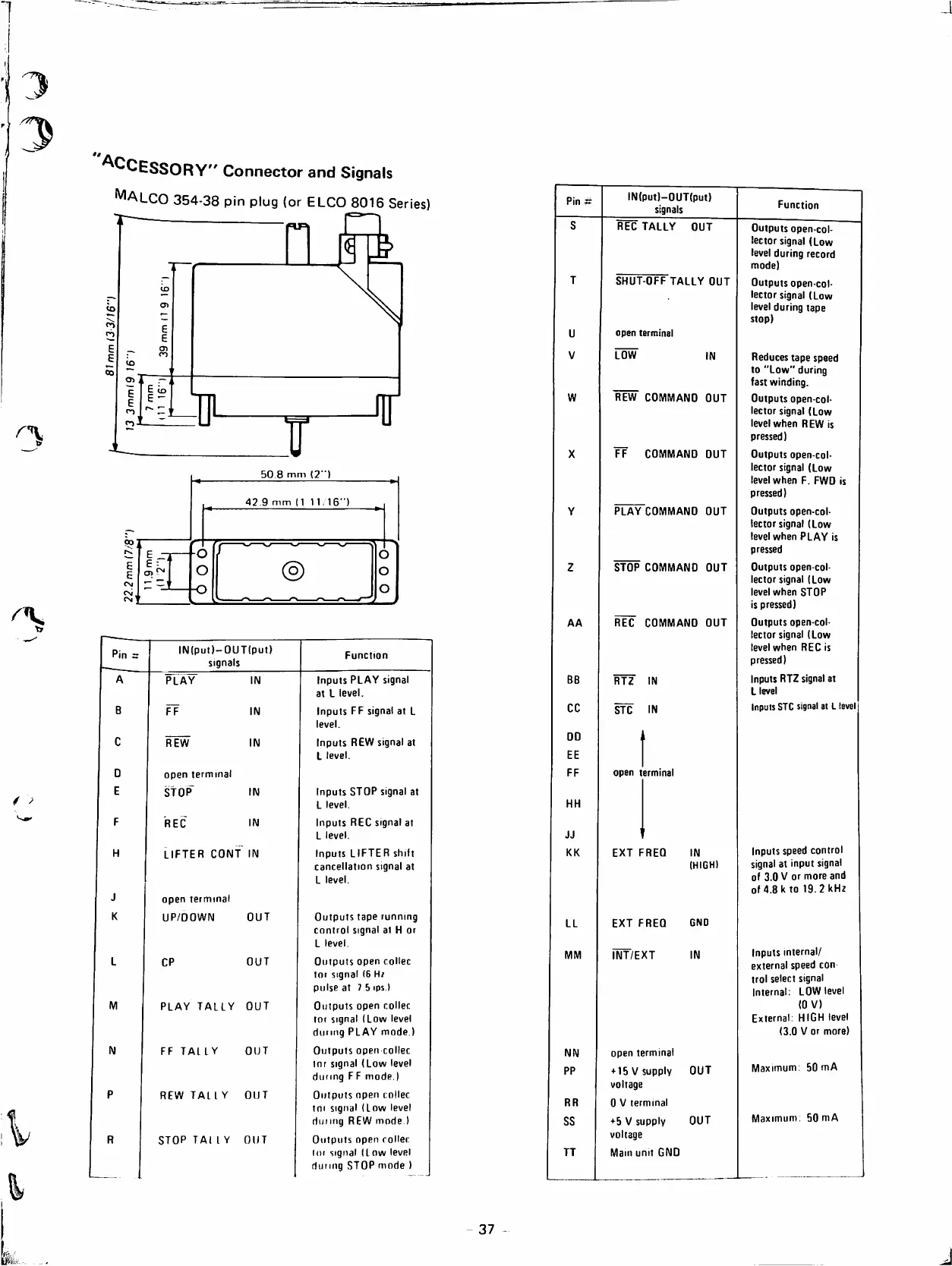

'^^CESSORY" Connector and Signáis
•^ALCO 354-38 pin plug (or ELCO 8016 Series)
Oi i
£ to
5 -
y]i
I
E ■
6 :
Pin
"X"
50.8 mm (2")
42 9 mm n 11. 16")
IN(put)-OUT(put)
signáis
PLAY IN
FF IN
REW IN
open terminal
StOP IN
REC IN
LIFTER CONT IN
open terminal
UP/DOWN OUT
Function
CP
OUT
PLAY TALLY OUT
FF TALLY OUT
REW TALLY OUT
STOP TAI l Y OUT
Inputs PLAY signal
at L level.
Inputs FF signal at L
level.
Inputs REW signal at
L level.
Inputs STOP signal at
L level.
Inputs REC signal at
L level.
Inputs LIFTER shift
cancellation signal at
L level.
Oulputs tape runnmg
control signal al H or
L level.
Outputs open collec
tor signal (6 Hr
pulse at 7 5 ips.)
Outputs open collec
toi signal (Low level
durmg PLAY mode.)
Outputs open collec
tor signal (Low level
dunng FF mode.)
Outputs open collec
toi signal (Low level
dunng REW mode )
Outputs open collec
tor signal (Low level
dunng STOP mode )
Pin#
IN(put)-OUT(put)
signáis
Function
S
REC TALLY OUT
Outputs open-col-
lector signal (Low
level during record
mode)
T
SHÜT-OFF TALLY OUT
Outputs open-col-
lector signal (Low
level during tape
stop)
U
open terminal
V
LOW
IN
Reduces tape speed
to "Low" during
fast winding.
W
"REW
COMMANO OUT
Outputs open-col-
lector signal (Low
level when REW is
pressed)
X
FF
COMMAND OUT
Outputs open-col-
lector signal (Low
level when F. FWO is
pressed)
Y PLAYCOMMANO OUT Outputs open-col-
lector signal (Low
level when PLAY is
pressed
Z STOP COMMAND OUT
Outputs open-col-
lector signal (Low
level when STOP
is pressed)
AA REC
COMMANO OUT
Outputs open-col-
lector signal (Low
level when REC is
pressed)
BB
RT2
IN
Inputs RTZ signal at
L level
CC
STC
IN
Inputs STC signal at L level
00
EE
FF
open t
erminal
HH
JJ
KK
EXT FREO IN
Inputs speed control
(HIGH)
signal at input signal
of 3.0 V or more and
of4.8kto 19.2 kHz
LL
EXT FREO GND
MM
ÍÑT/EXT IN
Inputs mternal/
external speed con
trol select signal
Internal. LOW level
(0 V)
External: HIGH level
(3.0 V or more)
NN
open terminal
PP + 15Vsupplv OUT
Máximum: 50 mA
voltage
RR 0 V terminal
SS <•5 V supply OUT
Máximum: 50 mA
voltage
TT
Main unit GNO
37
