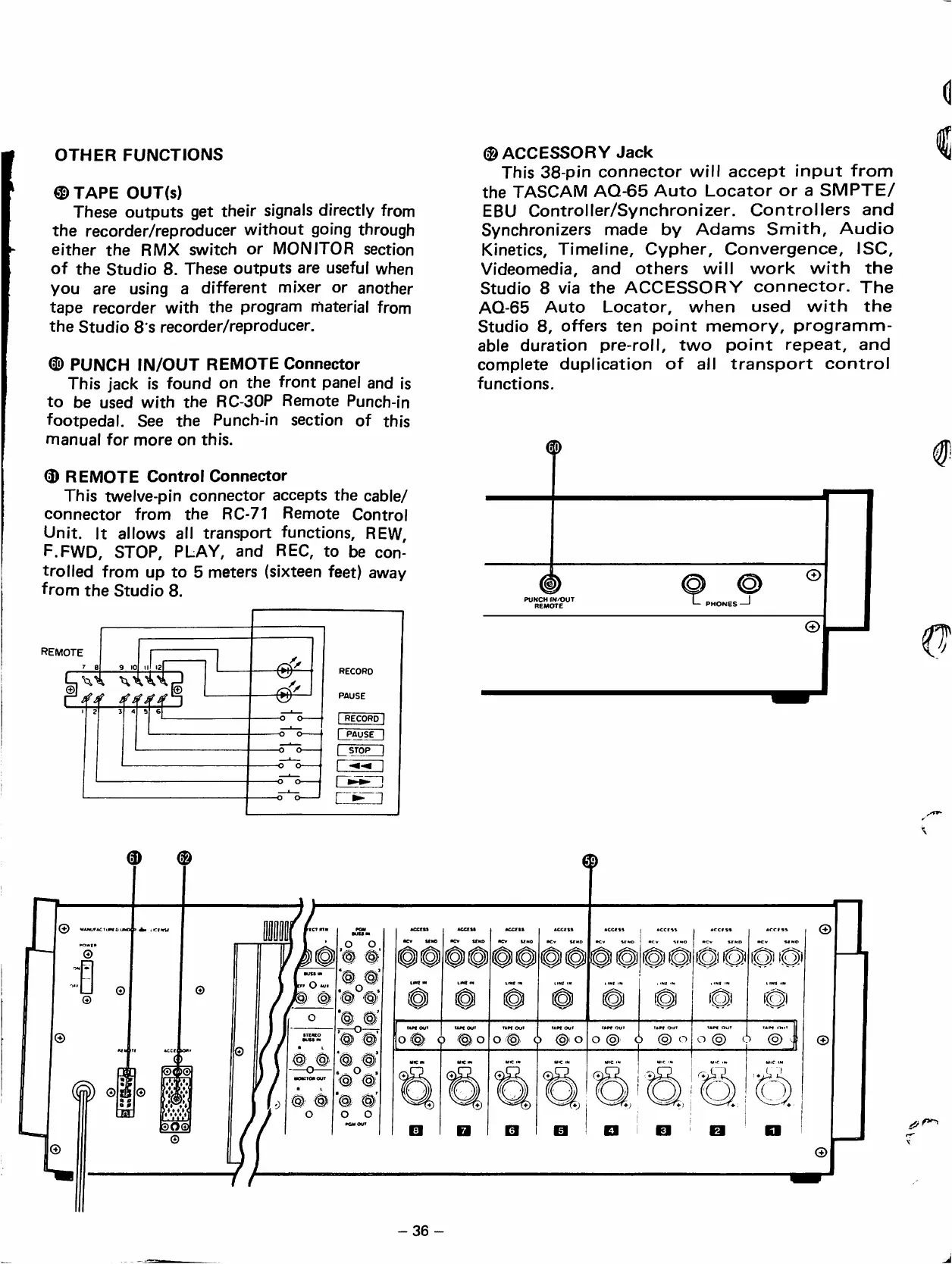

OTHER FUNCTIONS
© TAPE OUT(s)
These outputs get their signáis directíy from
the recorder/reproducer wíthout going through
eíther the RMX switch or MONITOR section
of the Studio 8. These outputs are useful when
you are using a different mixer or another
tape recorder with the program rñaterlal from
the Studio 8's recorder/reproducer.
© PUNCH IN/OUT REMOTE Connector
This jack is found on the front panel and is
to be used with the RC-30P Remote Punch-in
footpedal. See the Punch-in section of this
manual for more on this.
(3) REMOTE Control Connector
This tweive-pin connector accepts the cable/
connector from the RC-71 Remote Control
Unit. It allows all transport functions, REW,
F.FWD, stop, PLAY, and REC, to be con-
trolled from up to 5 meters (sixteen feet) away
from the Studio 8.
remote
RECORD
RECORD I
PAUSE I
©
KtH
•UUW
o o
# #'
0
'# 0
'# 0
Cf O AUI
§) @
O
# #
'0 0
wowrrOMOvr
'# #'
(§) @
o
0
o o
PCMOUT
©ACCESSORY Jack
This 38-pin connector will accept input from
the TASCAM AQ-65 Auto Locator or a SMPTE/
EBU Controller/Synchronizer. Controllers and
Synchronizers made by Adams Smith, Audio
Kinetics, Timeline, Cypher, Convergence, ISC,
Videomedia, and others will work with the
Studio 8 via the ACCESSORY connector. The
AQ-65 Auto Locator, when used with the
Studio 8, offers ten point memory, programm-
able duration pre-roll, two point repeat, and
complete duplication of all transport control
functions.
PUKCH IN/OUT
REMOTE
(f
O) (Q
P3 (Q
D) CQ
O) CQ
©
©
©
