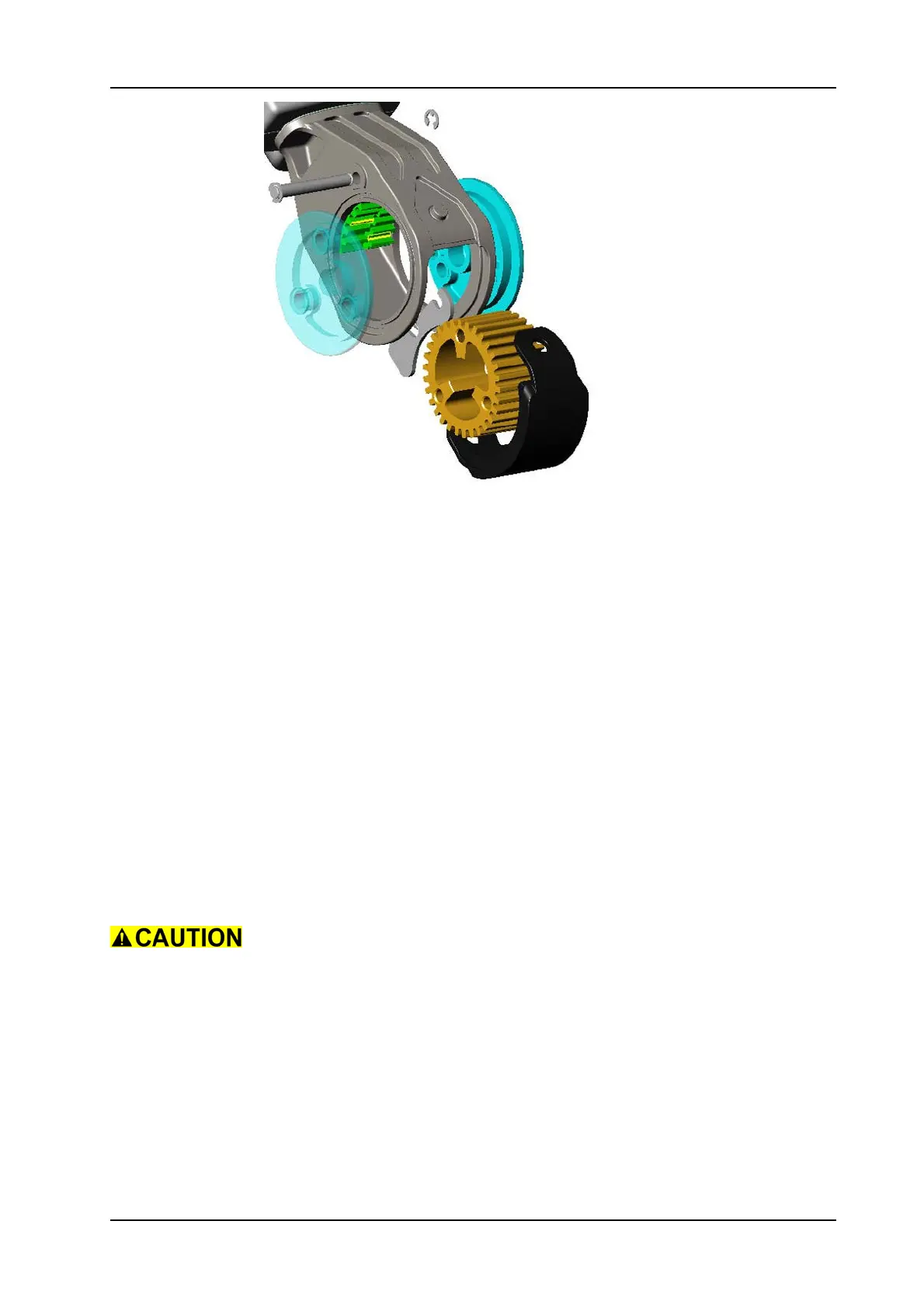

Picture 14: Articulation detail
• Mount the retaining washer onto the axle
• Mount the distance disc between the two toothrockers on the
axle.
Service
Lubricate the toothrockers with grease (07/131).
• Mount the eccentric shaft together with the end bolt of the
bowden cable according to chapter MOUNTING OF HANDLE
ADJUSTMENT LEVER.
• Position the toothed wheel into the articulation.
• Mount the two sustaining discs.
• Mount the cover onto the articulation.
Remarks
For an easier mounting, position the holes of the sustaining disc and
toothed wheel in one line.
Make sure that the O-ring is correct positioned.
