GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-14
Copyright © 2013, Diversey Inc.
05.10.24 handle - toothrocker - 455B_V1.00.fm

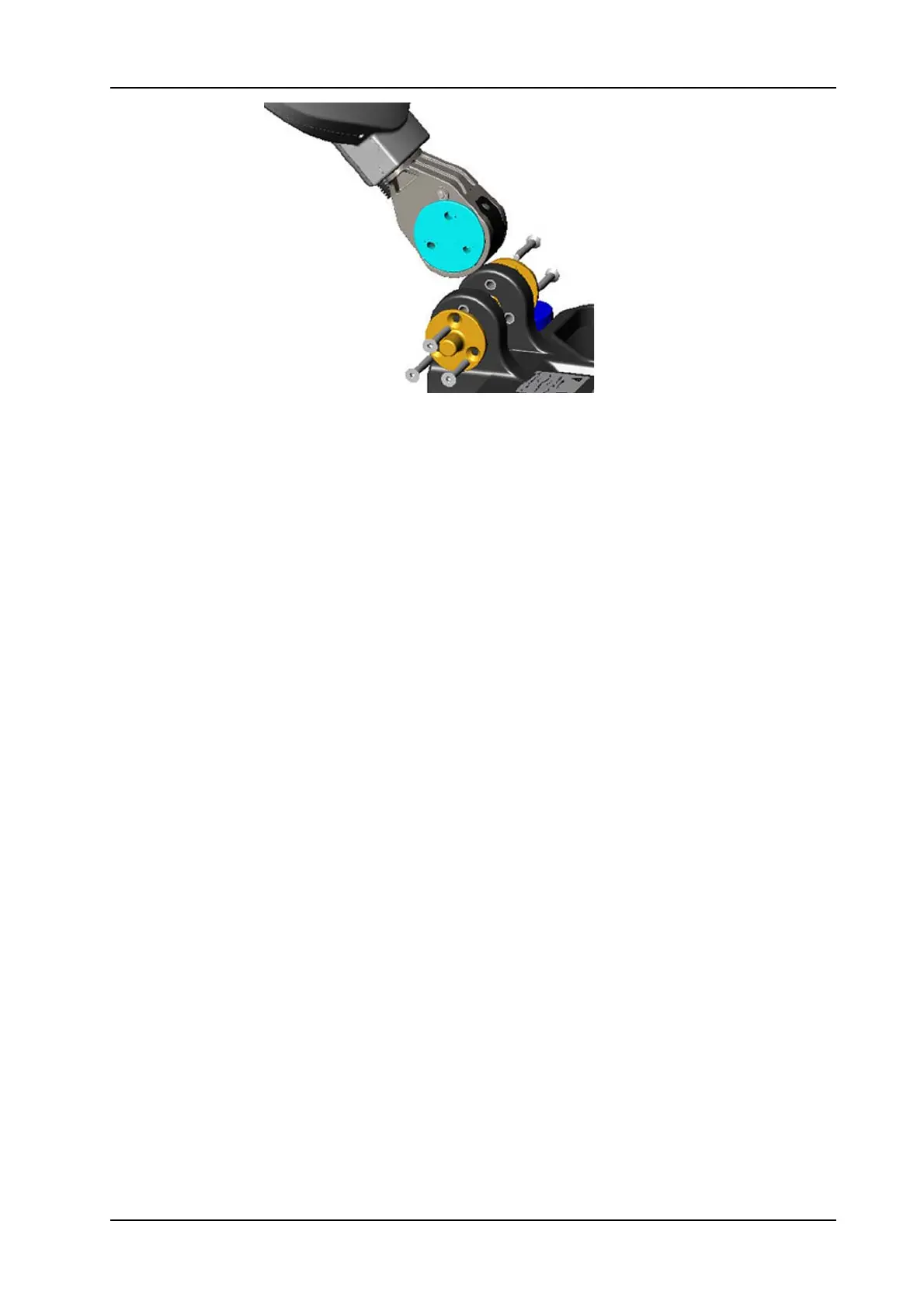

Picture 15: Sustaining disc
• Mount the articulation onto the tank.
• Position the two cover discs.
• Mount the 6 screws.
• Mount the handle cover according to chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
Adjustment
Tighten the 6 screws with 15 Nm.
• Mount the tank cover.
• Connect the two flexible hose on to the tank cover.
