Steering
Page 50
E-451 & E-457
ME-45X-01

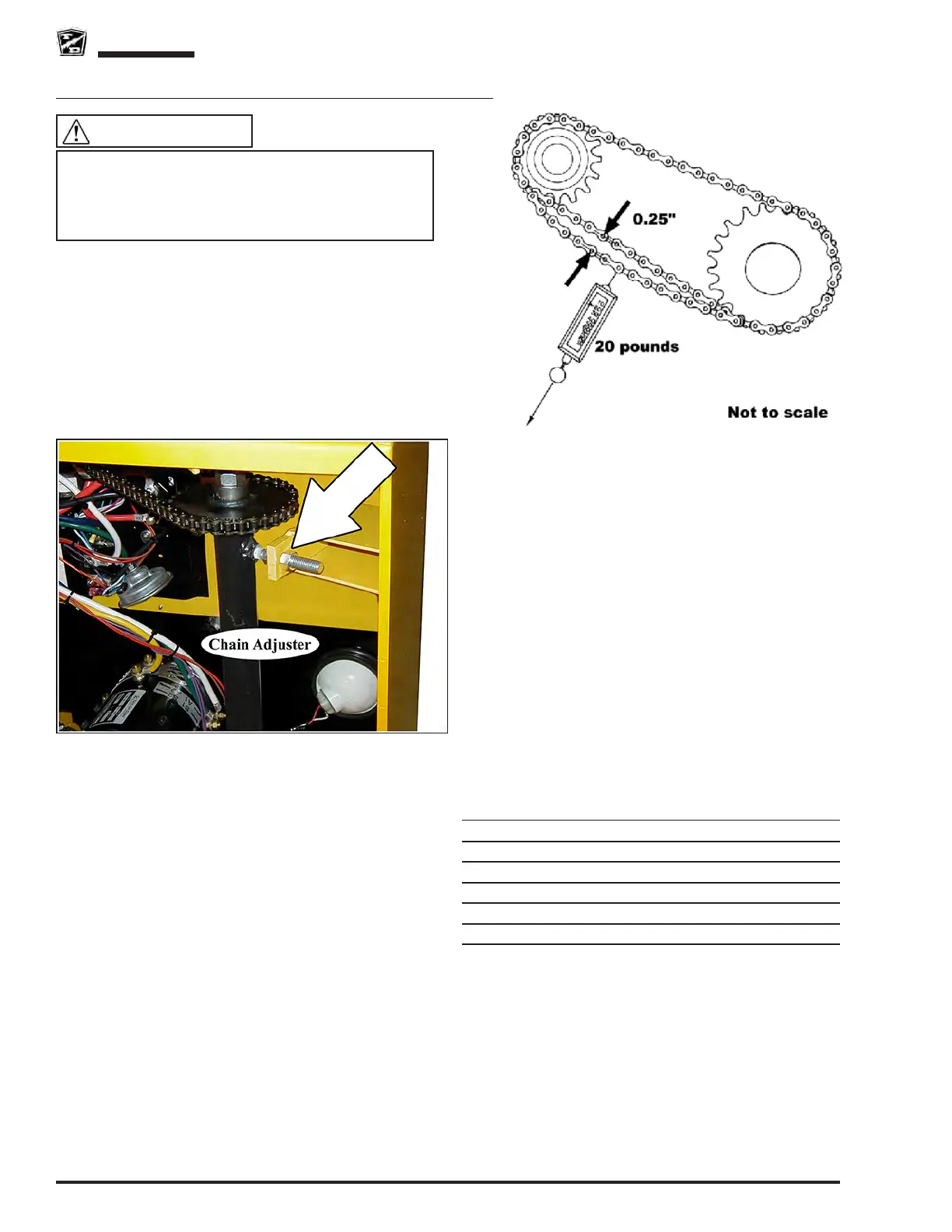

ADJUST STEERING CHAIN
1: Loosen chain adjuster locking nuts (see illustration).
2: Using the chain adjuster, tighten the steering so that it
deects approximately 1/4” with 20 pounds of force (see
illustration).
3: Tighten the chain adjuster locking nuts.
4: Reconnect the battery.
5: Remove the blocks from behind the wheels.
6: Test drive the vehicle.
This section is one section of a complete service
manual. Before starting any procedure, read all
warnings and instructions that are located in the
Service Guidelines chapter.
WARNING
HARDWARE TORQUE
Description Foot Pounds Newton Meters
Ball Joint Clamp 28-32 37.9-43.4
Rod End Stud Nut 20-25 27.1-33.9
Rod End Jam Nut 20-25 27.1-33.9
Ball Joint Castle Nut 40-45 54.2-61
Steering Wheel Nut 28-32 38-43
