Replacement Parts
Page 98 ME-45X-01
E-451 & E-457

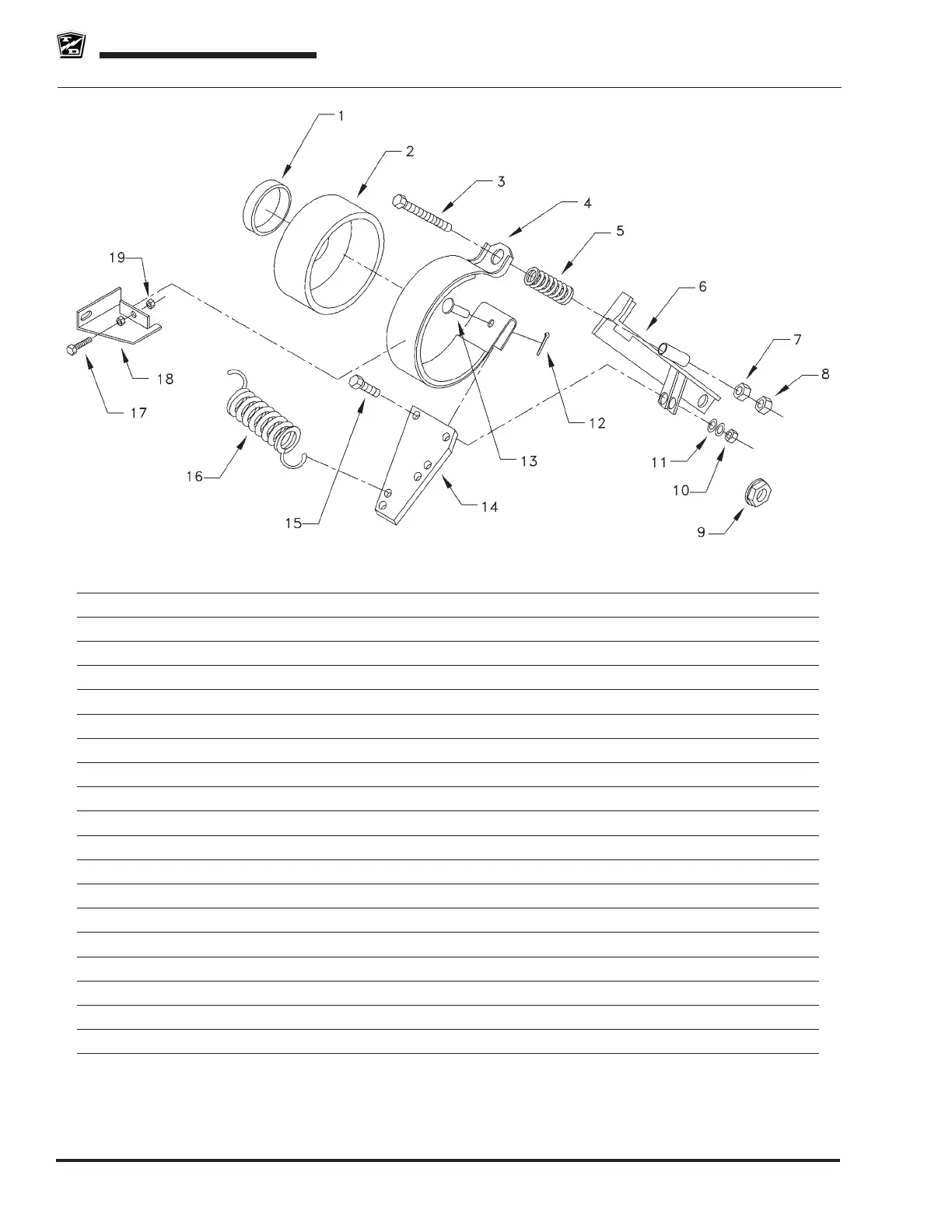

BRAKE
ITEM # PART # DESCRIPTION QTY
1 45-331-00 Pinion Seal 1
2 41-352-00 Brake Drum 1
3 96-245-10 Brake Adjusting Bolt 1
4 41-661-60 Brake Band Kit (Incl. #’s 3, 5, 7, 8, 9, 12, 13) 1
5 85-060-20 2-1/2” Long Spring 1
6 41-372-10 Mounting Bracket 1
7 88-159-84 1/2”-20 NF Lock Nut 1
8 88-159-82 1/2” NF Hex Jam Nut 1
9 97-250-00 Pinion Nut 1
10 88-109-81 3/8” Lock Nut 1
11 88-108-61 3/8” Lock Washer 2
12 88-517-11 3/32” X 1” Cotter Pin 1
13 96-771-00 Clevis Pin 1
14 550-656-00 Brake Arm 1
15 88-101-13 3/8” X 1-1/4” NC Grade 5 Hex Bolt 1
16 85-270-00 Return Spring 1
17 88-080-13 5/16” X 1-1/4” Hex Bolt 2
18 41-371-10 Alignment Bracket 2
19 88-089-91 5/16” Hex Jam Nut 4
