Taylor-Dunn E-451 - Torque Guidelines for Standard Hardware

Hardware
Page 84
E-451 & E-457
ME-45X-01
TORQUE GUIDELINES FOR STANDARD HARDWARE
Note:Torquevaluesspeciedareforcleandrythreads.
Note: Torque value used should be for lowest grade of hardware used. If a grade 2 nut is used on a grade 8
bolt, use grade 2 torque value.

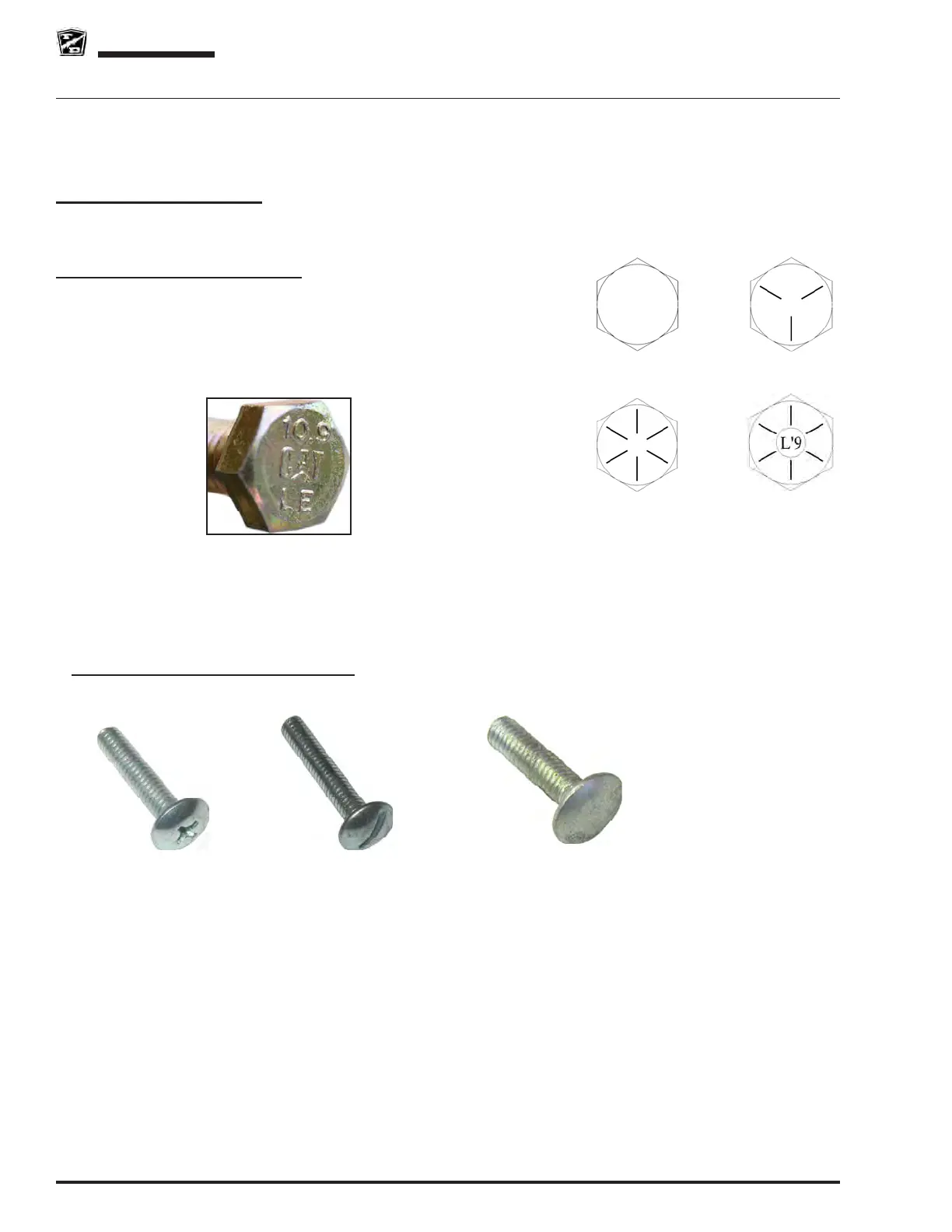

Hardware Identication
Hex Head Bolts and Screws
The grade of SAE bolts and screws are identied by markings on the head
as illustrated to the right.
The grade of a metric hex head bolt or screw is cast directly on the head.
Below is an example of a 10.9. The location and style of the text will vary.
SAE Grade 2
SAE Grade 5
SAE Grade 8 SAE Grade 9
Other types of bolts and screws
Truss Head, Grade 2
Carriage Bolt, Grade 2
