Taylor-Dunn E-451 - Brake Linkage

Replacement Parts
Page 99
* Not available at time of printing
ME-45X-01
E-451 & E-457

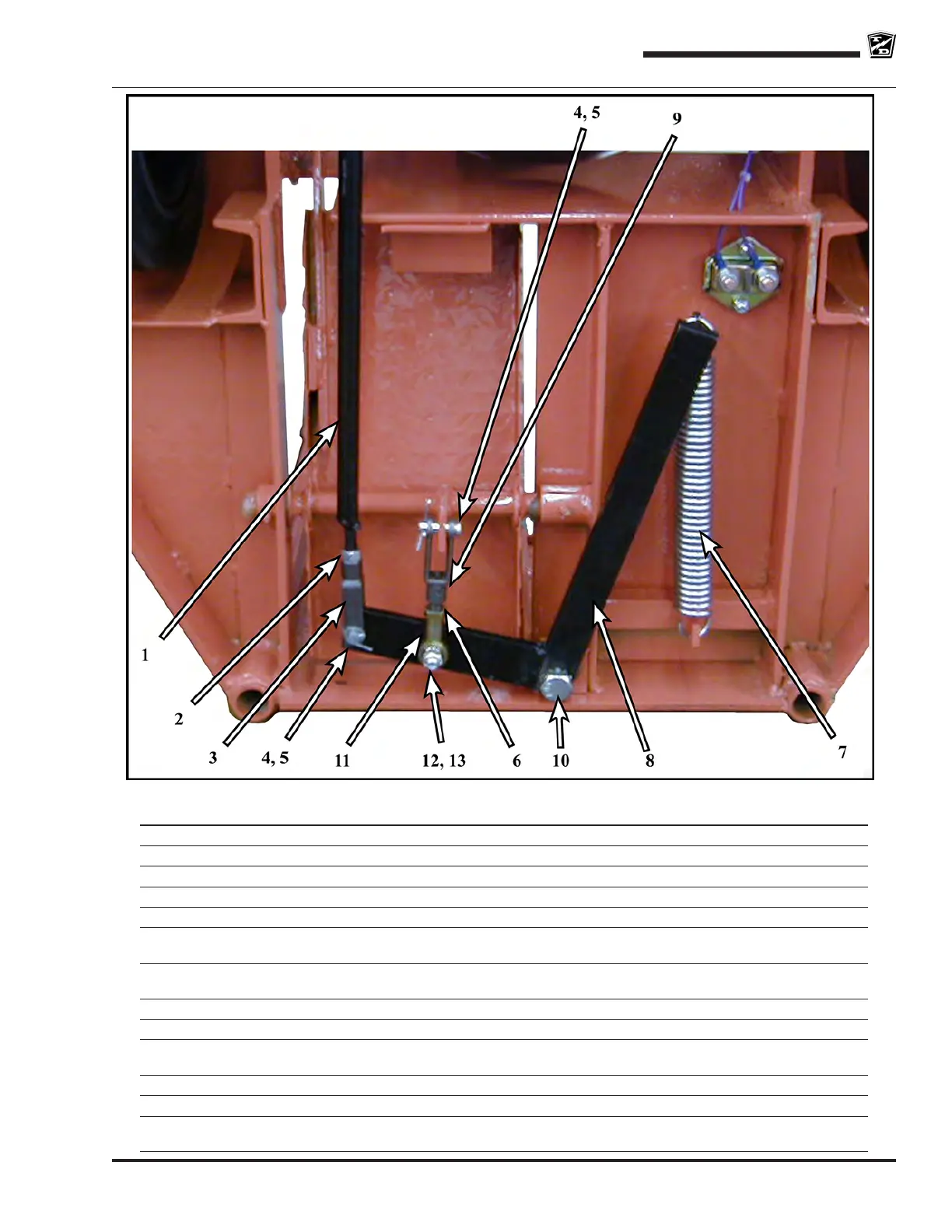

BRAKE LINKAGE
Item No. Part No. Description Qty
1 50-027-00 Brake rod 1
2 88-119-80 3/8 NF HEX HD NUT 1
3 96-762-00 Clevis 1
4 96-772-00 Clevis pin 2
5 88-527-11 Cotter pin 2
6 50-028-00 3/8 threaded rod 1
88-119-80 3/8 NF HEX HD NUT 1
7 85-282-00 Spring (E 4-51) 1
85-280-00 Spring (E 4-57)
8 50-647-00 Bell crank 1
9 96-762-00 Clevis 1
10 88-180-15 5/8 X 1-3/4 NC HEX HD SCR 1
88-188-64 Lock washer
11 86-520-00 Rod end 1
12 88-100-15 3/8 X 1-3/4 NC HEX HD SCR 1
13 88-109-81 3/8 NC LOCK NUT 1
88-108-60 3/8 CUT WASHER 2
