TC Electronic SYSTEM 6000 MKII Algorithm Manual

83

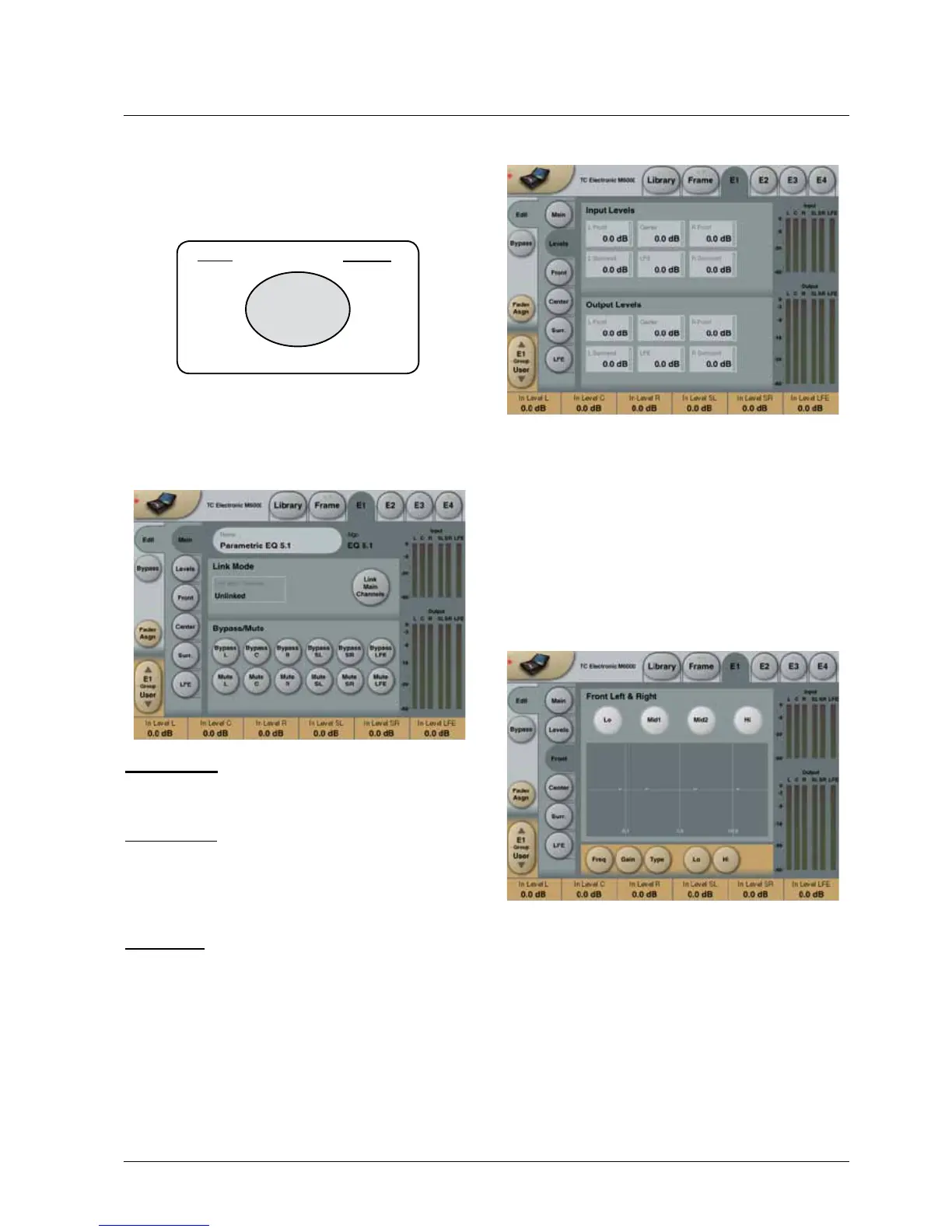

EQ - 5.1
The EQ 5.1 algorithm is a 6 channel 4-band equalizer
with various filter types available.
Main Page
Link Mode
TwolinkmodescanbeusedintheEQ5.1algorithm.
LinkedorUnlinked.
Unlinkedmode:
EnablesseparatehandlingofLo,Mid1,Mid2andHi
frequency areas for the 4 channel groups:
• L/RFrontchannels • L/Rchannels
• Centerchannel • LFEchannel
Linkedmode:
Press Link Main Channelstolinkthe5mainchannels.A
“pop-up”displaywillaskwhetheryouwishtocopysettings
fortheCenterchanneltotheFrontandSurroundchannels.
Whenlinked,theLo,Mid1,Mid2,andHifrequencyareas
arecontrolledwithonlyonesetofhandles.TheLFE
channel however, is still treated separately.
Bypass/Mute
Bypass and Mute function for each of the 6 channels.
Levels Page
Input Levels
Range: -100 to 0dB
Input level control for each of the 6 channels.
Output
Range: -100 to 0dB
Output level control for each of the 6 channels.
Front/Center/Surr./LFE pages
Press Front/Center/Surr. or LFE (side fane) to access
parameters for each of the channel groups.
Basic operation
• PresskeysLo, Mid1, Mid2 and Hi to activate/deactivate
 theEQbands.
• SelectFreq,Gain,TypeorLo/Hitoaccessallfour
parameters on individual bands.
• PressBypass EQ to bypass all four bands.
The EQ 5.1 algorithm occupies:
@ Normal Sample Rate : 1/4 DSP Resource
@ Double Sample Rate : 1/4 DSP Resource
Algorithm Inputs/Outputs are distributed as follows:
E1 - E4
L
R
C
LFE
SL
SR
L
R
C
LFE
SL
SR
INPUT
OUTPUT
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
