MP00000B00 V_2.6

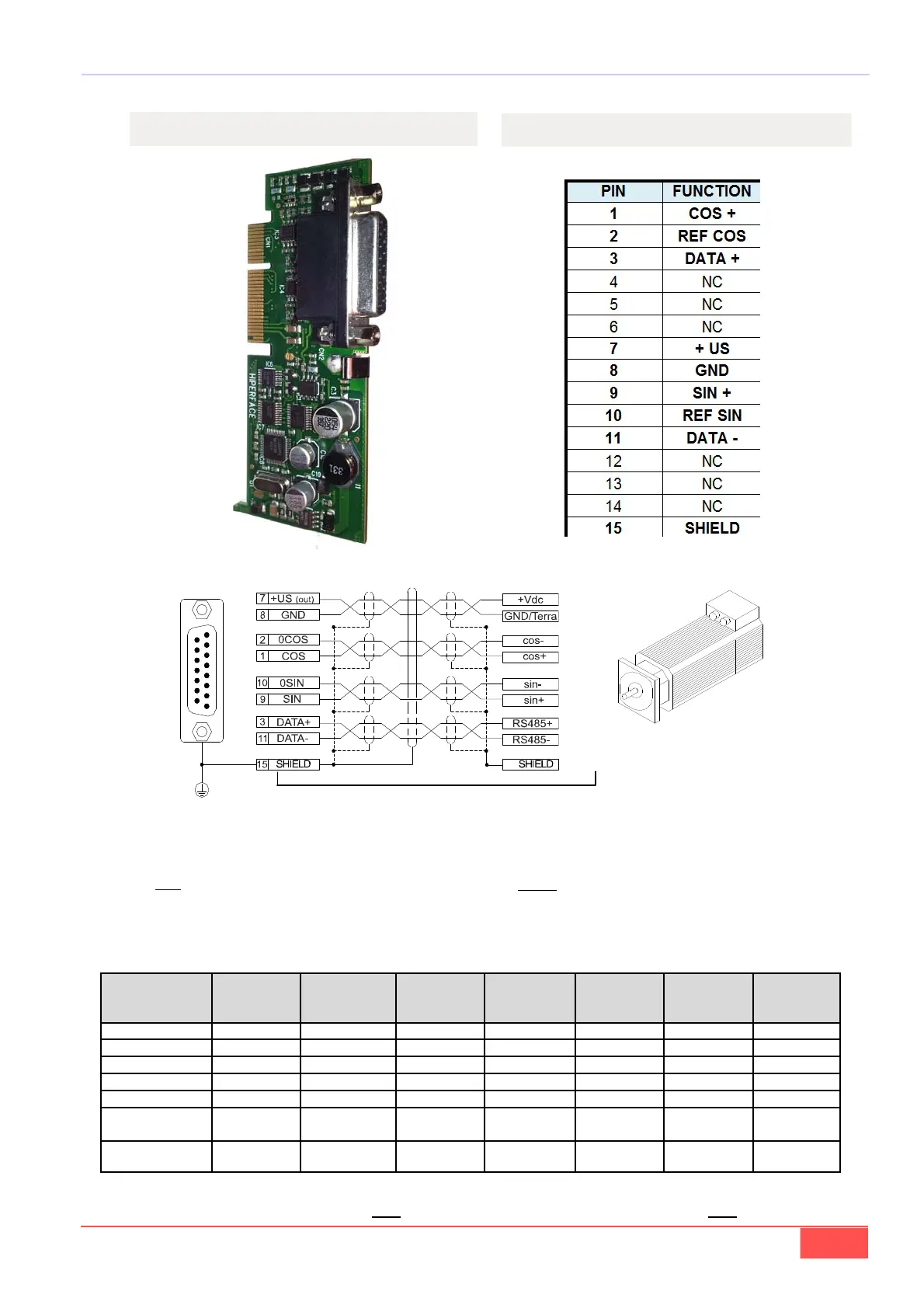

5.3.9 – HIPERFACE
5.3.9 – HIPERFACE
-Cablare connettore maschio 15 vie
-Cabling 15-way connector male
COLLEGAMENTI CAVO DRIVE/MOTORE
MOTOR/DRIVE CABLE CONNECTIONS
Hiperface
Model
Absolute
Position
Resolution
Multi-turn
Revolutions
(MT)
N of sin/cos
periods per
Rev
Speed Sensor
C00
ST_BIT_
NUMBER
C87
MT_BIT_
NUMBER
C88
ENC_PPR
P69
SRS50 32768 (15b) / 1024
7 15 0 1024
SRM50 32768 (15b) 4096 (12b) 1024
7 15 12 1024
SKS36 4096 (12b) / 128
7 12 0 128
SKM36 4096 (12b) 4096 (12b) 128
7 12 12 128
SEK90 2048 (11b) / 64
7 11 0 64
SEK37
SEK52
512 (9b) / 16
7 9 0 16
SEL37
SEL52
512 (9b) 4096 (12b) 16
7 9 12 16
La tensione di alimentazione del sensore (+US) viene
generata internamente dal drive (circa 9V).
- Usare solo cavo a doppini intrecciati e schermati
singolarmente più schermo esterno.
Ad oggi sono gestiti i sensori:
The supply voltage of the sensor (+US) is internally
generated by the drive (about 9V).
- Only use 4-couples twisted and shielded couple ca-
ble with external shield.
Up today sensors managed are:
cod. 274S002020VV
Qualsiasi manovra va effettuata solo a drive spento! / Any operation must be done only to drive off!
