NOTE
Start condition: Assume power supply output is on; Initial voltage point is 0 Volts.
NOTE
Arbitrary waveforms can be easily created by using the Waveform Creator application available on
TDK-Lambda Web-Site. Refer to Quick Start Guide documentation on TDK-Lambda Web-Site.
5.3.5 WAVE Mode Example
VOLT:MODE WAVE
Select Sequence Mode
WAVE:VOLT 2,4,4,9,9,3,3
Set voltage values ”2,4,4,9,9,3,3” Volts
WAVE:TIME 1,0.5,0.5,0.5,0.5,1.5,1.5
Set time values ”1,0.5,0.5,0.5,0.5,1.5,1.5” Seconds
STEP AUTO
Set AUTO step execution mode ”AUTO”
COUN 1
Set wave execution iterations ”1”
TRIG:SOUR BUS Select BUS trigger source via communication
interface or front panel
INIT:CONT OFF
Trigger system is enabled for a single trigger action
INIT
Trigger initialize
*TRG
Trigger command

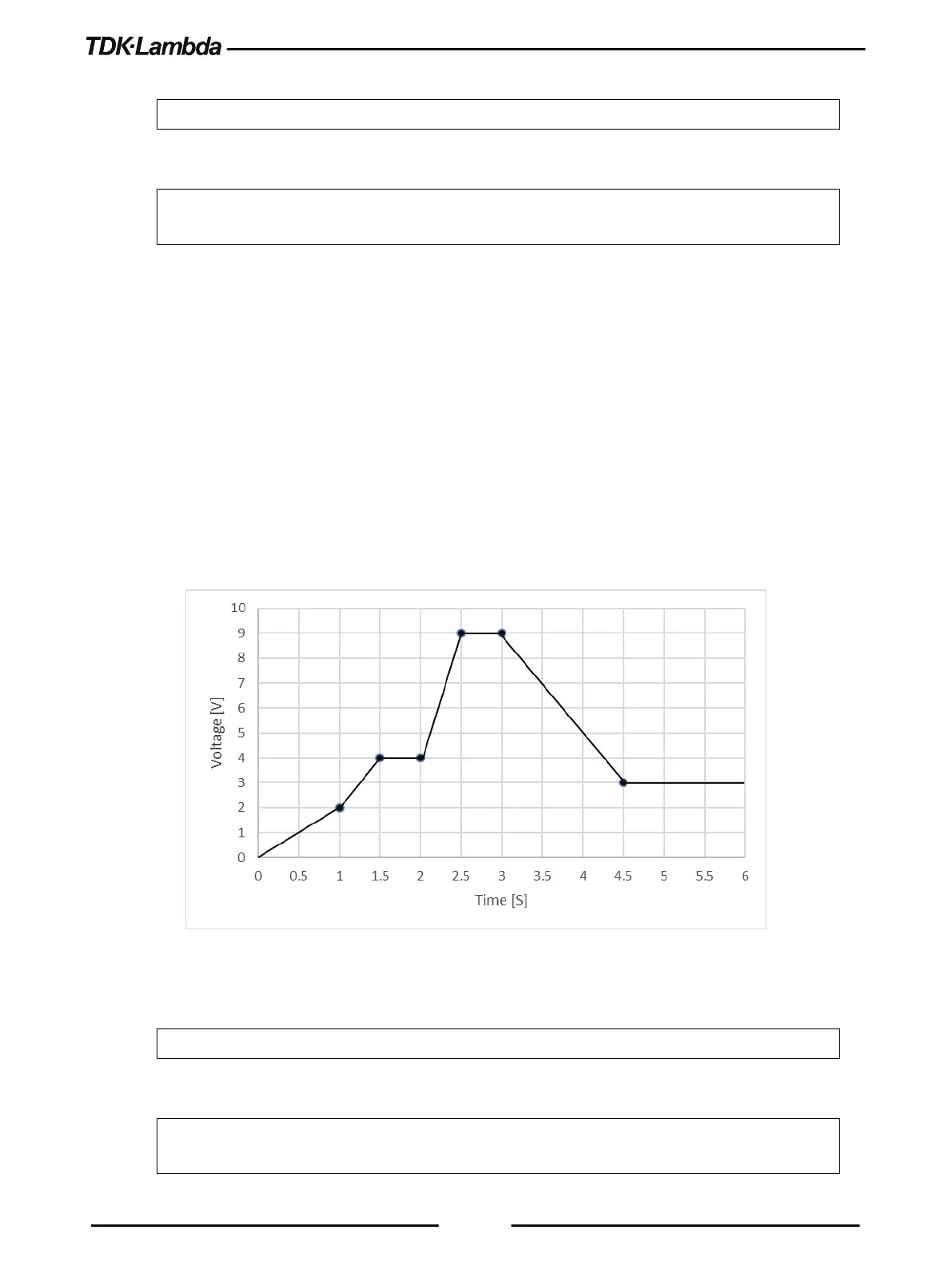

Figure 5–6: WAVE Mode Example
NOTE
Start condition: Assume power supply output is on; Initial voltage point is 0 Volts.
NOTE
Arbitrary waveforms can be easily created by using the Waveform Creator application available on
TDK-Lambda Web-Site. Refer to Quick Start Guide documentation on TDK-Lambda Web-Site.
