4. Gas Control Module (Enhanced)
66 IFU for Infinite 200 PRO No. 30052730 Rev. No. 1.6 2016-04
6. Attach the included AC plug to the power adapter and plug in the adapter
into an uninterruptable power outlet (100-240 V, 50/60 Hz). A green light on
the power adapter indicates that it is working (see Figure 30, below).

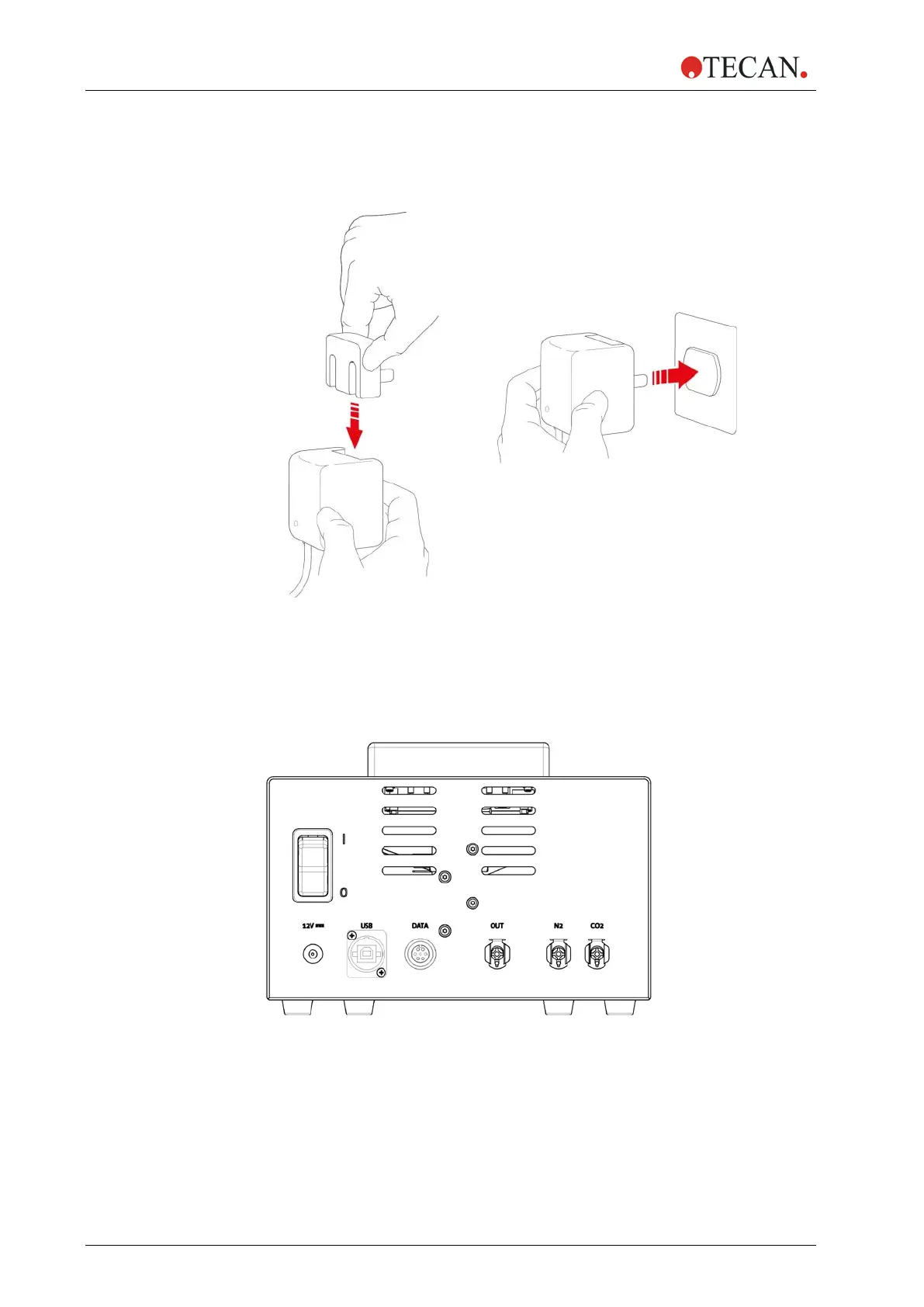

Figure 30 Power Plug 12 V (Power cable for gas control module)
7. Connect the power cord of the adapter to the 12V power socket on the rear
of the gas control module (see Figure 31, below).
Figure 31
8. Switch on the GCM only after cables and tubes are connected.
