Page 28
17
Getting S
tarted
17.1
Assembly
➢

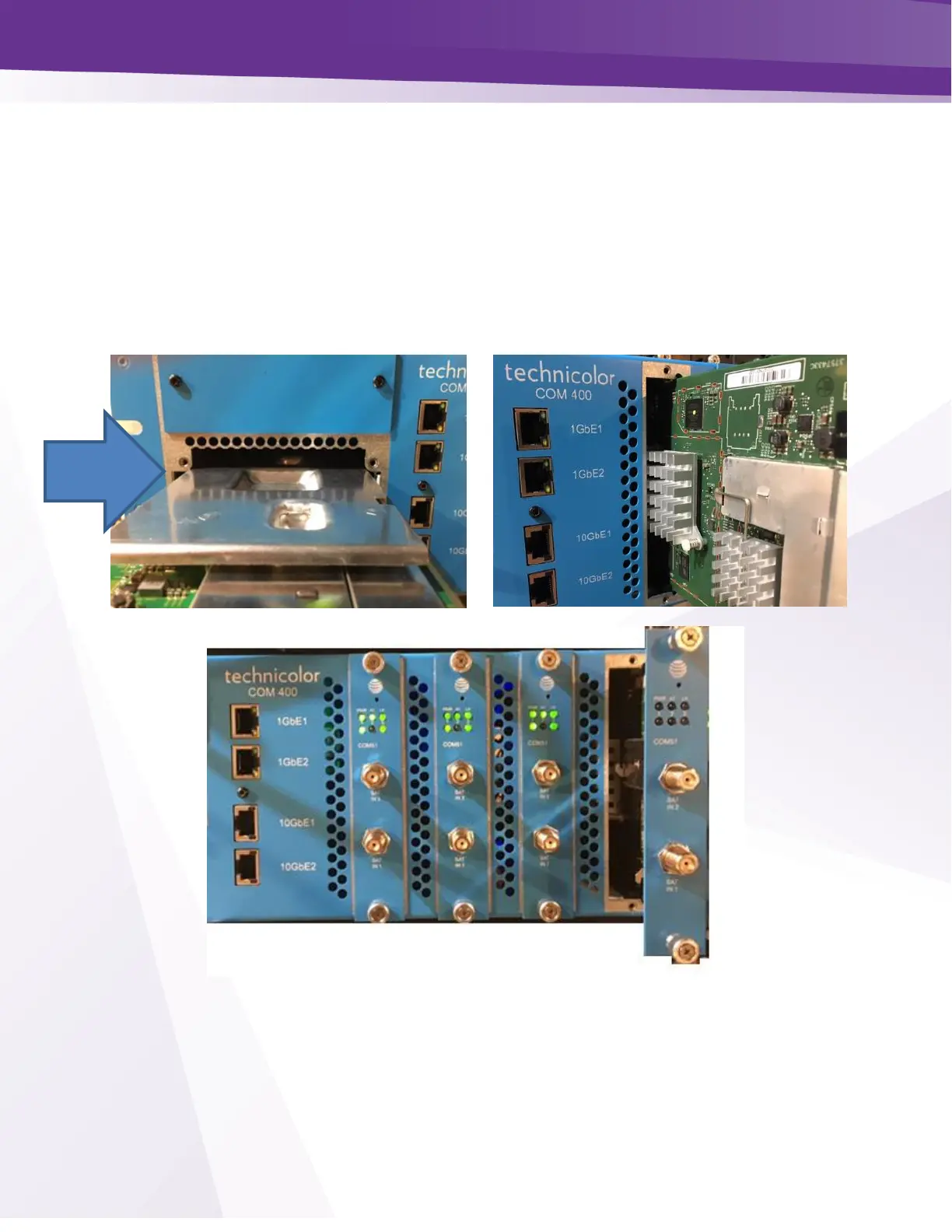

Carefully unpack and
install the QA
M
20
and C
OM51 cards in the C
OM400 Chassis
as shown in
Figure 7
.
Be sure to lin
e up the cards with
the guides in
the chassis.
➢
After inserting the C
OM51 card
finger tighten the
two thumb screws to
secure the card in th
e
chassis.
➢
QAM20 should
mount in the lo
wer QAM port of
the chassis
➢
A #10 Torx driver
is require
d to secure the QAM20 in
the COM400 chassis.
Figure 7 - Installation of the QAM20 and COM51
Lower
Port
27
29
