Page 77
32.1
Guide.XML Overview
Technicolor has developed an interactive guide feature that wor
ks exclusivel
y
with the
DCI401MCS set back box.
➢
DCI401MCS must b
e running software
version 01.22.11 or n
ewer.
Setup is similar to the instructions for EPG.
➢
Leave the IP field s
et to 1.2.3.4
➢
Click on Guide.XML
to load an
d customize the guide a
s described in
EPG Overview.
➢

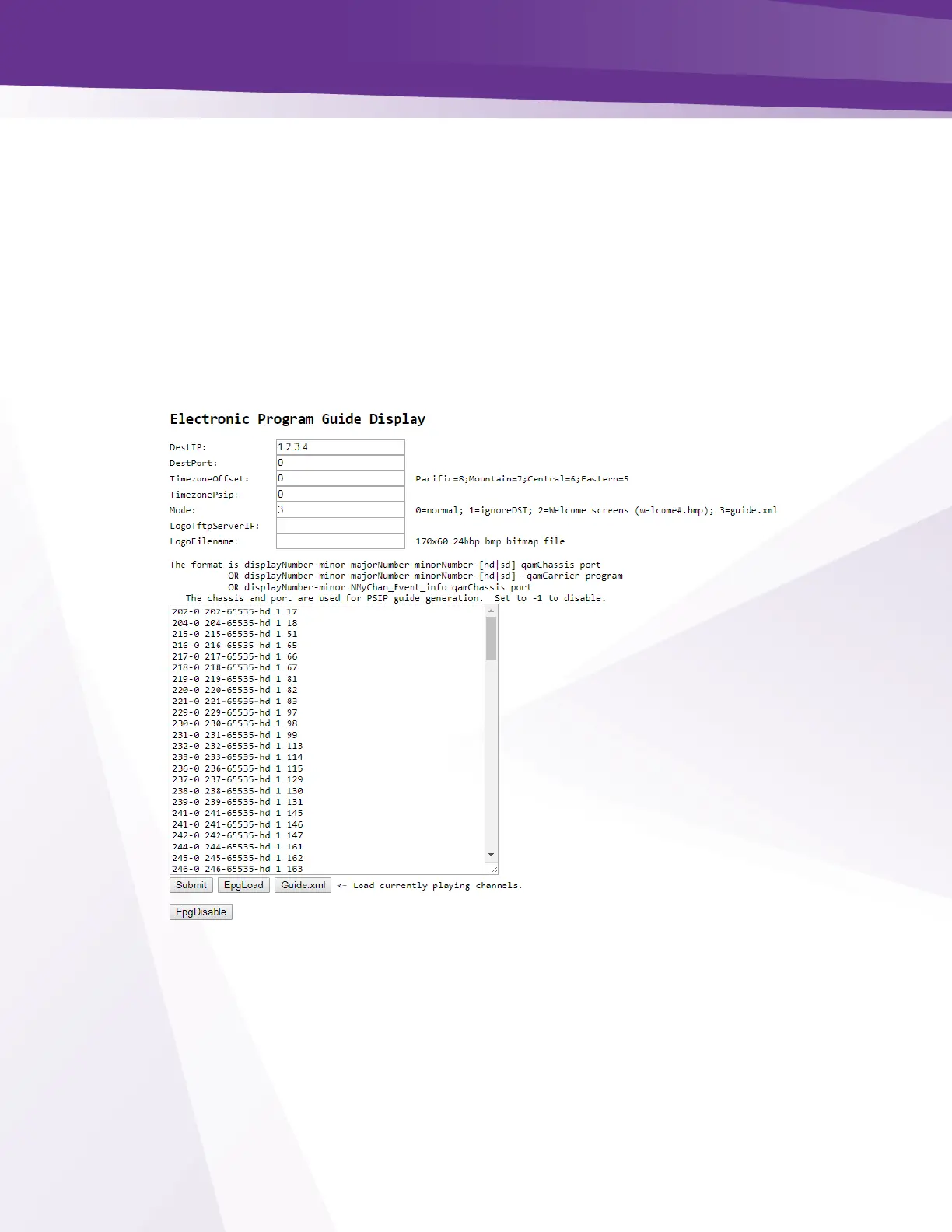

Set the Mode to 3
as shown below in Figu
re
53
:
Figure
53
- IPG Setup Page
