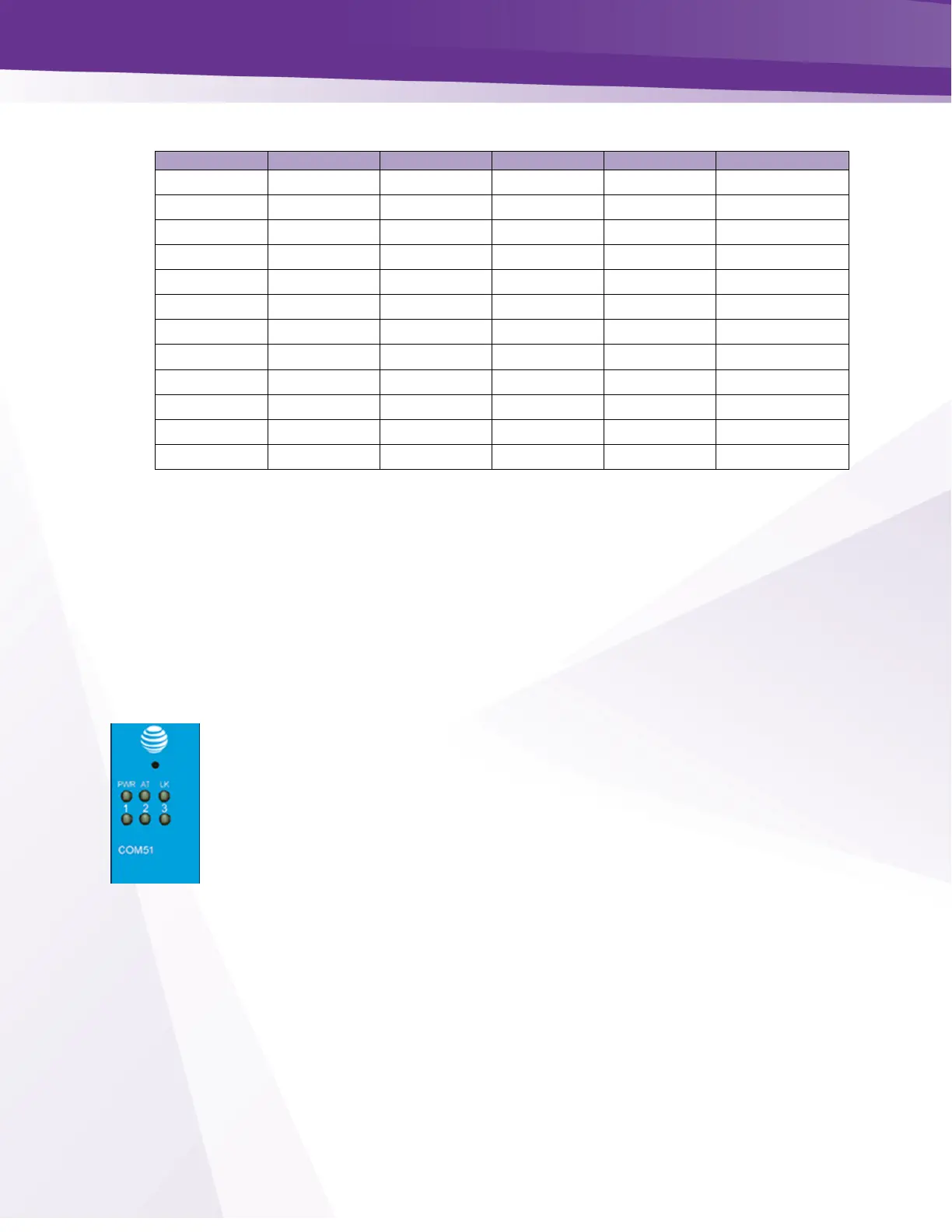

Page 30
17.4
Chassis Dipswitch Settings
Chassis ID
Switch 1
Switch 2
Switch 3
Switch 4
Default IP Slot 1
1
UP
DOWN
DOWN
DOWN
192.168.3.18
2
DOWN
UP
DOWN
DOWN
192.168.3.34
3
UP
UP
DOWN
DOWN
192.168.3.50
4
DOWN
DOWN
UP
DOWN
192.168.3.66
5
UP
DOWN
UP
DOWN
192.168.3.82
6
DOWN
UP
UP
DOWN
192.168.3.98
7
UP
UP
UP
DOWN
192.168.3.114
8
DOWN
DOWN
DOWN
UP
192.168.3.130
9
UP
DOWN
DOWN
UP
192.168.3.146
10
DOWN
UP
DOWN
UP
192.168.3.162
11
UP
UP
DOWN
UP
192.168.3.178
12
DOWN
DOWN
UP
UP
192.168.3.194
18
System P
ower Up
Once assembled and connected to RF distribution power up the
COM3000
by plugging in the
power cord. There is no external power switch.
18.1
System startup LED Behavior
The COM51 card has
6 LEDs on th
e front panel the t
op three are:
➢
PWR
–
Displays solid green w
hen card is powered
➢
Activity
–
Flashes green when t
here is IP activity b
etween the chassis and card
➢
Link
–
Displays solid green ind
icating the card is connected t
o the chassis backp
lane
The bottom three LED
s are Bottom th
ree are operational in
dicators as described in
sections 18.2
and 18.3
29
31
