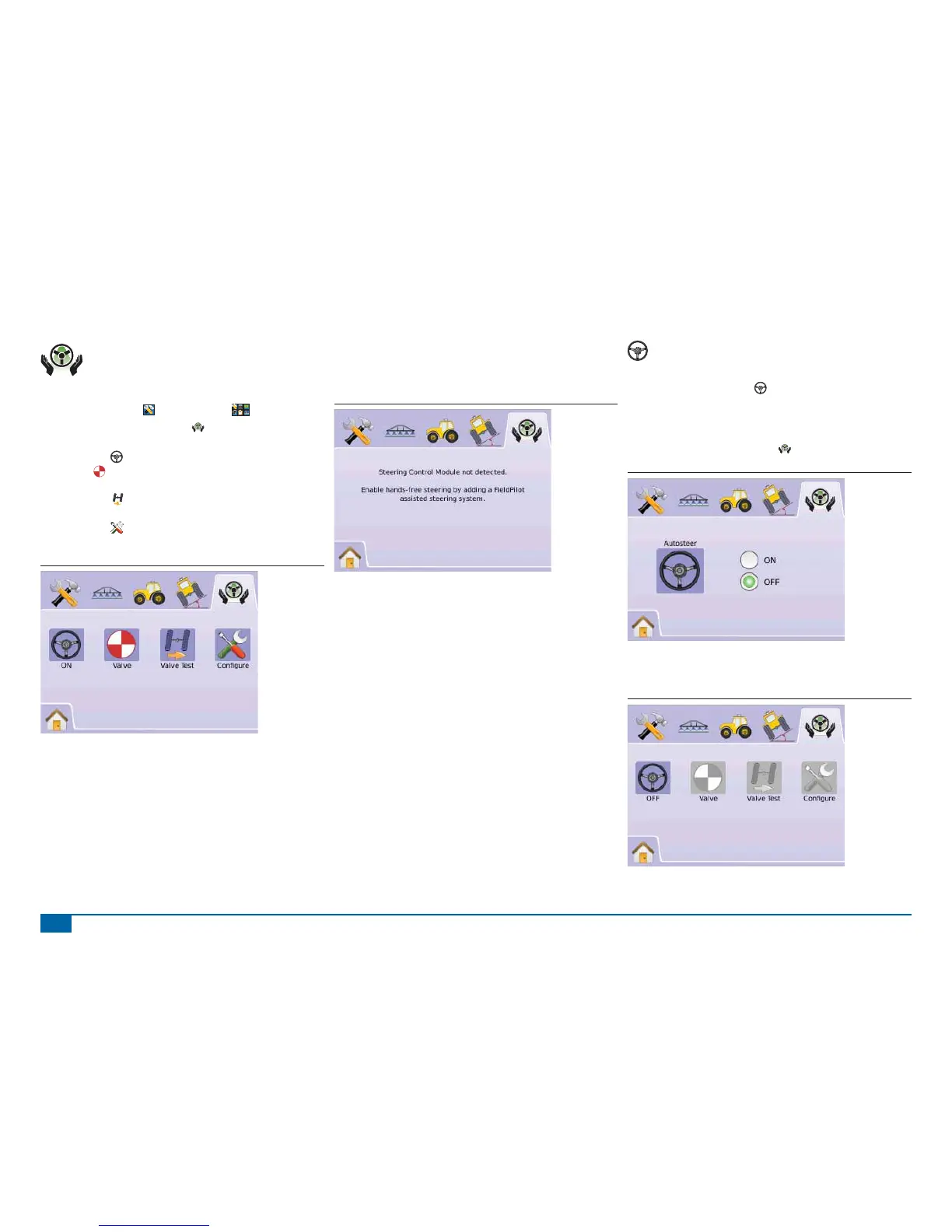

FIELDPILOT SETUP
FieldPilot Setup is used to Enable/Disable FieldPilot
and confi gure Valve Setup, Valve Test and Confi gure
FieldPilot.
1. Select UNIT SETUP
from Home Menu .
2. Press FIELDPILOT SETUP TAB .
3. Select from:
►Autosteer – sets FieldPilot to on or off
►Valve – used to confi gure Valve Frequency, Minimum Duty
Cycle Left, Minimum Duty Cycle Right and Maximum Duty Cycle
►Valve Test – verifi es steering is directed correctly and is
used to fi ne tune the oil fl ow
►Confi gure – used to confi gure Coarse Adjustment, Fine
Adjustment, Deadband and Lookahead
Figure 2-59: FieldPilot
FieldPilot Unavailable
If a FieldPilot system is not installed, calibration options will not be
available.
Figure 2-60: Assisted Steering Not Detected
Autosteer
Autosteer sets FieldPilot to on or off.
1. Press AUTOSTEER ICON
.
2. Select
►On
►Off
3. Press FIELDPILOT SETUP TAB to return to FieldPilot Setup.
Figure 2-61: Autosteer On/Off
If “Off” is selected, no FieldPilot capabilities or setup functions will be
enabled (icons will be grayed out).
Figure 2-62: FieldPilot with Autosteer Off
