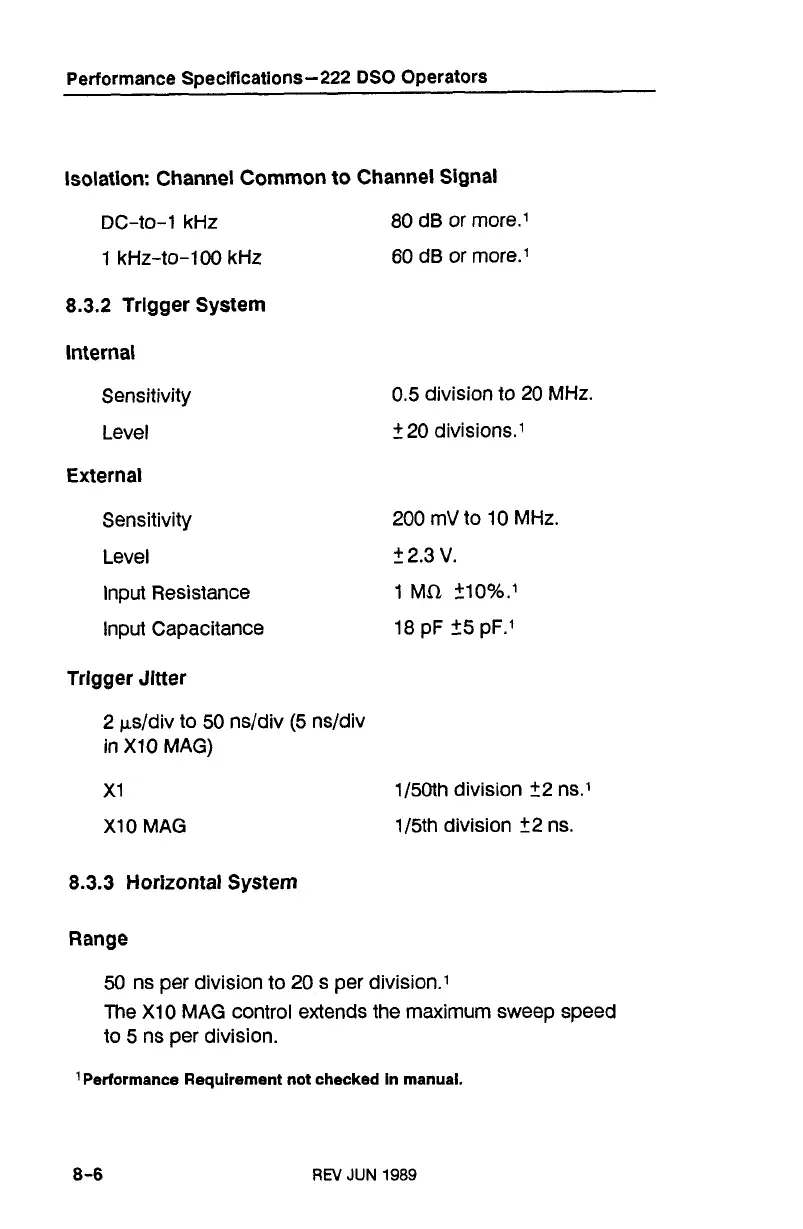

Performance Specifications-222 DSO Operators
Isolation: Channel Common to Channel Signal
DC-to-1 kHz
1 kHz-to-1 00 kHz
8.3.2 Trigger System
Internal
Sensitivity
Level
External
Sensitivity
Level
input Resistance
lnput Capacitance
Trigger Jitter
2 ~.~s/div to 50 nsldiv (5 nsldiv
in XI0
MAG)
X1
XI 0 MAG
0.5 division to 20 MHz.
2 20 divisions.1
200
mV to 10 MHz.
+ 2.3 V.
1 Ma +lo%.'
18 pF 25 pF.I
1150th division +2 ns.l
115th division
22 ns.
8.3.3 Horizontal System
Range
50 ns per division to 20 s per division.1
The XI0 MAG control extends the maximum sweep speed
to 5 ns per division.
Performance Requirement not checked in manual.
REV JUN 1989
