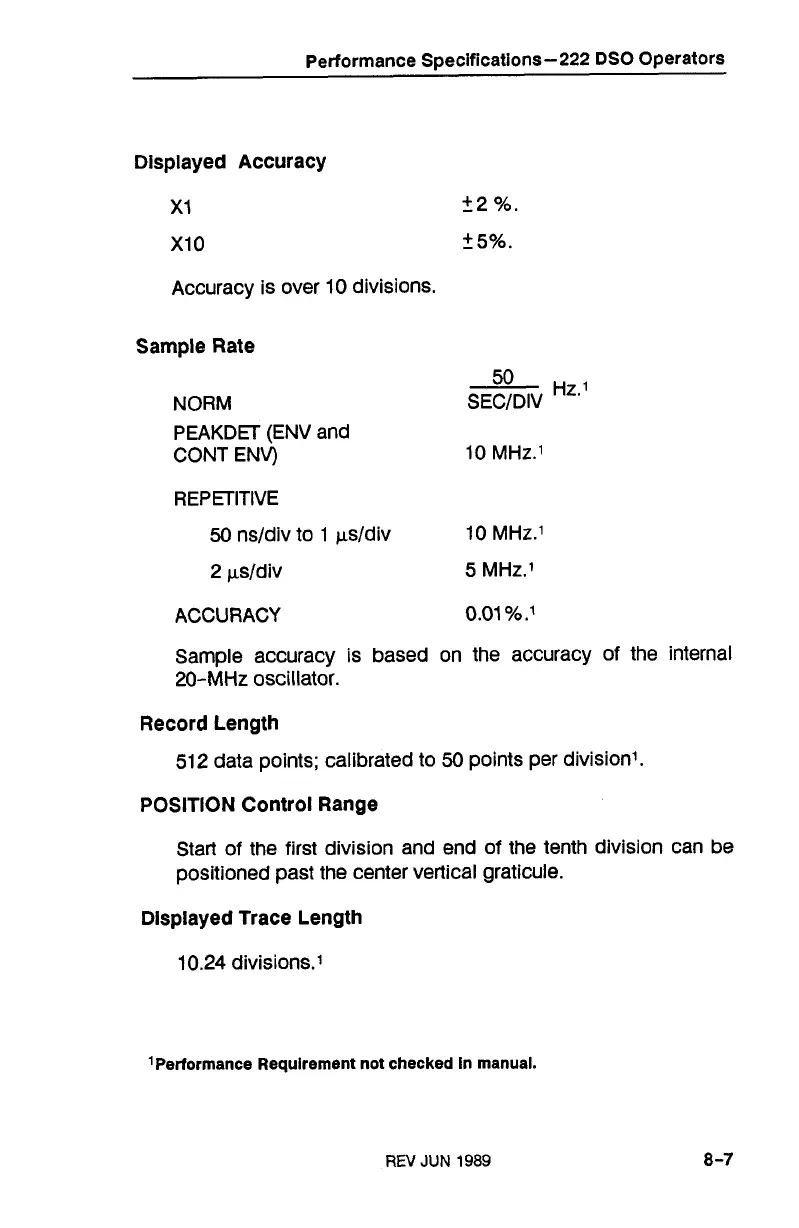

Performance Specifications-222 DSO Operators
Displayed Accuracy
Accuracy is over 10 divisions.
Sample Rate
NORM
Hz.1
SECIDIV
PEAKDET (ENV and
CONT ENV) 10 MHz.1
REPETITIVE
50 nsldiv to 1 ~sldiv
10 MHz.1
2 ~sldiv 5 MHz.1
ACCURACY 0.01
% .I
Sample accuracy is based on the accuracy of the internal
20-MHz oscillator.
Record Length
512 data points; calibrated to 50 points per divisionl.
POSITION Control Range
Start of the first division and end of the tenth division can be
positioned past the center vertical graticule.
Displayed Trace Length
Performance Requirement not checked in manual.
REV JUN 1989
