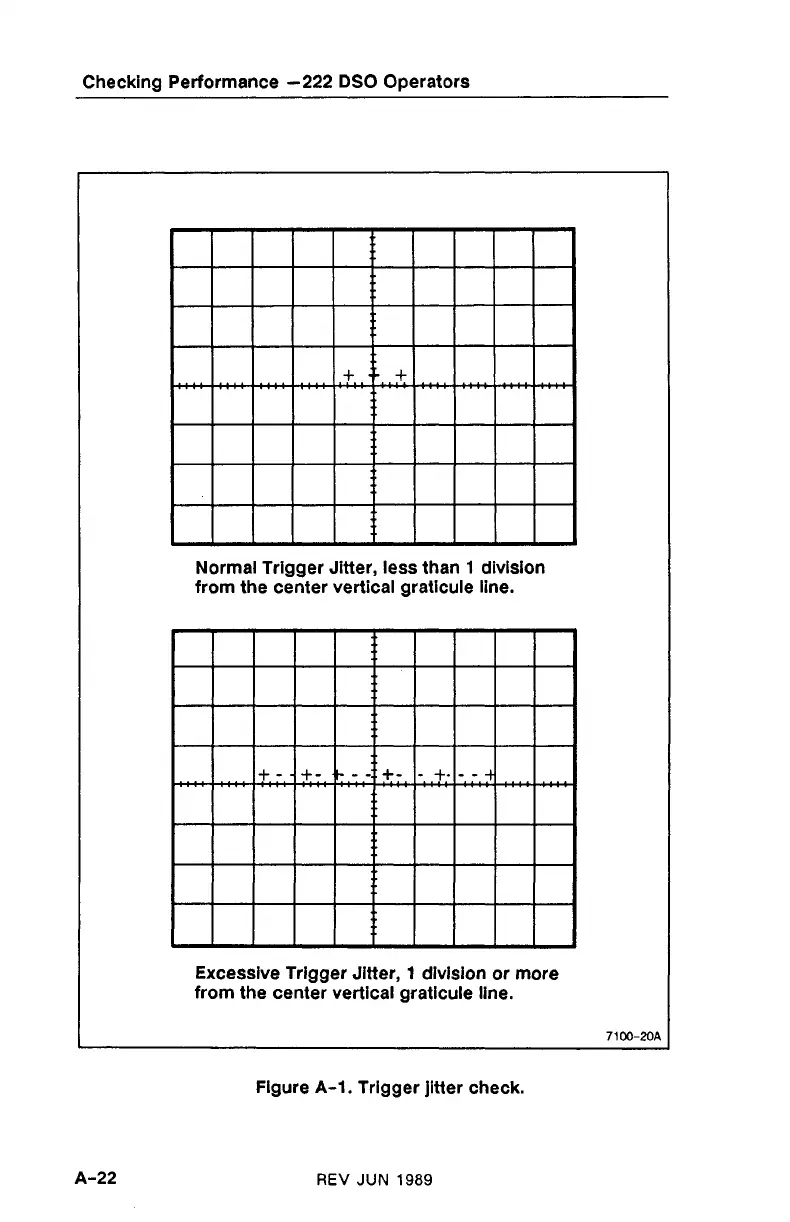

Checkina Performance -222 DSO O~erators
Normal Trigger Jitter, less than
1 division
from the center vertical graticule line.
Excessive Trigger Jitter,
1 division or more
from the center vertical graticule line.
Figure
A-1. Trigger jitter check.
REV JUN 1989
